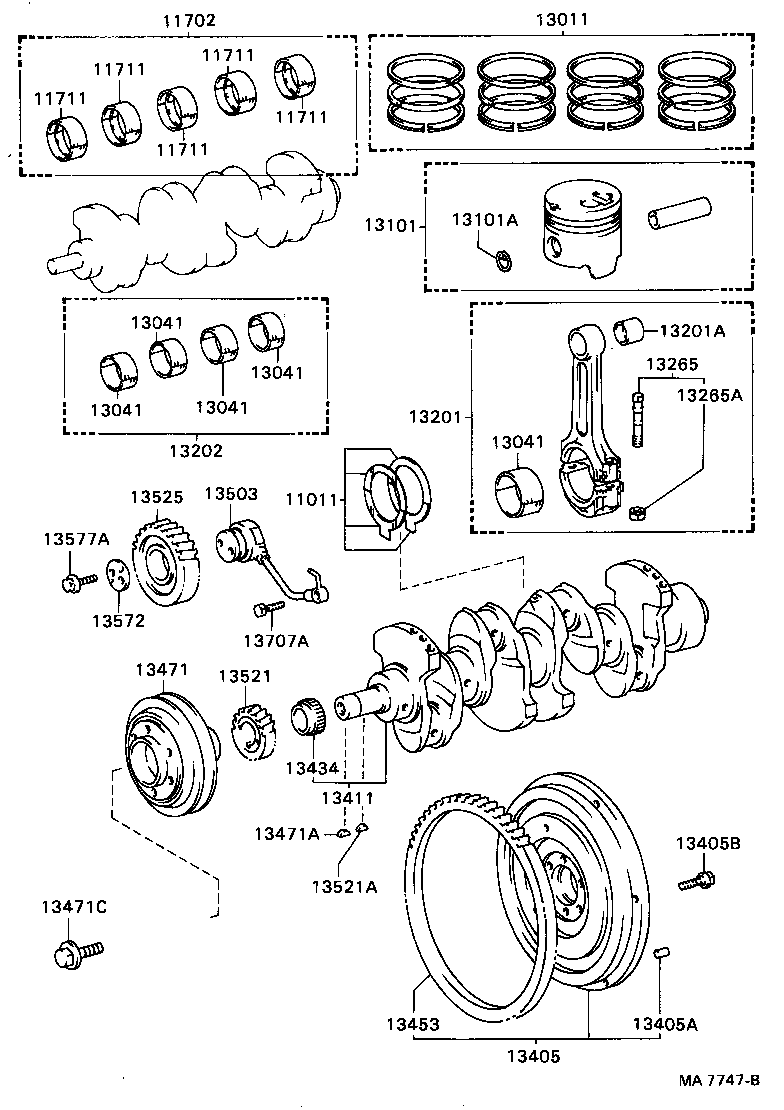

BU70LB-MD (1984)
Toyota Dyna
(8409- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-56010 |
B,11B,13B..BU6#,7#,8# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-56020 |
B,11B,13B..BU6#,7#,8# STD,STD |
1 | ||
| 11011-56010 |
B,11B,13B..BU6#,7#,8# STD,STD |
1 | ||
| 11012-56020 |
B,11B,13B..BU6#,7#,8# O/S 0.125,O/S 0.125 |
1 | ||
| 11013-56020 |
B,11B,13B..BU6#,7#,8# O/S 0.250,O/S 0,250 |
1 | ||
| 11013-56010 |
B,11B,13B..BU6#,7#,8# O/S 0.250,O/S 0,250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-56020 |
B,11B,13B..BU6#,7#,8# U/S 0.25,U/S 0.25 |
1 | ||
| 11705-56020 |
B,11B,13B..BU6#,7#,8# U/S 0.50,U/S 0.50 |
1 | ||
| 11707-56020 |
B,11B,13B..BU6#,7#,8# U/S 1.00,U/S 1.00 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5601002 |
B,11B,13B..BU6#,7#,8# MARK"2",MARK 2 |
5 | ||
| 11701-5601001 |
B,11B,13B..BU6#,7#,8# MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5601002 |
B,11B,13B..BU6#,7#,8# MARK"2",MARK 2 |
5 | ||
| 11701-5601001 |
B,11B,13B..BU6#,7#,8# MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5601002 |
B,11B,13B..BU6#,7#,8# MARK"2",MARK 2 |
5 | ||
| 11701-5601001 |
B,11B,13B..BU6#,7#,8# MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5601002 |
B,11B,13B..BU6#,7#,8# MARK"2",MARK 2 |
5 | ||
| 11701-5601001 |
B,11B,13B..BU6#,7#,8# MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5601002 |
B,11B,13B..BU6#,7#,8# MARK"2",MARK 2 |
5 | ||
| 11701-5601001 |
B,11B,13B..BU6#,7#,8# MARK"1",MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-56022 |
B..BU60,63,70,75,80 STD |
1 | ||
| 13011-56021 |
B..BU60,63,70,75,80 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5601001 |
B..BU60,63,70,75,80 MARK"1",MARK 1 |
4 | ||
| 13041-5601002 |
B..BU60,63,70,75,80 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5601001 |
B..BU60,63,70,75,80 MARK"1",MARK 1 |
4 | ||
| 13041-5601002 |
B..BU60,63,70,75,80 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5601001 |
B..BU60,63,70,75,80 MARK"1",MARK 1 |
4 | ||
| 13041-5601002 |
B..BU60,63,70,75,80 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5601001 |
B..BU60,63,70,75,80 MARK"1",MARK 1 |
4 | ||
| 13041-5601002 |
B..BU60,63,70,75,80 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5601001 |
B..BU60,63,70,75,80 MARK"1",MARK 1 |
4 | ||
| 13041-5601002 |
B..BU60,63,70,75,80 MARK"2",MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-56031 |
B..BU60,63,70,75,80 STD |
4 | ||
| 13101-56032 |
B..BU60,63,70,75,80 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31001 |
B..BU60,63,70,75,80 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59045 |
B..BU60,63,70,75,80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73065 |
B..BU60,63,70,75,80 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-56011 |
B..BU60,63,70,75,80 U/S 0.25,U/S 0.25 |
1 | ||
| 13205-56011 |
B..BU60,63,70,75,80 U/S 0.50,U/S 0.50 |
1 | ||
| 13207-56011 |
B..BU60,63,70,75,80 U/S 1.00,U/S 1.00 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59015 |
B..BU60,63,70,75,80 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-11006 |
B..BU60,63,70,75,80 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-56031 |
B,11B,13B..BU6#,7#,8#..5F |
1 | ||
| 13405-56032 |
B,11B,13B..BU6#,7#,8#..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
B,11B,13B..BU6#,7#,8#..5F L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-13004 |
B,11B,13B..BU6#,7#,8#..5F |
6 | ||
| 90913-01015 |
B,11B,13B..BU6#,7#,8#..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-56020 |
B..BU60,63,70,75,80 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
B,11B,13B..BU6#,7#,8#..5F N=110 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-56170 |
B..BU60,63,70,75,80 W/HAC |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10416 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16003 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-56030 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56030 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-56010 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56020 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90119-10208 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 90105-10194 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90044-01010 |
B,11B,13B..BU6#,7#,8# |
1 | ||
