BU65RD-MDTQ (1985)

Toyota Dyna

Production Aug 1985 - Aug 1987
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )BU65

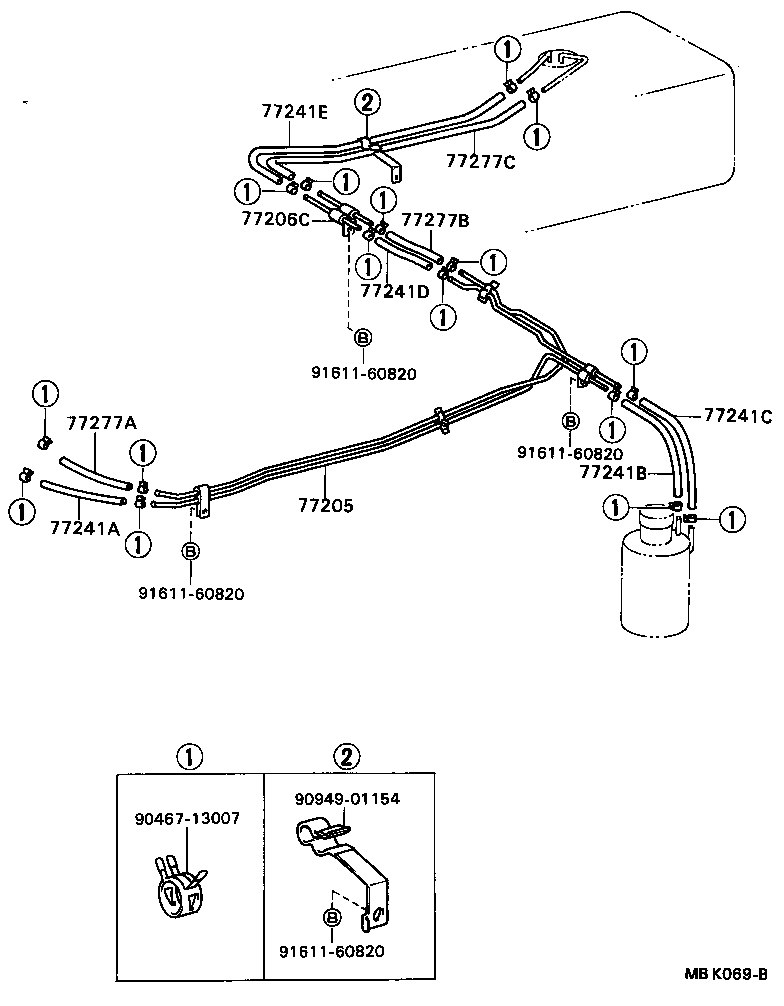

Click highlighted areas on diagram

diagram 77205 77206C 77241A 77241B 77241C 77241D 77241E 77277A 77277B 77277C 9046713007 9094901154 9161160820 9161160820 9161160820 9161160820
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36200

BU65

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36390

BU65

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,7#,8#

*H,L=180,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BU63,65

*H,L=300,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08030

BU63,65

*H,L=300,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

BU63,65

*H,L=200,ID=7.6

 1
77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)
95332-08060

BU63,65

*H,L=600,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU61,62,65,76,81,82

*H,L=180,ID=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

BU65

*H,L=200,ID=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08060

BU65

*H,L=600,ID=7.6

 1
Common parts
90467-13007
90949-01154
91611-60820
