BU65LD-MDTE3 (1985)

Toyota Dyna

Production Aug 1985 - Aug 1987
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )BU65..IV3

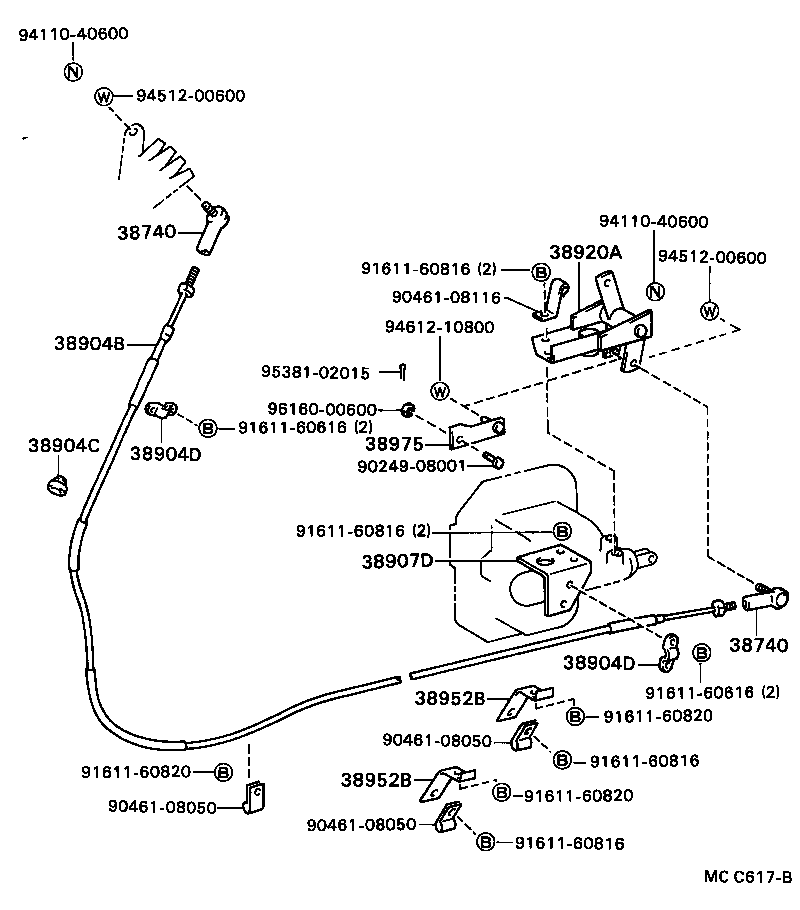

Click highlighted areas on diagram

diagram 38740 38740 38904B 38904C 38904D 38904D 38907D 38920A 38952B 38952B 38975 9024908001 9046108050 9046108050 9046108050 9046108116 9161160616 9161160616 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9411040600 9411040600 9451200600 9451200600 9461210800 9538102015 9616000600
Part # Description Qty Price
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38904B - CABLE ASSY, PUSH PULL
38930-93115

BU65..IV3

 1
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU60,80..T3..WT;BU61,62,63,65,81,82..5F..WT..(ARL,GEN,GHD)

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38907D - STAY SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93112

BU65..IV3

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93104

BU65..IV3

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38961-93103

BU65..IV3

 2
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38961-93103

BU65..IV3

 2
38975 - END, POWER TAKE-OFF CONTROL
38975-93100

BU65..IV3

 1
Common parts
90249-08001
90461-08050
90461-08116
91611-60616
91611-60816
91611-60820
94110-40600
94512-00600
94612-10800
95381-02015
96160-00600
