BU63RD-MDTQ (1984)

Toyota Dyna

Production Sep 1984 - Aug 1985
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU63,65

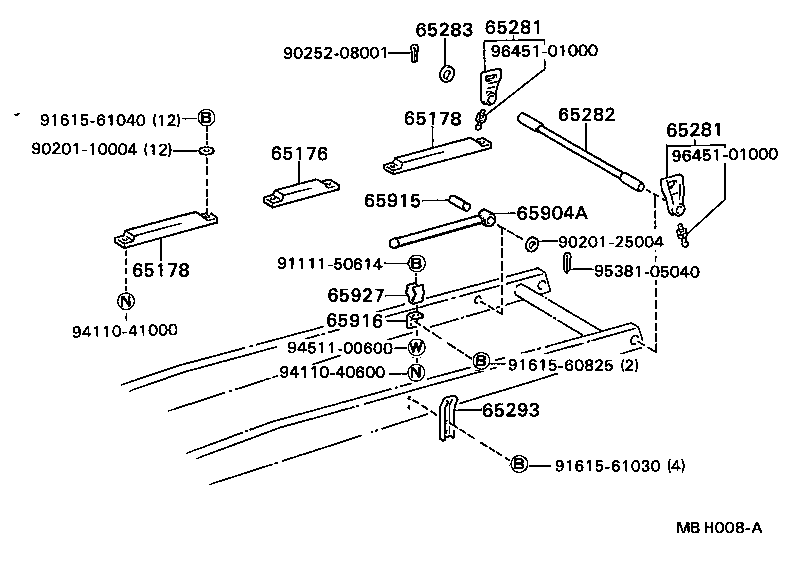

Click highlighted areas on diagram

diagram 65176 65178 65178 65281 65281 65282 65283 65293 65904A 65915 65916 65927 9020110004 9020125004 9025208001 9111150614 9161560825 9161561030 9161561040 9411040600 9411041000 9451100600 9538105040 9645101000 9645101000
Part # Description Qty Price
65176 - SILL, BESSEL RAIL, FRONT
65176-93100

BU63,65

 2
65178 - SILL, BESSEL RAIL, REAR
65178-93100

BU63,65

 4
65178 - SILL, BESSEL RAIL, REAR
65178-93100

BU63,65

 4
65281 - BRACKET, BEZEL HINGE
65281-93101

BU63,65

 2
65281 - BRACKET, BEZEL HINGE
65281-93101

BU63,65

 2
65282 - SHAFT, BEZEL HINGE
65206-93100

BU63,65

 1
65283 - STOPPER, BEZEL HINGE SHAFT
65283-93102

BU63,65

 1
65293 - GUIDE, VESSEL
65663-93100

BU63,65

 2
65904A - BAR SUB-ASSY, VESSEL STAND
65904-93100

BU63,65

 2
65915 - PIN, BEZEL STAND
65974-93100

BU63,65

 1
65916 - BRACKET, BAR CLAMP
65978-93100

BU63,65

 1
65927 - CLIP, BAR
90468-12008

BU63,65

 1
Common parts
90201-10004
90201-25004
90252-08001
91111-50614
91615-60825
91615-61030
91615-61040
94110-40600
94110-41000
94511-00600
95381-05040
96451-01000
