BU63RD-MDT (1984)
Toyota Dyna
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||

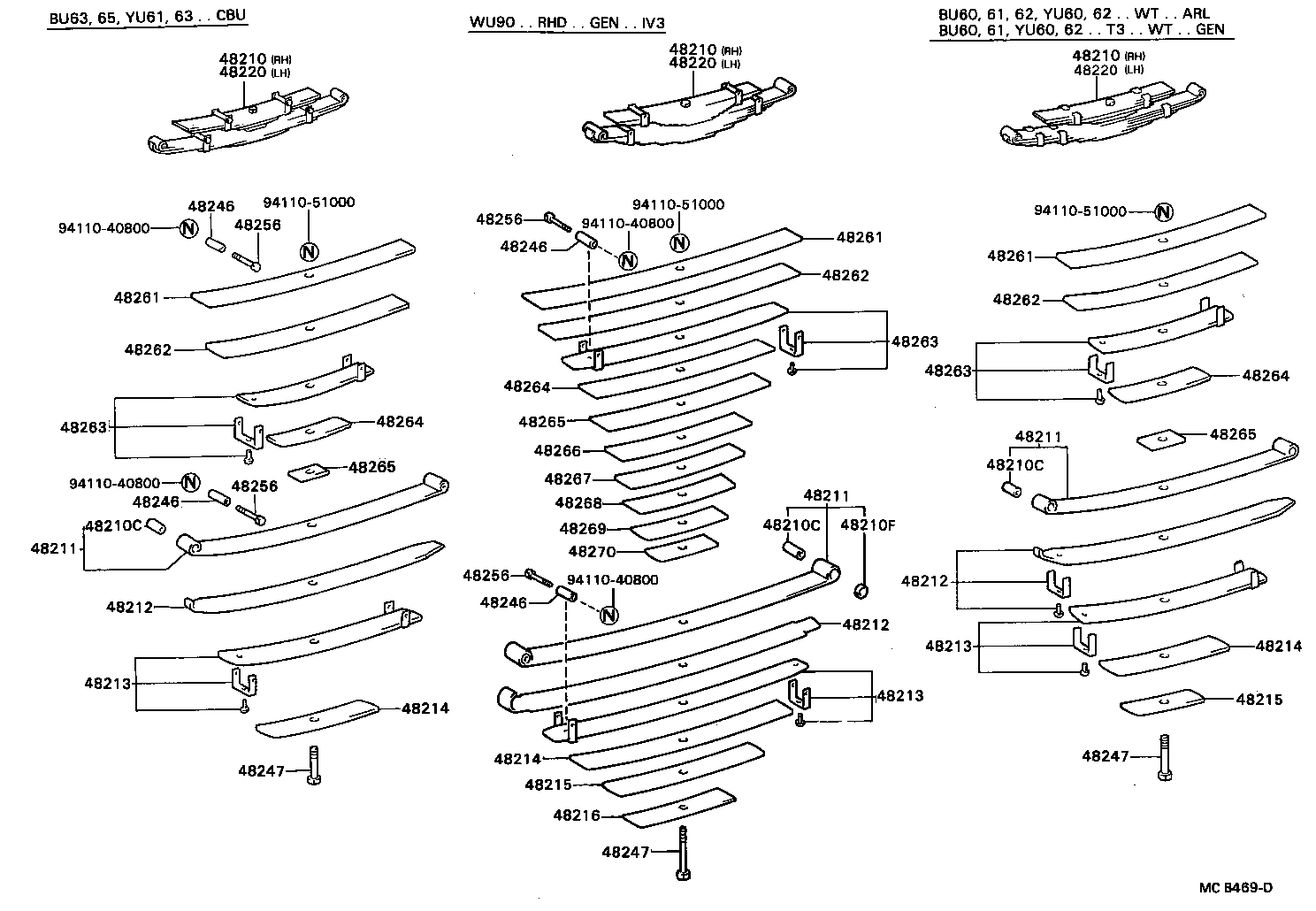

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU80..T2;BU63,65,82;BU80,81..GHD,SA RR |
2 | ||
| 90389-16005 |
BU80..T2;BU63,65,82;BU80,81..GHD FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36790 |
BU63,65..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36790 |
BU63,65..CBU |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BU63,65..CBU |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
BU63,65..CBU |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU63 |
8 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48219-36790 |
BU63,65..CBU |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )BU63,65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36190 |
BU63,65 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16231 |
BU80..T3..GEN;BU63,65,75,76,81,86..ARL,EUR,GEN,SA L=280,L=280 |
2 | ||
| 90118-16228 |
BU63,65..CBU L=275,L=275 |
4 | ||
| 90117-16022 |
BU80..T3..GEN;BU63,65,75,76,81,86..ARL,EUR,GEN,SA L=280,L=280 |
2 | ||
| 90117-16103 |
BU63,65..CBU L=275,L=275 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16231 |
BU80..T3..GEN;BU63,65,75,76,81,86..ARL,EUR,GEN,SA L=280,L=280 |
2 | ||
| 90118-16228 |
BU63,65..CBU L=275,L=275 |
4 | ||
| 90117-16022 |
BU80..T3..GEN;BU63,65,75,76,81,86..ARL,EUR,GEN,SA L=280,L=280 |
2 | ||
| 90117-16103 |
BU63,65..CBU L=275,L=275 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36190 |
BU63,65 |
1 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36030 |
BU63,65 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36170 |
BU63,65 |
2 | ||
| 48344-36270 |
BU63,65 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36200 |
BU63,65 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36200 |
BU63,65 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36180 |
BU63,65 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-36070 |
BU63,65 |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-36070 |
BU63,65 |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-36070 |
BU63,65 |
1 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48419-36060 |
BU63,65 |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48419-36060 |
BU63,65 |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36060 |
BU63,65 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36060 |
BU63,65 |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BU6#,7#,8# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
BU80..T3..GEN;BU63,65,81,85..ARL,EUR,GEN W/12IN DIFF |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU60..TS..WT;BU61,63,65..WT |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU80,81..GHD;BU63,65,82,85 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,75,76,8#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU60..TS..WT;BU61,63,65..WT |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,7#,8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU63,65;BU60..TS..WT |
1 | ||
| Common parts | ||||
| 51349-36010 | ||||
| 90101-16018 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||

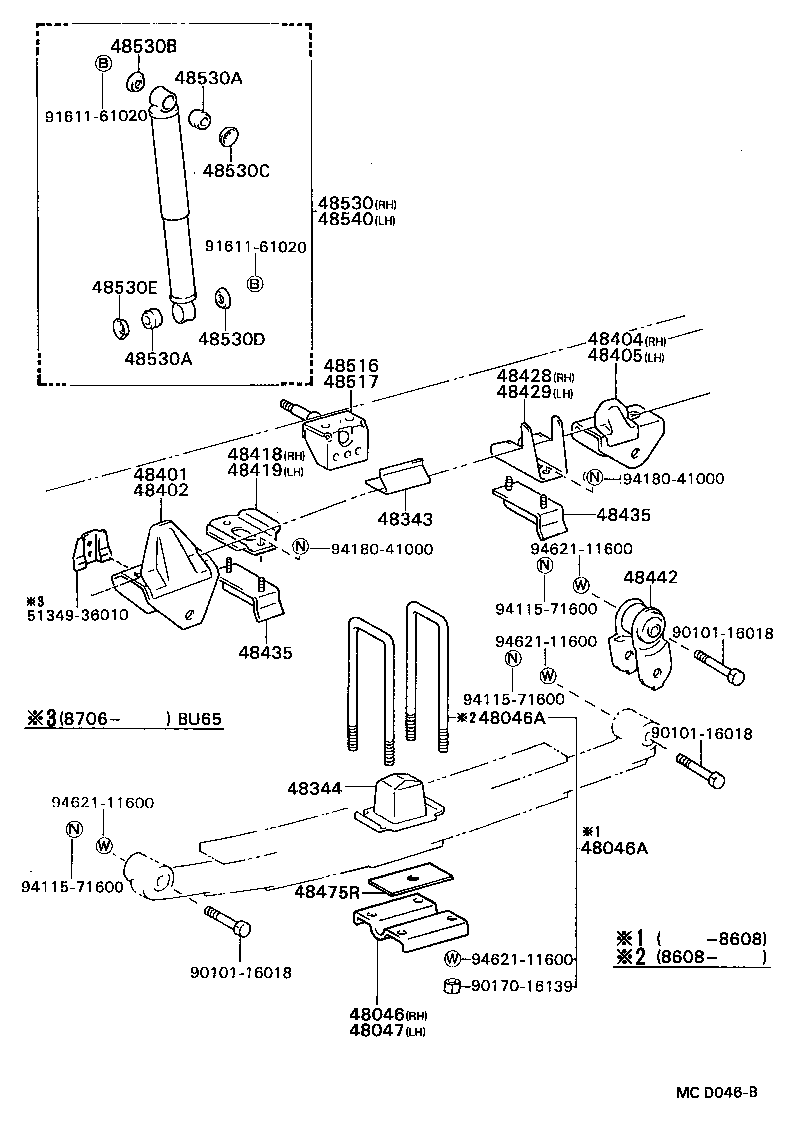

| 94115-71600 | ||||
| 94180-41000 | ||||
| 94621-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
