BU60R-MDBTQ3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1985
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )BU60,63,75,80..RHD

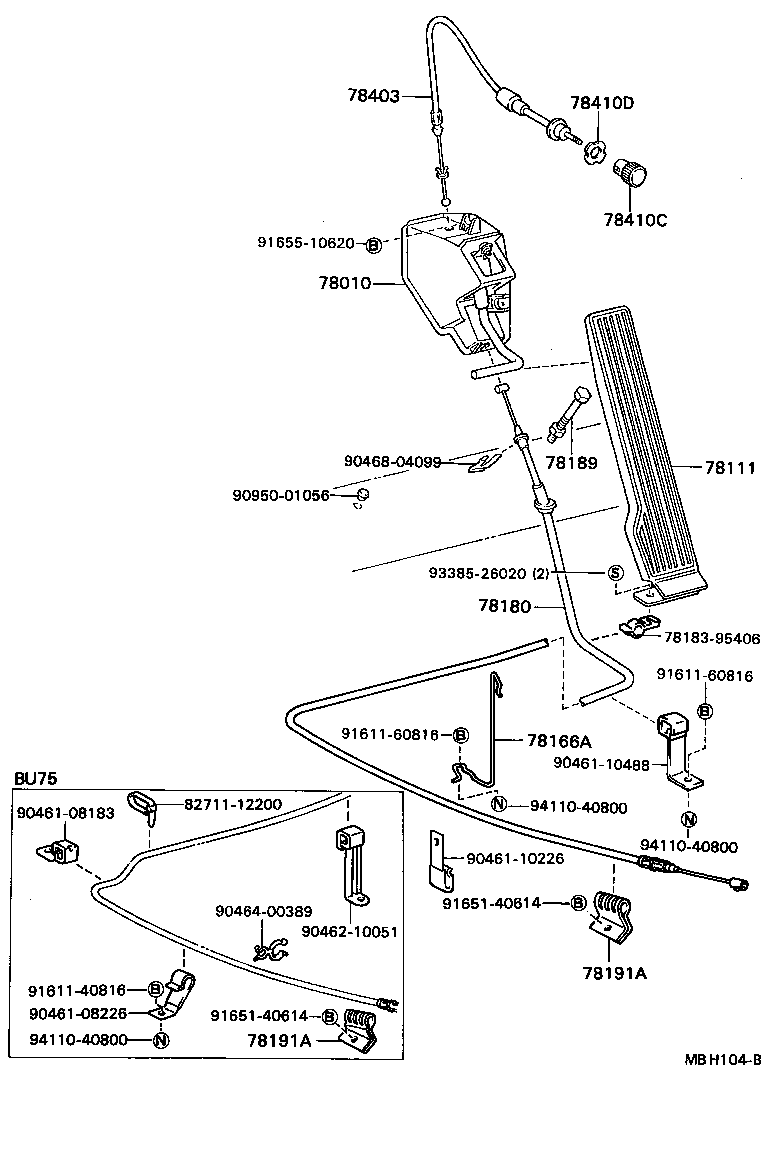

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78202-95400 |
BU6#,80,81,82..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU6#,75,76,8#..RHD |
1 | ||
| 78166A - SPRING, CLAMP, NO.1 | ||||
| 78169-95407 |
BU60,63,80..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95460 |
BU60,63,80..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95400 |
BU6#,75,76,8#..RHD |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-08523 |
BU60,63,70,75,80 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-08523 |
BU60,63,70,75,80 |
1 | ||
| 78403 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78404-95400 |
BU60,61,63,75,76,8#..RHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-22010 |
BU6#,7#,8# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78413-95J00 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 78183-95406 | ||||
| 82711-12200 | ||||
| 90461-08183 | ||||
| 90461-08226 | ||||
| 90461-10226 | ||||
| 90461-10488 | ||||
| 90462-10051 | ||||
| 90464-00389 | ||||
| 90468-04099 | ||||
| 90950-01056 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91655-10620 | ||||
| 93385-26020 | ||||
| 94110-40800 | ||||
