BU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

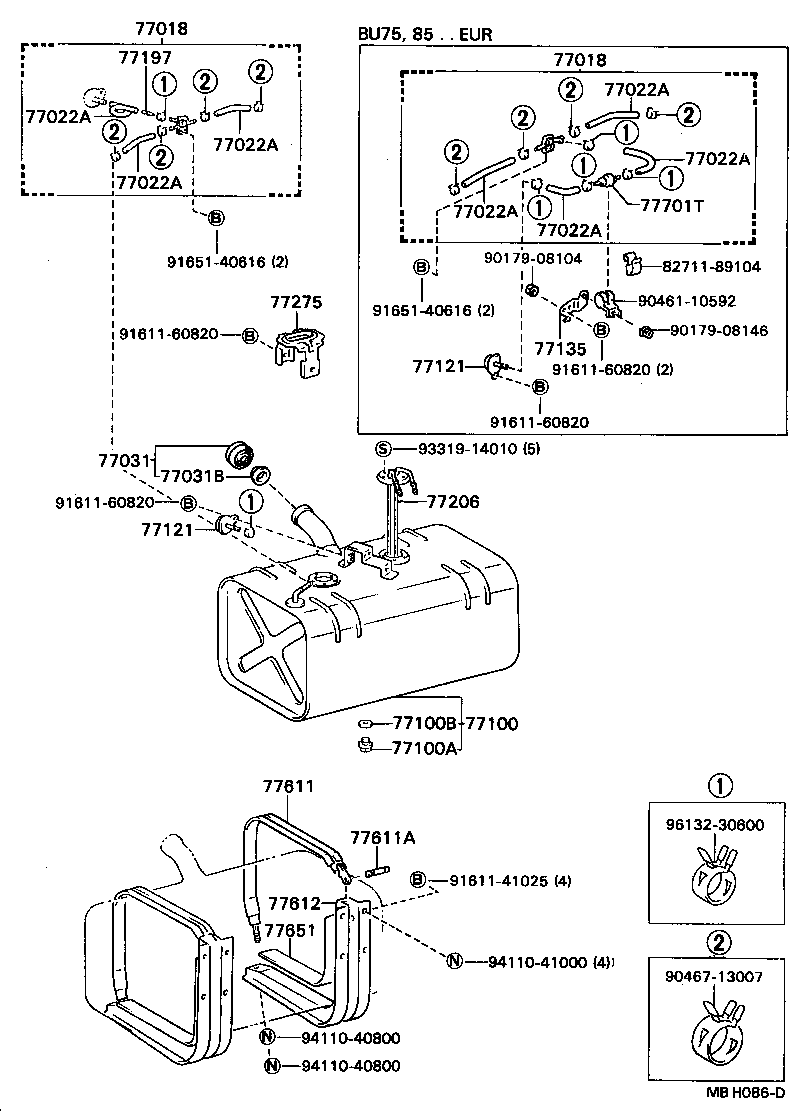

(8409- )BU85..EUR,GEN ; (8409- )BU60,61,62,75,76,80,81,82..T3 ; (8508- )BU

Click highlighted areas on diagram

diagram 77018 77018 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77121 77135 77197 77206 77275 77611 77611A 77612 77651 77701T 8271189104 9017908104 9017908146 9046110592 9046713007 9161141025 9161160820 9161160820 9161160820 9161160820 9165140616 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36130

BU85..GEN;BU60,61,75,80,81,82..T3..(ARL,GEN,GHD,SA)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36130

BU85..GEN;BU60,61,75,80,81,82..T3..(ARL,GEN,GHD,SA)

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

BU6#,7#,8#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

BU6#,7#,8#

 1
77100 - TANK ASSY, FUEL
77001-36710

BU60,61,75,76,8#..T3..WT

 1
77001-36710

BU60,61,75,76,80,81,82,85..T3..WT..(ARL,GEN,GHD,SA)

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BU6#,7#,8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,7#,8#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BU85..TW1;BU85..EUR,GEN;BU6#,7#,80,81,82,86

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BU85..TW1;BU85..EUR,GEN;BU6#,7#,80,81,82,86

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36200

BU63,75;BU60,80..T3

 1
77611 - BAND, FUEL TANK
77601-36140

BU60,61,62,75,76,8#..T3..(EUR,GEN,GHD)

 2
77601-36140

BU60,61,62,75,76,80,81,82,85..T3..(EUR,GEN,GHD,SA)..(CBU,IV3)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36090

BU60,61,62,75,76,80,81,82,85..T3..(EUR,GEN,GHD,SA)..(CBU,IV3)

 2
77633-36090

BU60,61,62,75,76,8#..T3..(EUR,GEN,GHD)

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36100

BU63,65;BU60,61,62,75,76,80,81,82,85..T3

 2
Common parts
82711-89104
90179-08104
90179-08146
90461-10592
90467-13007
91611-41025
91611-60820
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

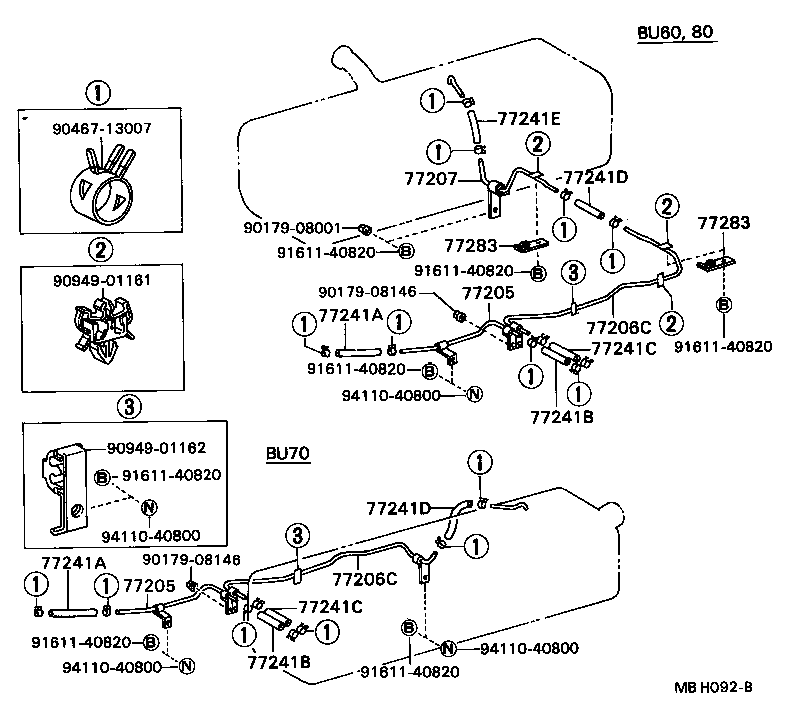

(8409- )BU60,70,80

Click highlighted areas on diagram

diagram 77205 77205 77206C 77206C 77207 77241A 77241A 77241B 77241B 77241C 77241C 77241D 77241D 77241E 77283 77283 9017908001 9017908146 9017908146 9046713007 9094901161 9094901162 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77207-36010

BU60,70,80

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77207-36010

BU60,70,80

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36190

BU60,80

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36190

BU60,80

 1
77207 - TUBE SUB-ASSY, FUEL
77205-36260

BU60,80

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,7#,8#

*H,L=180,ID=7.6

 1
23271-56050

BU6#,7#,8#

*H,L=180,W/PROTECTOR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,7#,8#

*H,L=180,ID=7.6

 1
23271-56050

BU6#,7#,8#

*H,L=180,W/PROTECTOR

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
95332-08020

BU60,61,62,7#,8#

*H,L=140,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
95332-08020

BU60,61,62,7#,8#

*H,L=140,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,7#,8#

*H,L=140,ID=7.6

 1
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,7#,8#

*H,L=140,ID=7.6

 1
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,ID=7.6

 1
77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,80..T1,T2,T3

*H,L=140,ID=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,80,81,82

 2
Common parts
90179-08001
90179-08146
90467-13007
90949-01161
90949-01162
91611-40820
94110-40800
