BU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

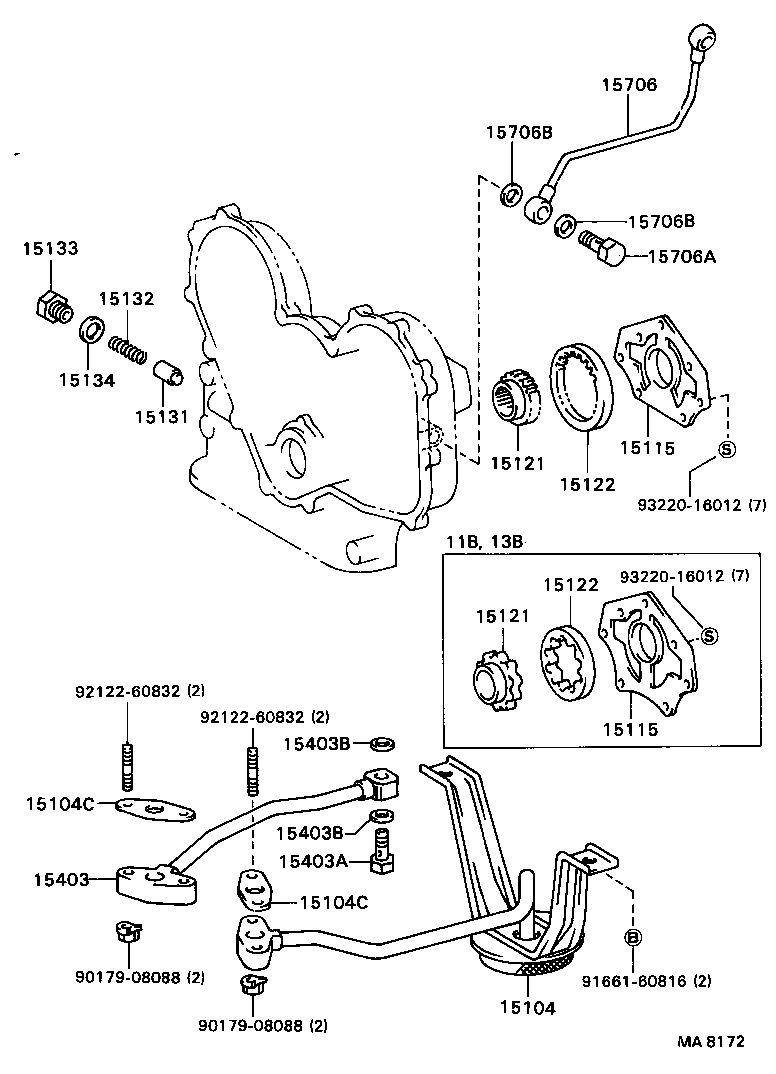

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15115 15121 15121 15122 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908088 9017908088 9166160816 9212260832 9212260832 9322016012 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-56050

B,11B,13B..BU6#,7#,8#

 1
15104C - GASKET(FOR OIL STRAINER)
15193-56020

B,11B,13B..BU6#,7#,8#

 2
15104C - GASKET(FOR OIL STRAINER)
15193-56020

B,11B,13B..BU6#,7#,8#

 2
15115 - COVER, OIL PUMP
15115-56030

B..BU60,63,70,75,80

 1
15115 - COVER, OIL PUMP
15115-56030

B..BU60,63,70,75,80

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56030

B..BU60,63,70,75,80

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56030

B..BU60,63,70,75,80

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-56030

B..BU60,63,70,75,80

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-56030

B..BU60,63,70,75,80

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

B,11B,13B..BU6#,7#,8#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

B..BU60,63,70,75,80

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

B,11B,13B..BU6#,7#,8#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

B,11B,13B..BU6#,7#,8#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-56041

B,11B,13B..BU6#,7#,8#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90401-18002

B,11B,13B..BU6#,7#,8#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

B,11B,13B..BU6#,7#,8#

 2
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

B,11B,13B..BU6#,7#,8#

 2
15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET
15077-56010

B,11B,13B..BU6#,7#,8#

 1
15706A - UNION(FOR INJECTION PUMP OUTLET PIPE)
90044-01010

B,11B,13B..BU6#,7#,8#

 1
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

B,11B,13B..BU6#,7#,8#

 2
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

B,11B,13B..BU6#,7#,8#

 2
Common parts
90179-08088
91661-60816
92122-60832
93220-16012
