BU60R-MDB (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )

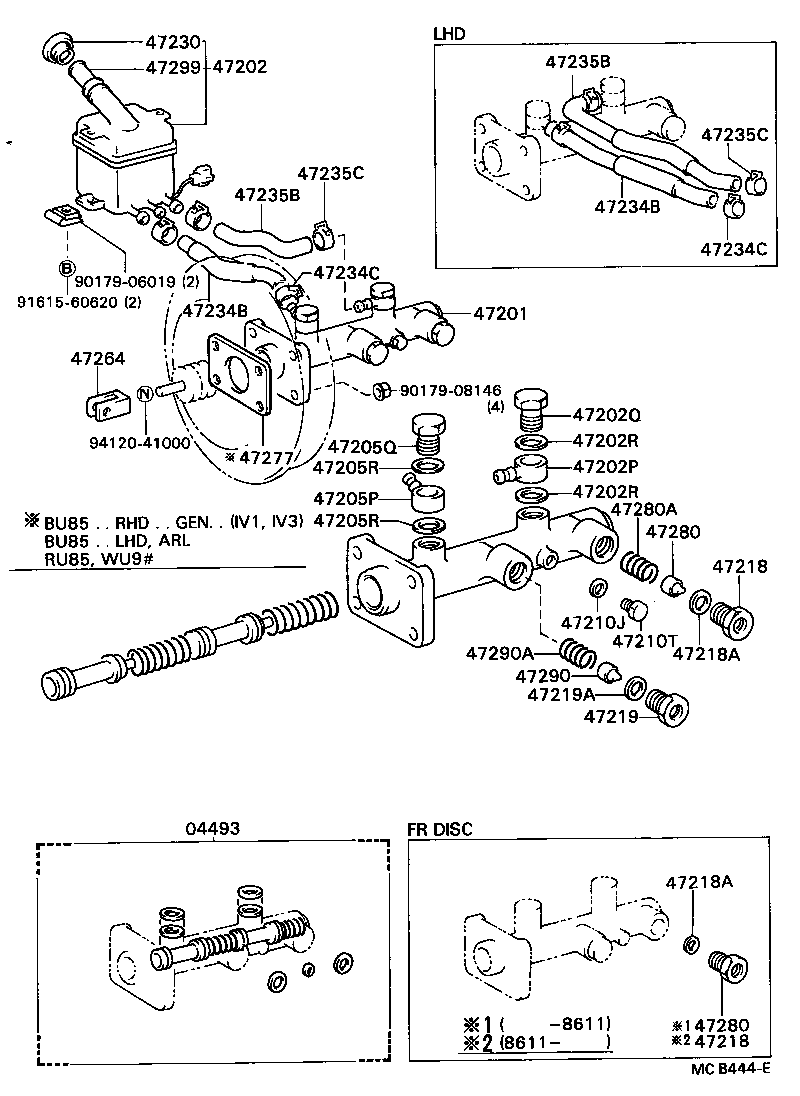

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-36070 |
BU6#,7#,8# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-36160 |
BU6#,75,76,8#..RHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36040 |
BU6#,7#,8#..5F |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
BU6#,7#,8# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
BU6#,7#,8# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
BU6#,7#,8# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
BU6#,7#,8# |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-13137 |
BU6#,7#,8# |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
BU6#,7#,8# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
BU6#,7#,8# |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
BU6#,7#,8# |
2 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BU6#,7#,8# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BU6#,7#,8# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36030 |
BU6#,7#,8# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36030 |
BU6#,7#,8# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BU6#,7#,8# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BU6#,7#,8# |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-36030 |
BU6#,7#,8# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
BU6#,7#,8# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
BU6#,7#,8# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36100 |
BU6#,80,81,82..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36100 |
BU6#,80,81,82..RHD |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16002 |
BU6#,7#,8# |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-16002 |
BU6#,7#,8# |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36100 |
BU6#,80,81,82..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36100 |
BU6#,80,81,82..RHD |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16002 |
BU6#,7#,8# |
2 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 90467-16002 |
BU6#,7#,8# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22020 |
BU6#,7#,80,81,86..GEN |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BU6#,7#,8# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BU6#,7#,8# |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-05012 |
BU6#,7#,8# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
BU6#,7#,8# |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90501-05012 |
BU6#,7#,8# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 91615-60620 | ||||
| 94120-41000 | ||||
