BU60L-MDP (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )TW1

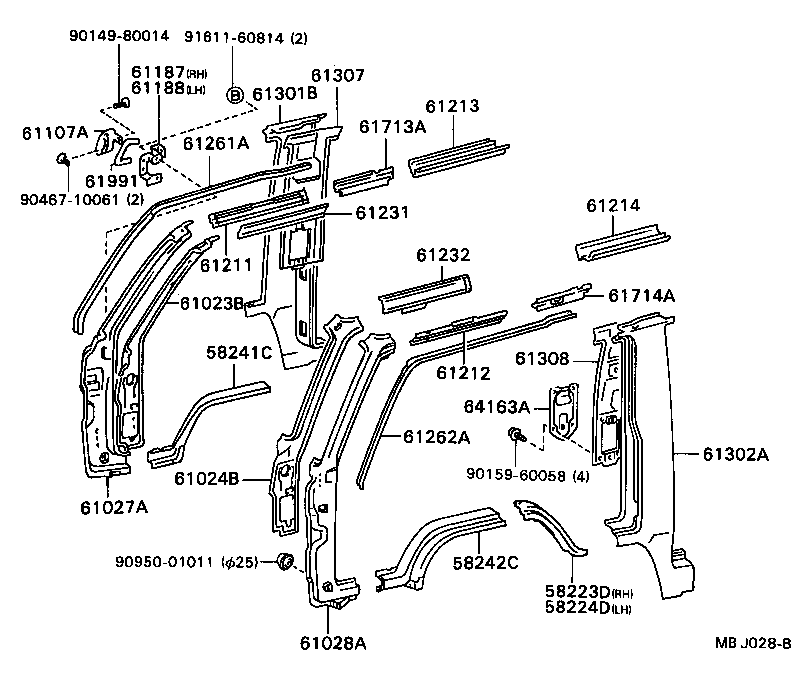

Click highlighted areas on diagram

diagram 58223D 58224D 58241C 58242C 61023B 61024B 61027A 61028A 61107A 61187 61188 61211 61212 61213 61214 61231 61232 61261A 61262A 61301B 61302A 61307 61308 61713A 61714A 61991 64163A 9014980014 9015960058 9046710061 9095001011 9161160814
Part # Description Qty Price
58223D - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-92602

BU60,85,86..TW1

 1
58223-92603

BU60..TW1

 1
58224D - REINFORCEMENT, FLOOR PANEL SIDE, LH
58224-92602

BU60,85,86..TW1

 1
58224-92603

BU60..TW1

 1
58241C - PANEL, FLOOR SIDE, RH
58241-92603

BU70,86;BU60,85..TW1

 1
58242C - PANEL, FLOOR SIDE, LH
58242-92603

BU70,86;BU60,85..TW1

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95401

BU60,61,62,65,7#,80,81,85..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95401

BU60,61,62,65,7#,80,81,85..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95401

BU6#,7#,8#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,7#,8#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

BU6#,75,76,8#..CBU,IV3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

BU6#,75,76,8#..CBU,IV3

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61310-95400

BU60,85,86..TW1

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61310-95400

BU60,85,86..TW1

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-92600

BU70;BU60..LHD..TW1

 1
61231-92601

BU70;BU60..TW1

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-92601

BU60..TW1

 1
61232-92601

BU60..LHD..TW1

 1
61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH
61261-92601

BU60,85,86..TW1

 1
61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH
61262-92601

BU60,85,86..TW1

 1
61301B - PILLAR, CENTER BODY, OUTER RH
61301-92606

BU60..TW1

 1
61301-92603

BU60,85,86..TW1

 1
61302A - PILLAR, CENTER BODY, OUTER LH
61302-92604

BU60..TW1

 1
61302-92607

BU60,85,86..TW1

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-92602

BU60..TW1

 1
61307-92602

BU60..TW1..GEN

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-92604

BU60..TW1..GEN

 1
61308-92604

BU60..TW1

 1
61308-92603

BU60..LHD..TW1

W/RR HEATER

 1
61713A - EXTENSION, ROOF SIDE, OUTER RH
61713-92602

BU60,85,86..TW1

 1
61714A - EXTENSION, ROOF SIDE, OUTER LH
61714-92602

BU60,85,86..TW1

 1
64163A - COVER, BACK CORNER, INNER
64163-95403

BU6#,7#,8#..(GEN,GHD)..(CBU,IV3)

 2
64163-87302

BU70,86;BU60..TW1..GEN

 2
Common parts
90149-80014
90159-60058
90467-10061
90950-01011
91611-60814
