BU60L-MDB (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU6#,70,80,81,82

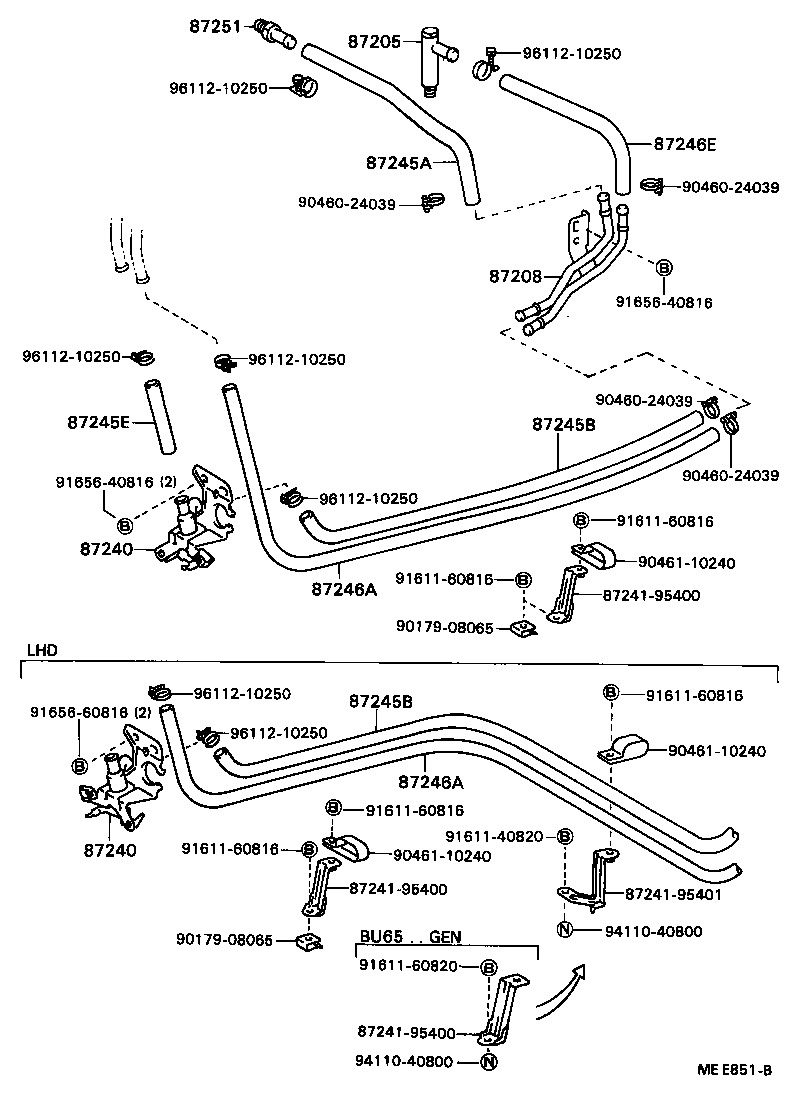

Click highlighted areas on diagram

diagram 87205 87208 87240 87240 8724195400 8724195400 8724195400 8724195401 87245A 87245B 87245B 87245E 87246A 87246A 87246E 87251 9017908065 9017908065 9046024039 9046024039 9046024039 9046024039 9046110240 9046110240 9046110240 9161140820 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9165640816 9165640816 9165660816 9411040800 9411040800 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU6#,7#,8#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95409

BU6#,70,80,81,82

 1
87240 - VALVE ASSY, HEATER WATER
87240-95406

BU60,61,62,65,7#,80,81,85..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95406

BU60,61,62,65,7#,80,81,85..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95457

BU6#,70,80,81,82

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30980

BU60,61,62,65,70,80,81..LHD

*H,L=820

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30980

BU60,61,62,65,70,80,81..LHD

*H,L=820

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

BU6#,7#,8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU60,61,62,65,70,80,81..LHD

*H,L=960

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU60,61,62,65,70,80,81..LHD

*H,L=960

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95458

BU6#,70,80,81,82

 1
87245-30250

BU6#,70,80,81,82

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU6#,7#,8#

FR HEATER

 1
Common parts
87241-95400
87241-95401
90179-08065
90460-24039
90461-10240
91611-40820
91611-60816
91611-60820
91656-40816
91656-60816
94110-40800
96112-10250
