BU60L-MDB (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

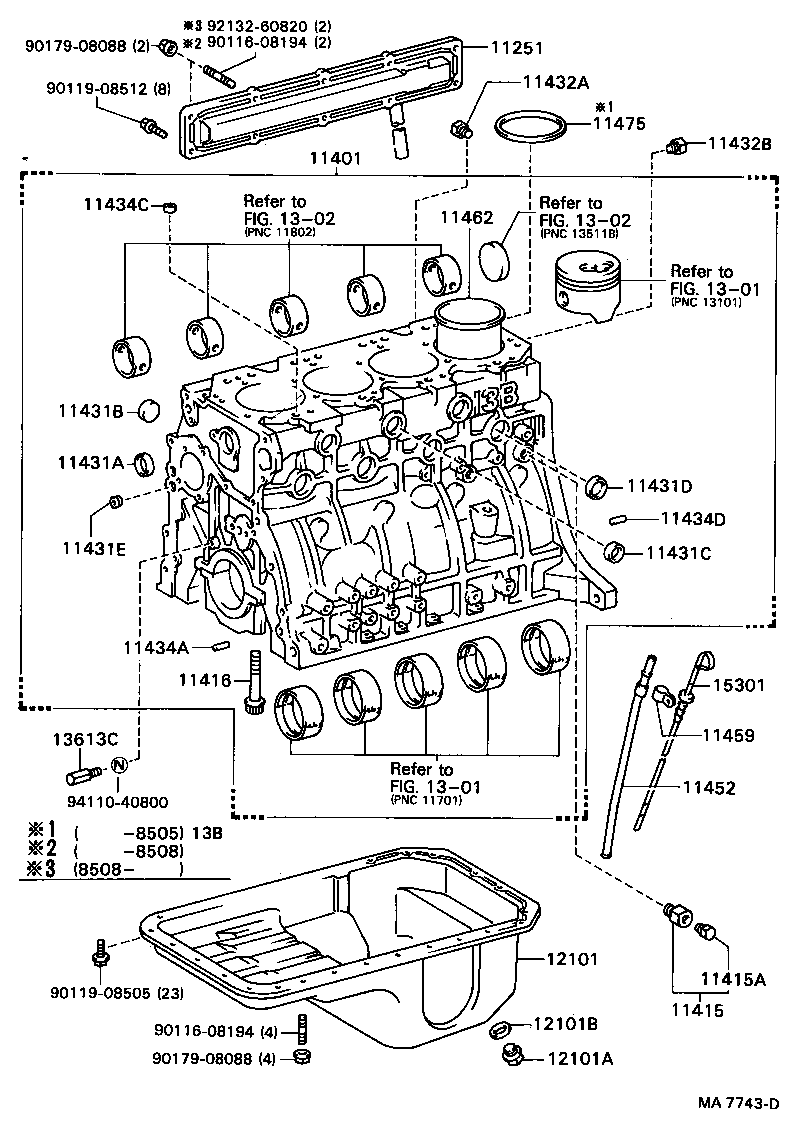

Click highlighted areas on diagram

diagram 11251 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 9011608194 9011608194 9011908505 9011908512 9017908088 9017908088 9213260820 9411040800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56040

B..BU60,63,70,75,80

 1
11203-56041

B..BU60,63,70,75,80

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59265

B..BU60,63,70,75,80

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

B,11B,13B..BU6#,7#,8#

 1
90910-09070

B,11B,13B..BU6#,7#,8#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

B,11B,13B..BU6#,7#,8#

 1
90910-09072

B,11B,13B..BU6#,7#,8#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90109-16001

B,11B,13B..BU6#,7#,8#

*16-2PX88.5-32

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

B,11B,13B..BU6#,7#,8#

OD=51

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-12800

B,11B,13B..BU6#,7#,8#

OD=28

 4
96411-42800

B,11B,13B..BU6#,7#,8#

OD=28

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43000

B,11B,13B..BU6#,7#,8#

OD=30

 4
96411-13000

B,11B,13B..BU6#,7#,8#

OD=30

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-13500

B,11B,13B..BU6#,7#,8#

OD=35

 4
96411-43500

B,11B,13B..BU6#,7#,8#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-11400

B,11B,13B..BU6#,7#,8#

OD=14

 2
96411-41400

B,11B,13B..BU6#,7#,8#

OD=14

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027

B,11B,13B..BU6#,7#,8#

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

B,11B,13B..BU6#,7#,8#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

B,11B,13B..BU6#,7#,8#

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

B,11B,13B..BU6#,7#,8#

L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

B,11B,13B..BU6#,7#,8#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

B,11B,13B..BU6#,7#,8#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

B,11B,13B..BU6#,7#,8#

 1
11462 - LINER, CYLINDER
11461-56030

B,11B..BU60,61,63,65,7#,80,81,86

 4
12101 - PAN SUB-ASSY, OIL
12101-56060

B,11B..BU60,63,7#,80,81

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

B,11B,13B..BU6#,7#,8#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

B,11B,13B..BU6#,7#,8#

 1
13613C - NOZZLE, OIL
90915-01015

B,11B,13B..BU6#,7#,8#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56040

B,11B,13B..BU6#,7#,8#

 1
Common parts
90116-08194
90119-08505
90119-08512
90179-08088
92132-60820
94110-40800
Linked diagrams
1301
1302
