BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 28800 28800 28800 28800B 28800B 28800C 28800C 28800C 28800F 8202 8202 8202 8202 8202 8202 9046108109 9046108282 9046108746 9046110294 9046110295 9046308124 9046308375 9046315298 9161140816 9161140820 9411040800 9411040800
Part # Description Qty Price
Common parts
90461-08109
90461-08282
90461-08746
90461-10294
90461-10295
90463-08124
90463-08375
90463-15298
91611-40816
91611-40820
94110-40800
Linked diagrams
8202

(0010- )

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28800F 28800J 8271110460 8271537400 8271537860 827153V090 827153V120 9011908827 9017908227 9017908227 9165160816 9165160816 91651B0825 91651B0825 91651B0825 91651B0825 9413000802 9413000802
Part # Description Qty Price
Common parts
82711-10460
82715-37400
82715-37860
82715-3V090
82715-3V120
90119-08827
90179-08227
91651-60816
91651-B0825
94130-00802

(0411-0701)BU410,420

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28800F 28800J 8271110460 827153V090 9011908827 91651B0825 9413000802 9415180801 9415180801
Part # Description Qty Price

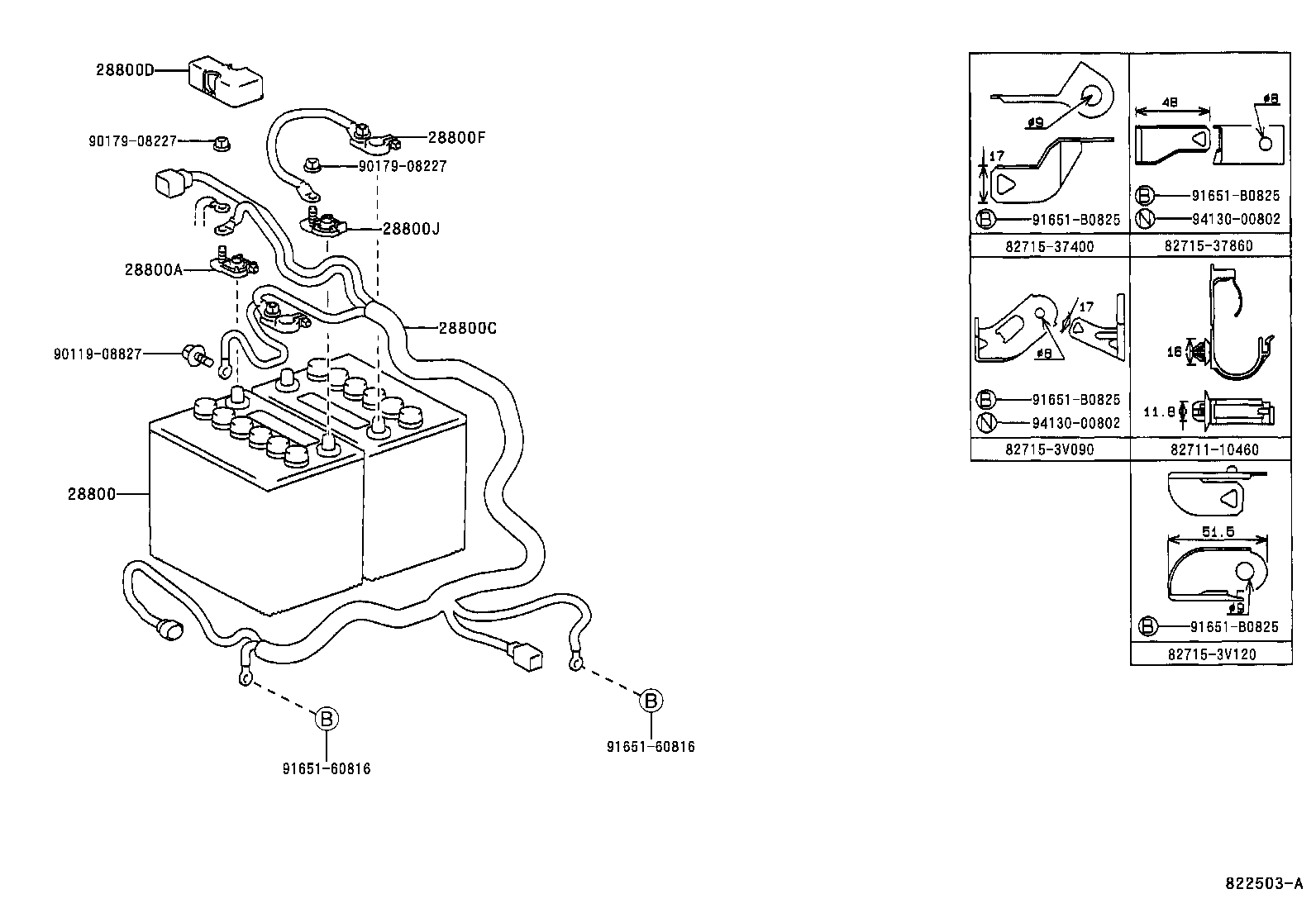

28800 - BATTERY
28800-64181

15BFTE..BU410,420

95D31L

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05042

15BFTE..BU410,420

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37490

15BFTE..BU410,420

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

15BFTE..BU410,420

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37040

15BFTE..BU410,420

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028

15BFTE..BU410,420

 1
Common parts
82711-10460
82715-3V090
90119-08827
91651-B0825
94130-00802
94151-80801
