BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0506)ARL,GEN,SA,TAIW ; (0506-0610)ARL,GEN,SA ; (0610- )WU41#,42#,XZU413,41

Click highlighted areas on diagram

diagram 51436B 51436B 51473A 51474 51961C 51962 51963B 51964B 9017814007 91651B0825 91651B0825 9167201460 9167201460 9413001402
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU410,420

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU410,420

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37160

BU410,420

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37140

BU410,420

 1
51961C - HOOK, FRONT
51961-37040

BU410,420

 1
51962 - HOOK, NO.2
51965-37030

XZU415,425,435;BU410,420,WU410,420,XZU412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
51961-36040

BU410,420

 1
Common parts
90178-14007
91651-B0825
91672-01460
94130-01402

(0506- )BU410,420

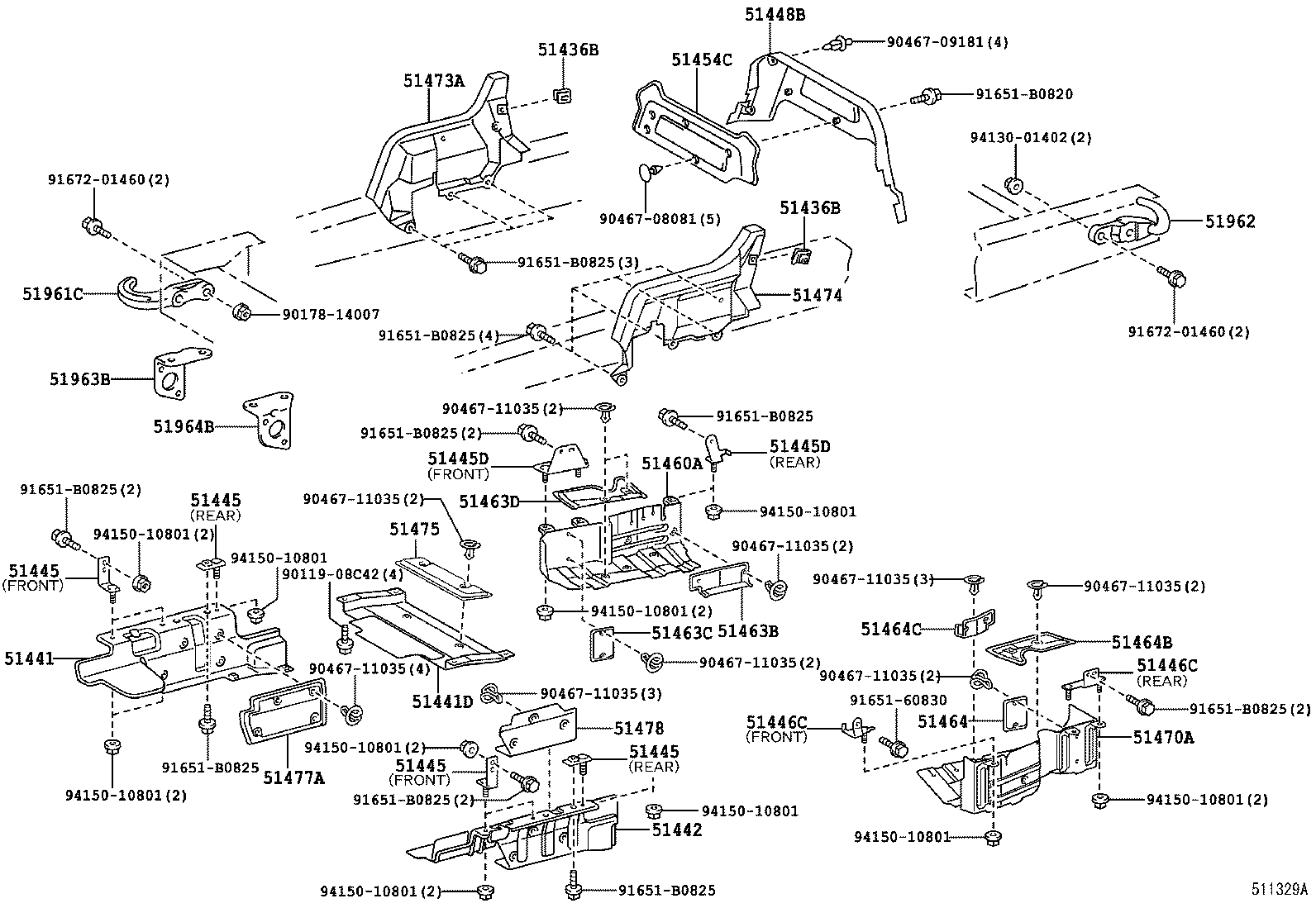

Click highlighted areas on diagram

diagram 51436B 51436B 51441 51441D 51442 51445 51445 51445 51445 51445D 51445D 51446C 51446C 51448B 51454C 51460A 51463B 51463C 51463D 51464 51464B 51464C 51470A 51473A 51474 51475 51477A 51478 51961C 51962 51963B 51964B 9011908C42 9017814007 9046708081 9046709181 9046711035 9046711035 9046711035 9046711035 9046711035 9046711035 9046711035 9046711035 9046711035 9165160830 91651B0820 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 9167201460 9167201460 9413001402 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU410,420

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU410,420

 2
51441 - COVER, ENGINE UNDER, NO.1
51440-37200

BU410,420

 1
51441D - COVER, ENGINE UNDER
51440-37190

BU410,420

 1
51442 - COVER, ENGINE UNDER, NO.2
51440-37211

BU410,420

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-37140

BU410,420

FRONT

 4
51445-37130

BU410,420

REAR

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-37140

BU410,420

FRONT

 4
51445-37130

BU410,420

REAR

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-37140

BU410,420

FRONT

 4
51445-37130

BU410,420

REAR

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-37140

BU410,420

FRONT

 4
51445-37130

BU410,420

REAR

 2
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-37A50

BU410,420

REAR

 1
51445-37A40

BU410,420

FRONT

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-37A50

BU410,420

REAR

 1
51445-37A40

BU410,420

FRONT

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-37180

BU410,420

FRONT

 1
51446-37190

BU410,420

REAR

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-37180

BU410,420

FRONT

 1
51446-37190

BU410,420

REAR

 1
51448B - SHUTTER, ENGINE REAR SIDE
51448-37010

BU410,420

 1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-37161

BU410,420

 1
51460A - COVER ASSY, TRANSMISSION UNDER, RH
51460-37030

BU410,420

 1
51463B - SILENCER, TRANSMISSION UNDER, RH NO.1
51463-37020

BU410,420

 1
51463C - SILENCER, ENGINE UNDER COVER, RH
51464-37200

BU410,420

 1
51463D - SILENCER, TRANSMISSION UNDER, RH NO.2
51463-37030

BU410,420

 1
51464 - SILENCER, TRANSMISSION UNDER, LH
51464-37200

BU410,420

 1
51464B - SILENCER, TRANSMISSION UNDER
51464-37180

BU410,420

 1
51464C - SILENCER, TRANSMISSION UNDER
51464-37190

BU410,420

 1
51470A - COVER ASSY, TRANSMISSION UNDER, LH
51470-37230

BU410,420

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37160

BU410,420

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37140

BU410,420

 1
51475 - SILENCER, ENGINE UNDER COVER, NO.5
51475-37040

BU410,420

 1
51477A - SILENCER, ENGINE UNDER COVER, RH
51477-37030

BU410,420

 1
51478 - PLATE, ENGINE SIDE UNDER COVER, UPPER LH
51478-37110

BU410,420

 1
51961C - HOOK, FRONT
51961-37040

BU410,420

 1
51962 - HOOK, NO.2
51965-37030

XZU415,425,435;BU410,420,WU410,420,XZU412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
51961-36040

BU410,420

 1
Common parts
90119-08C42
90178-14007
90467-08081
90467-09181
90467-11035
91651-60830
91651-B0820
91651-B0825
91672-01460
94130-01402
94150-10801
