BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31305B 31305C 31321 31324 31324A 31453A 31453B 31481 31481 9046110276 9046816142 9161140816 9161140816 9161140816 9165140816 9411041000 9412040800 9451201000
Part # Description Qty Price
Common parts
90461-10276
90468-16142
91611-40816
91651-40816
94110-41000
94120-40800
94512-01000

(7708- )BU2#,3#,HU30

Click highlighted areas on diagram

diagram 31481A 31481A 31481A 31481A 31482 31482 31485 31485 31487 31487 31488 31488 9046106009 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9622112080 9622120906 9622220906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
Common parts
90461-06009
91611-40816
91611-40820
94110-40800
96221-12080
96221-20906
96222-20906
96991-12080

ILLUST NO. 2 OF 2(0010- )MTM

Click highlighted areas on diagram

diagram 31481 31481A 31482 31482B 31484A 31487 31488C 31489 31495 4708 4708 9046808035 9046808035 9046808035 9046808035 9161160816 9413000802
Part # Description Qty Price
Common parts
90468-08035
91611-60816
94130-00802
Linked diagrams
4708

ILLUST NO. 1 OF 2(0010- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31323 31324 31324A 31453A 31453B 38979A 8401 8413 9017906204 9046814017 9164380820 9164380820 9413061000 9413061000 9453101000
Part # Description Qty Price
Common parts
90179-06204
90468-14017
91643-80820
94130-61000
94531-01000
Linked diagrams
8401
8413

ILLUST NO. 1 OF 2(0411-0701)BU410,420 ; (0701- )XZU415,417,425,427,435..DCRTK

Click highlighted areas on diagram

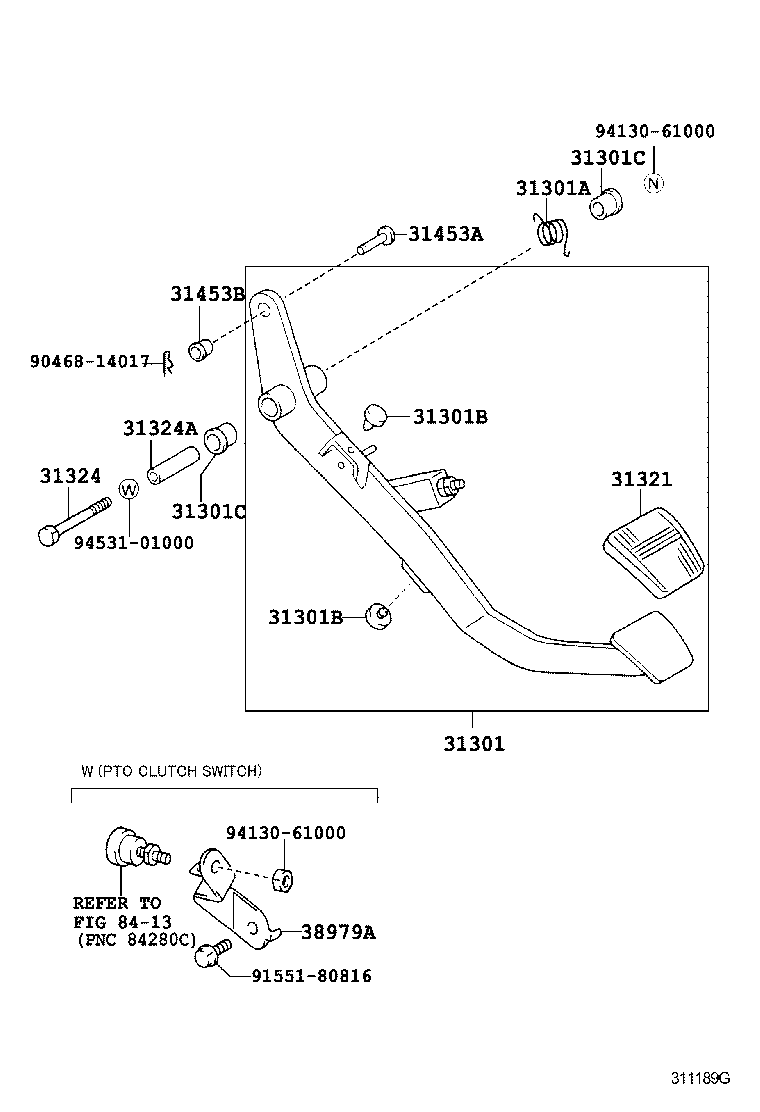

diagram 31301 31301A 31301B 31301B 31301C 31301C 31321 31324 31324A 31453A 31453B 38979A 8413 9046814017 9155180816 9413061000 9413061000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37290

BU410,420

W(PTO)

 1
31301-37260

BU410,420

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03394

BU410,420

 1
90959-03344

XZU414,424..RHD;XZU414,424..EUR;BU410,420,XZU404,434

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

BU410,420

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

BU410,420

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU410,420

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU410,420

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

BU410,420

 1
31324 - SHAFT, CLUTCH PEDAL
91112-61070

BU410,420

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU410,420

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU410,420

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU410,420

 1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37031

BU410,420

 1
Common parts
90468-14017
91551-80816
94130-61000
94531-01000
Linked diagrams
8413

ILLUST NO. 2 OF 2(0411-0701)BU410,420

Click highlighted areas on diagram

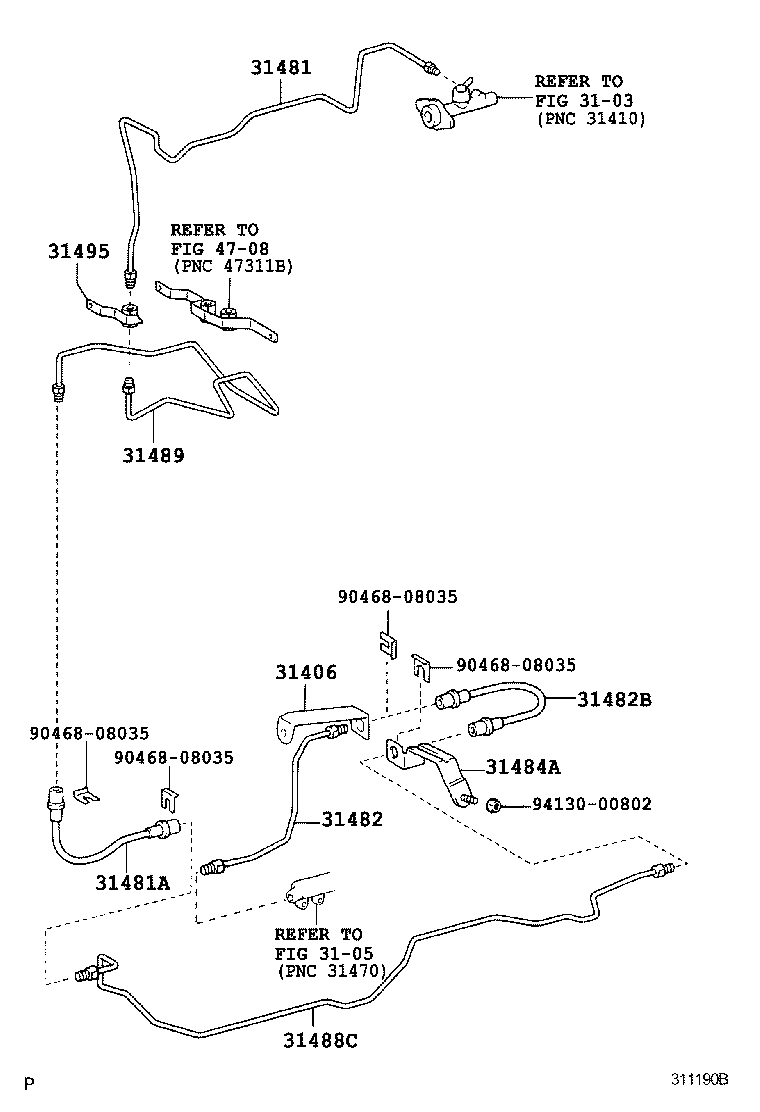

diagram 3103 3105 31406 31481 31481A 31482 31482B 31484A 31488C 31489 31495 4708 9046808035 9046808035 9046808035 9046808035 9413000802
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-37020

BU410,420

 1
31481A - HOSE, CLUTCH, NO.1
90931-01143

BU410,420

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37100

BU410,420

 1
31482-37101

BU410,420

 1
31482B - HOSE, CLUTCH, NO.2
90931-01142

BU410,420

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37180

BU410,420

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-37390

BU410,420

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37190

BU410,420

 1
31495 - WAY, CLUTCH TUBE
31495-37020

BU410,420

 1
Common parts
90468-08035
94130-00802
Linked diagrams
3103
3105
4708
