BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )B,2B,3B

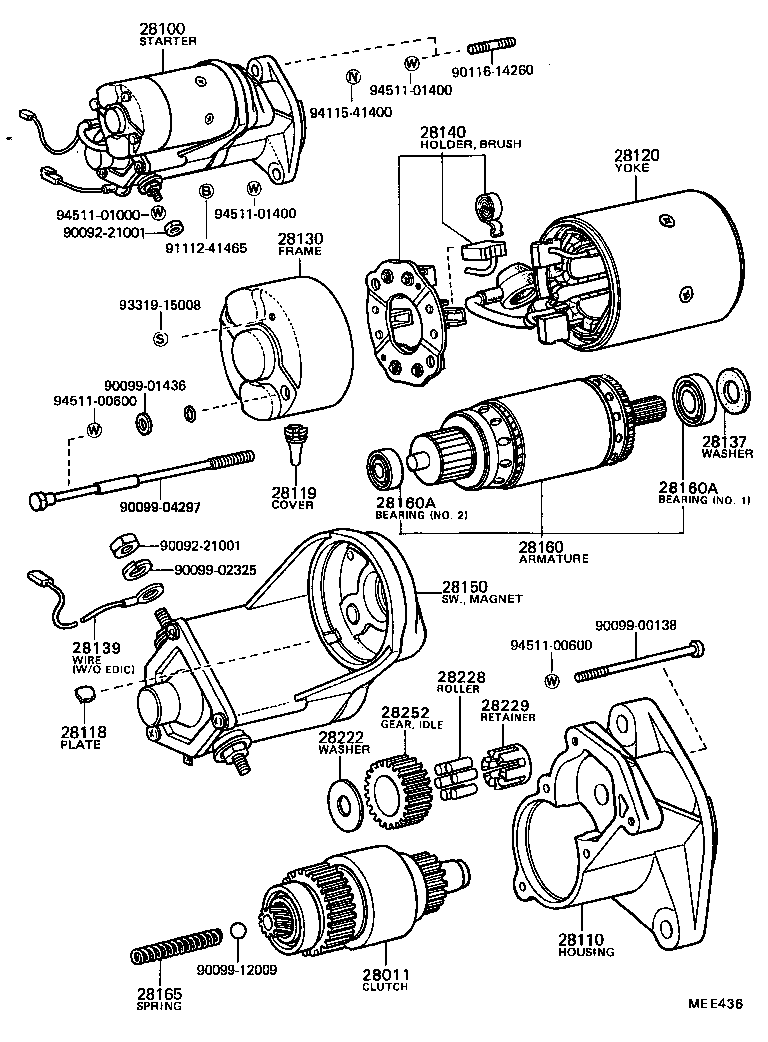

Click highlighted areas on diagram

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28160 28160A 28160A 28165 28222 28228 28229 28252 9009221001 9009221001 9009900138 9009901436 9009902325 9009904297 9009912009 9011614260 9111241465 9331915008 9411541400 9451100600 9451100600 9451101000 9451101400 9451101400
Part # Description Qty Price
Common parts
90092-21001
90099-00138
90099-01436
90099-02325
90099-04297
90099-12009
90116-14260
91112-41465
93319-15008
94115-41400
94511-00600
94511-01000
94511-01400

(0010- )

Click highlighted areas on diagram

TYPE A

diagram 28011 28100 28110 28111 2811289103 28113 28114 28116 28117 28117A 28118 28120 28130 2813778060 28139 28140 28142 28142 28142 28143 28150 28160 28160A 28172 28174 2818278060 2818278080 2818289101 28199 28199A 28229 28254 8270237070 827111E360 9003105033 9017908204 9017914007 9165160816
Part # Description Qty Price
Common parts
28112-89103
28137-78060
28182-78060
28182-78080
28182-89101
82702-37070
82711-1E360
90031-05033
90179-08204
90179-14007
91651-60816

(0010- )

Click highlighted areas on diagram

TYPE B

diagram 28011 28012 28100 28110 28110A 2811289101 2811289102 2811289103 28113 28114 28116 28117 28117A 28118 28118A 28120 28130 28136 28139 28140 28142 28142 28142 28143 28149 28150 28160 28160A 28160B 28163 28172 28174 2818289101 28199 28209 28229 8270237070 827111E360 9003105033 9017908204 9017914007 9165160816
Part # Description Qty Price
Common parts
28112-89101
28112-89102
28112-89103
28182-89101
82702-37070
82711-1E360
90031-05033
90179-08204
90179-14007
91651-60816

(0411- )15BFTE

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017910195 9111261465 9413061400 9462111400 9462111400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

15BFTE..BU410,420

 1
28100 - STARTER ASSY
28100-56321

15BFTE..BU410,420

24V 4.5KW

 1
28100 - STARTER ASSY
28100-56321

15BFTE..BU410,420

24V 4.5KW

 1
28120 - YOKE ASSY, STARTER
28120-56221

15BFTE..BU410,420

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

15BFTE..BU410,420

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-56320

15BFTE..BU410,420

 1
28160 - ARMATURE ASSY, STARTER
28160-77090

15BFTE..BU410,420

 1
Common parts
90179-10195
91112-61465
94130-61400
94621-11400
