BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )B,2B,3B

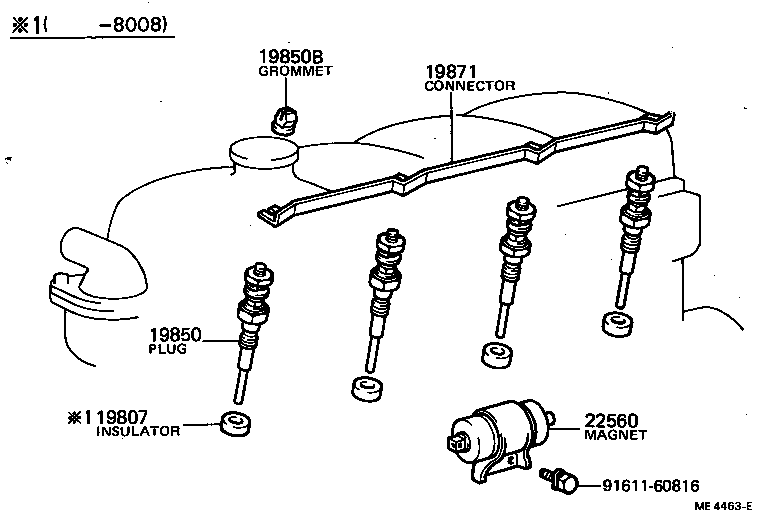

Click highlighted areas on diagram

diagram 19807 19850 19850B 19871 22560 9161160816
Part # Description Qty Price
Common parts
91611-60816

(0010- )

Click highlighted areas on diagram

diagram 1104 19850 19871 19871 19871 28626 8270237080
Part # Description Qty Price
Common parts
82702-37080
Linked diagrams
1104

(0411- )15BFTE

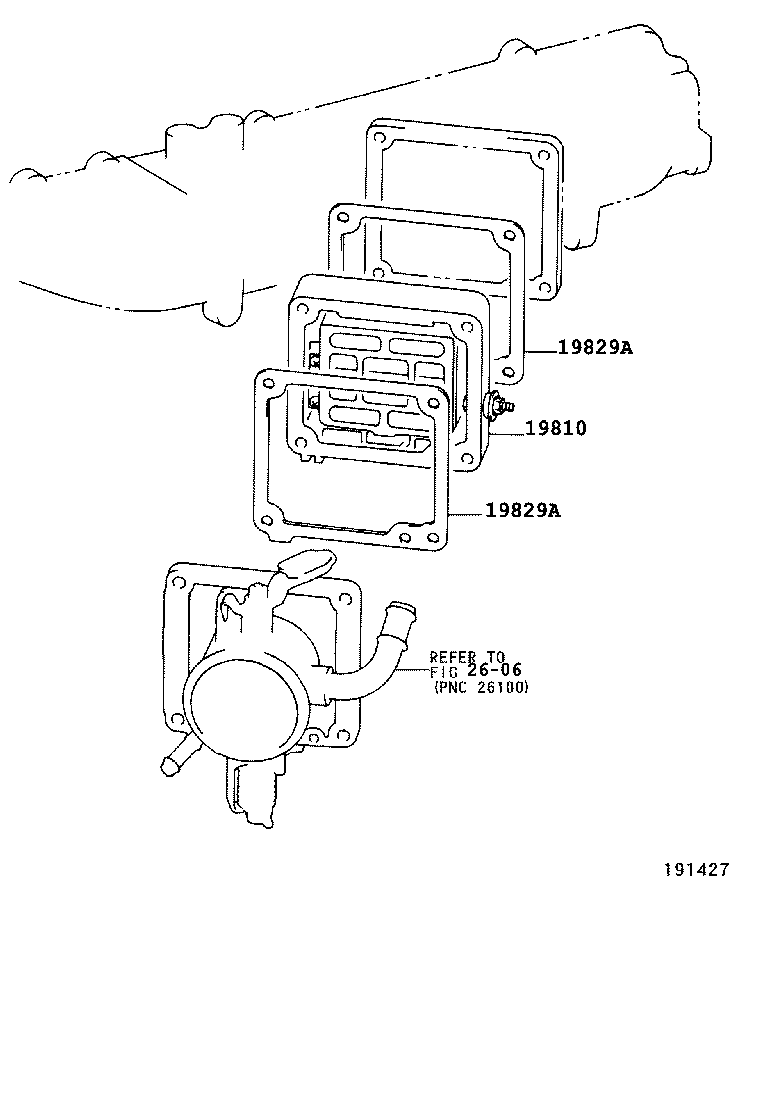

Click highlighted areas on diagram

diagram 19810 19829A 19829A 2606
Part # Description Qty Price
19810 - HEATER ASSY, INTAKE
19810-17020

15BFTE..BU410,420

 1
19829A - GASKET, INTAKE HEATER
19829-17010

15BFTE..BU410,420

 2
19829A - GASKET, INTAKE HEATER
19829-17010

15BFTE..BU410,420

 2
Linked diagrams
2606
