BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

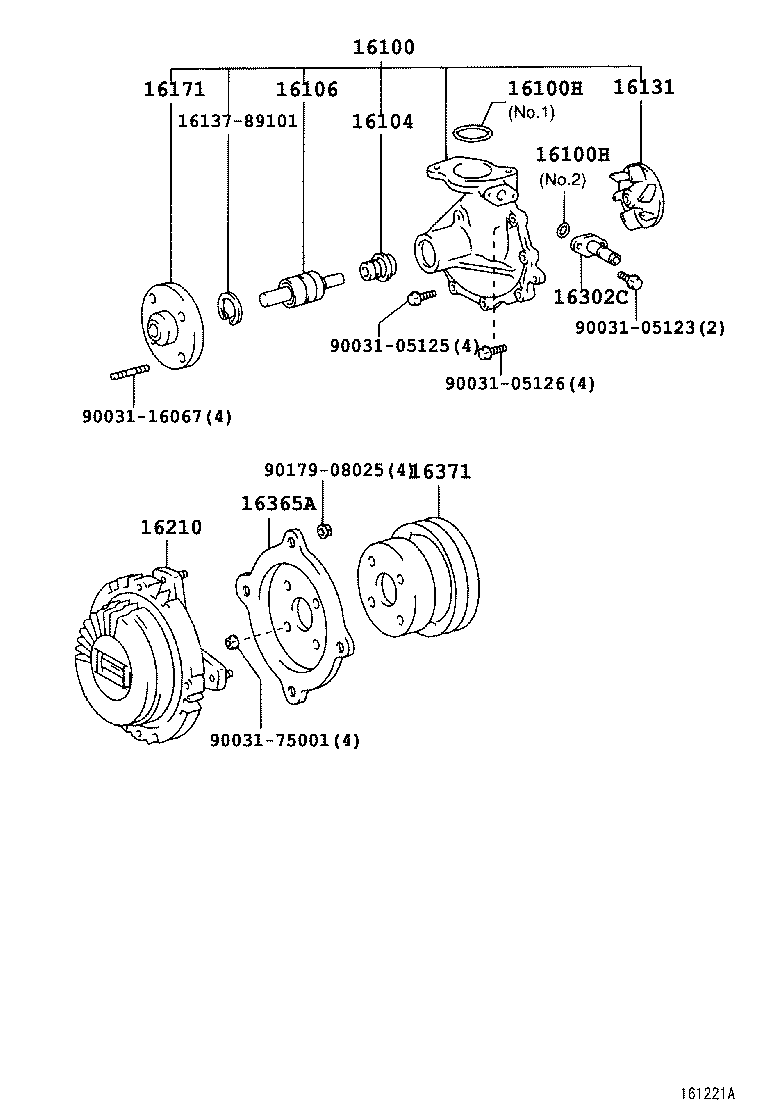

Click highlighted areas on diagram

diagram 16100 16100H 16100H 16104 16106 16131 1613789101 16171 16210 16302C 16365A 16371 9003105123 9003105125 9003105126 9003116067 9003175001 9017908025
Part # Description Qty Price
Common parts
16137-89101
90031-05123
90031-05125
90031-05126
90031-16067
90031-75001
90179-08025

(0411- )15BFTE

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 16100 16117 16124 16198 16210 16271 16371 9011908B89 9017908040 9164380845 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59295

15BFTE..BU410,420

 1
16117 - PLATE, WATER PUMP
16117-58090

15BFTE..BU410,420

 1
16124 - GASKET, WATER PUMP COVER
16124-58090

15BFTE..BU410,420

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-41170

15BFTE..BU410,420

 4
16210 - COUPLING ASSY, FLUID
16210-58060

15BFTE..BU410,420

 1
16271 - GASKET, WATER PUMP
16271-58010

15BFTE..BU410,420

 1
16371 - PULLEY, FAN
16371-58090

15BFTE..BU410,420

 1
Common parts
90119-08B89
90179-08040
91643-80845
93220-16014
Linked diagrams
1603
