BU410L-TKFQWR3 (2004)

Toyota Dyna

Production Nov 2004 - Jan 2007
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

diagram 1503 15600B 15600B 15600B 15600B 15600C 15600C 15600D 15600D 15600D 15600D 15600D 15600D 15600F 15600F 15601 15624 15624 15648 15701C 15721 1577789102 9003467019
Part # Description Qty Price
Common parts
15777-89102
90034-67019
Linked diagrams
1503

(0411- )15BFTE

Click highlighted areas on diagram

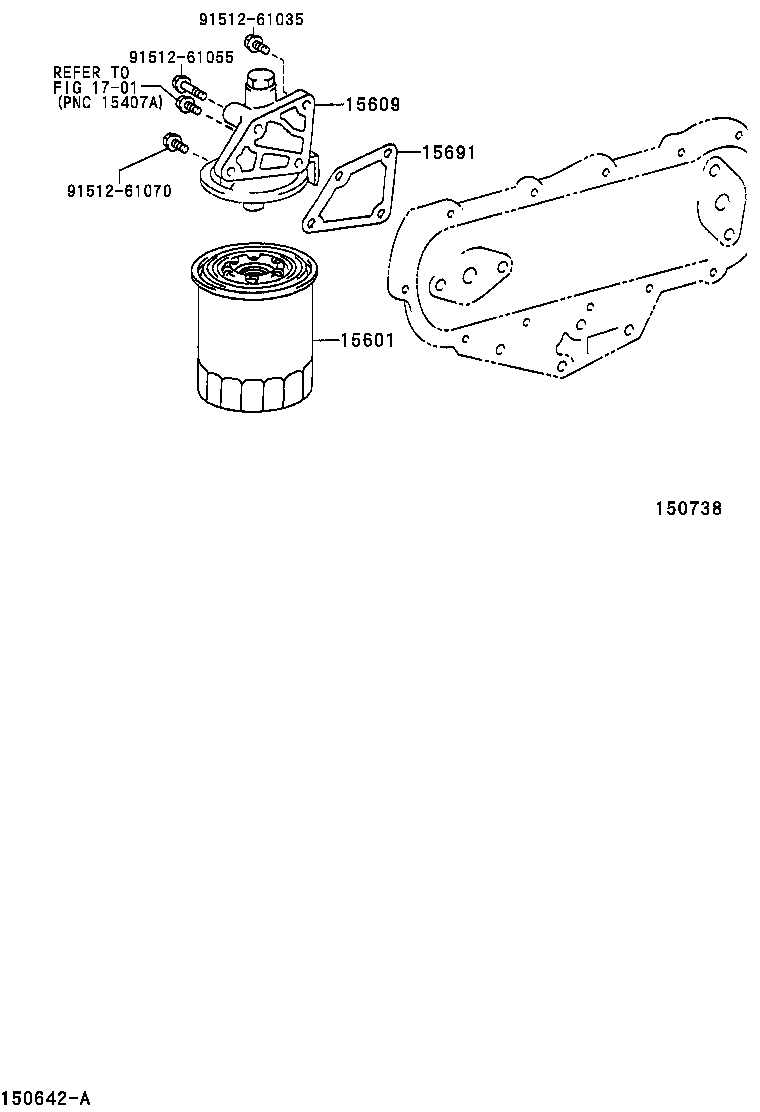

diagram 15601 15609 15691 1701 9151261035 9151261055 9151261070
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-30002

15BFTE..BU410,420

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-58040

15BFTE..BU410,420

 1
15691 - GASKET, OIL FILTER
15691-56041

15BFTE..BU410,420

 1
Common parts
91512-61035
91512-61055
91512-61070
Linked diagrams
1701
