BU40R-MRDT3 (1982)
Toyota Dyna
Production
Apr 1982
-
Aug 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8204-8408)BU36,40,WU40,50

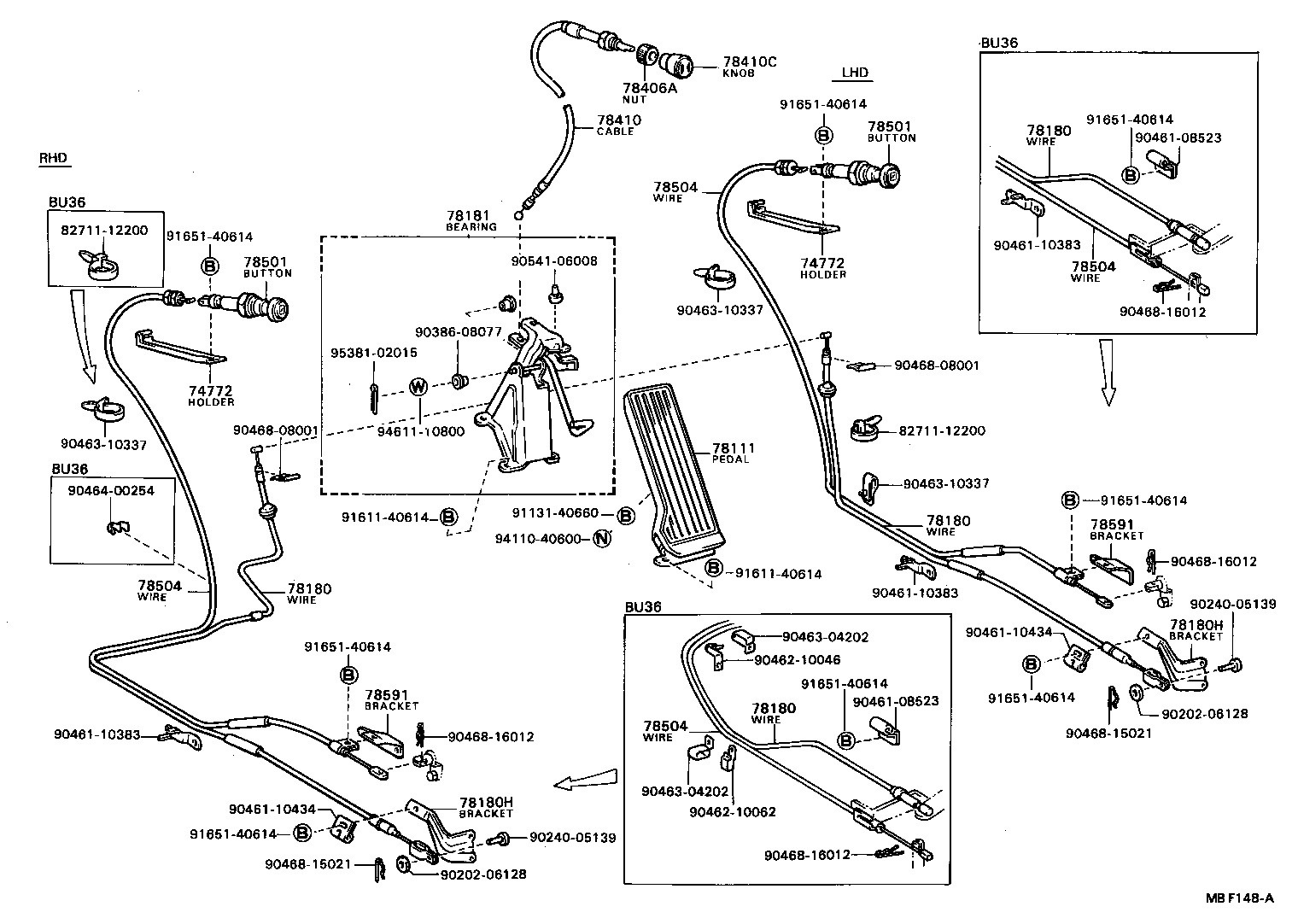

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU2#,3#,HU30,40,50,JU20,RU2#,30 |
1 | ||
| 78110-95410 |
BU40,WU40..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95450 |
BU36,40..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95450 |
BU36,40..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95450 |
BU36,40..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95450 |
BU36,40..RHD |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78180-95443 |
BU36,40..RHD |
1 | ||
| 78180-95448 |
BU36,40,HU40,50,WU40..RHD EXHAUST BRAKE |
1 | ||
| 78180-95447 |
BU36,40..RHD EXHAUST BRAKE |
1 | ||
| 78180-95449 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90202-06128 | ||||
| 90240-05139 | ||||
| 90386-08077 | ||||
| 90461-08523 | ||||
| 90461-10383 | ||||
| 90461-10434 | ||||
| 90462-10046 | ||||
| 90462-10062 | ||||
| 90463-04202 | ||||
| 90463-10337 | ||||
| 90464-00254 | ||||
| 90468-08001 | ||||
| 90468-15021 | ||||
| 90468-16012 | ||||
| 90541-06008 | ||||
| 91131-40660 | ||||
| 91611-40614 | ||||
| 91651-40614 | ||||
| 94110-40600 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
(0110-0212)GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90113-06013 | ||||
| 90119-06899 | ||||
| 90170-10054 | ||||
| 90179-06204 | ||||
| 90950-01865 | ||||
| 91511-B0816 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 93313-14014 | ||||
| 94130-60600 | ||||
| 96160-01000 | ||||
| 96456-01000 | ||||
