BU40R-MRDT3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8302)BU40,HU40,50

Click highlighted areas on diagram

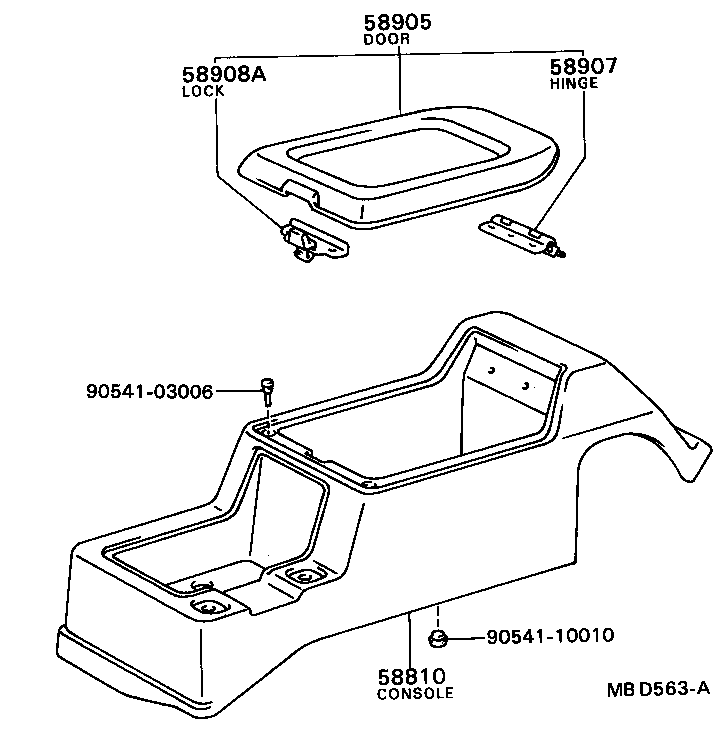

diagram 58810 58905 58907 58908A 9054103006 9054110010
Part # Description Qty Price
58810 - CONSOLE ASSY
58811-95405

BU40,HU40,50

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-95403

BU40,HU40,50

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-95403

BU40,HU40,50

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-95406

BU40,HU40,50

 1
Common parts
90541-03006
90541-10010
