BU40R-MRDT3 (1982)
Toyota Dyna
Production
Apr 1982
-
Aug 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8204-8408)BU36,40,HU40,50,WU40..RHD

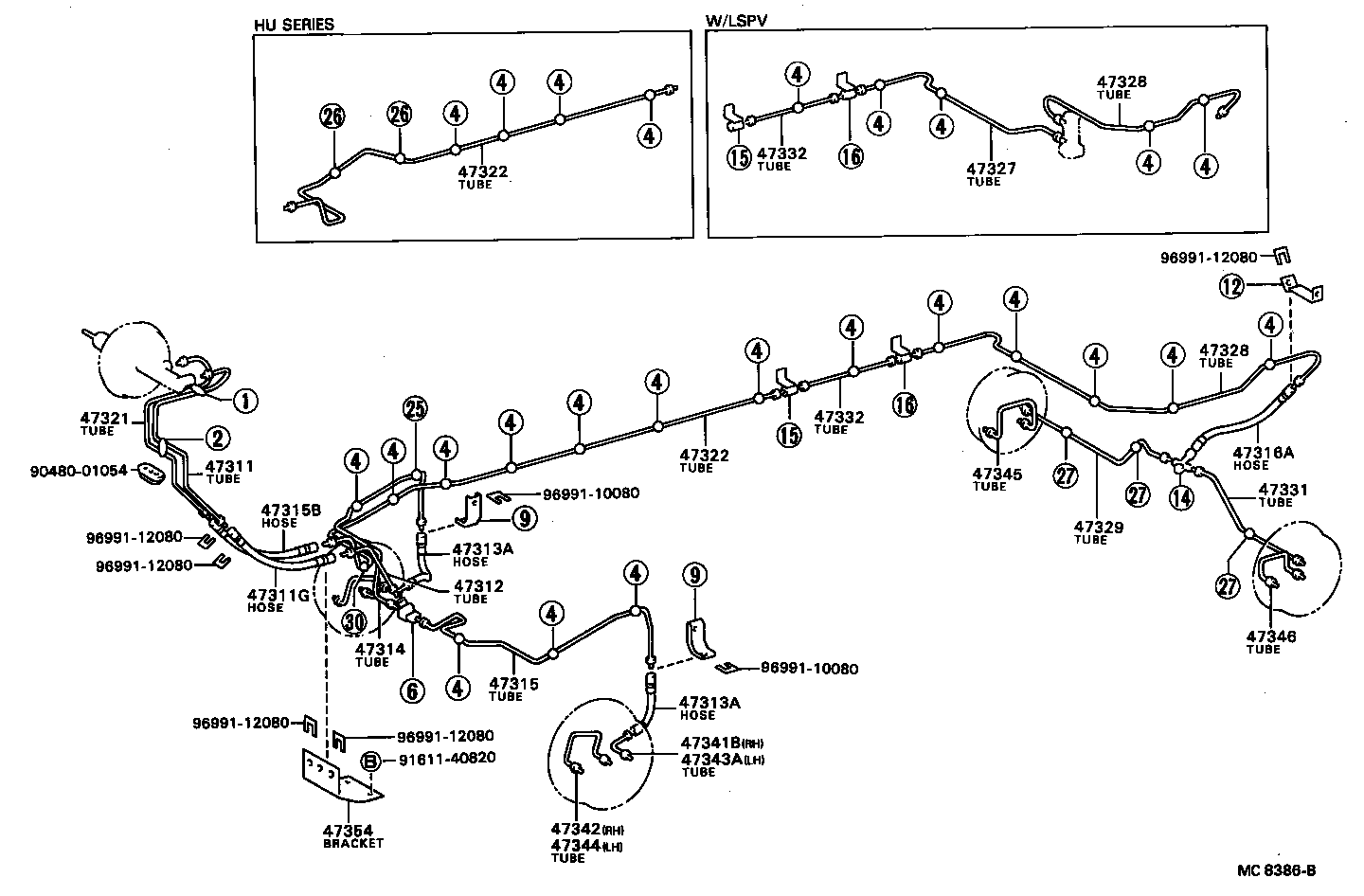

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36230 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36200 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33905 |
BU40,HU40,50,WU40,50 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33905 |
BU40,HU40,50,WU40,50 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36170 |
BU40,HU40,50,WU40..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36160 |
BU40,HU40,50,WU40..RHD |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-33505 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36130 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36120 |
BU40..RHD |
1 | ||
| 47322-36121 |
BU40..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36120 |
BU40..RHD |
1 | ||
| 47322-36121 |
BU40..RHD |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36200 |
HU50;BU40,HU40,WU40..GEN |
1 | ||
| 47328-36200 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36200 |
HU50;BU40,HU40,WU40..GEN |
1 | ||
| 47328-36200 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36180 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36210 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36060 |
BU40,HU40,WU40 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36060 |
BU40,HU40,WU40 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36060 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36050 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36060 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36050 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47342-36050 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47342-36050 |
BU40,HU40,50,WU40,50 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36020 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| Common parts | ||||
| 90480-01054 | ||||
| 91611-40820 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(7708-8408)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 91131-50840 | ||||
| 91611-40816 | ||||
| 91621-40820 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
Click highlighted areas on diagram
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
Click highlighted areas on diagram
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
Click highlighted areas on diagram
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
| 91641-C0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
Click highlighted areas on diagram
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
Click highlighted areas on diagram
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
Click highlighted areas on diagram
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 4 OF 4(0110-0610)XZU414,424..LHD..GEN ; (0110-0610)WU410,XZU412,422..GCC,GEN ; (0212-
Click highlighted areas on diagram
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
Click highlighted areas on diagram
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
