BU40R-MRDT (1982)
Toyota Dyna
Production
Apr 1982
-
Aug 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8212-8408)TB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66311A - HOOK, ROPE, NO.1 | ||||
| 65283-92701 |
BU30,32,36,40,HU40,50,WU40 TYPE D |
1 | ||
| 66312-92801 |
BU30,32,36,40,HU40,50,WU40 TYPE E |
1 | ||
| 66314-92800 |
BU30,32,36,40,HU40,50,WU40 TYPE F |
1 | ||

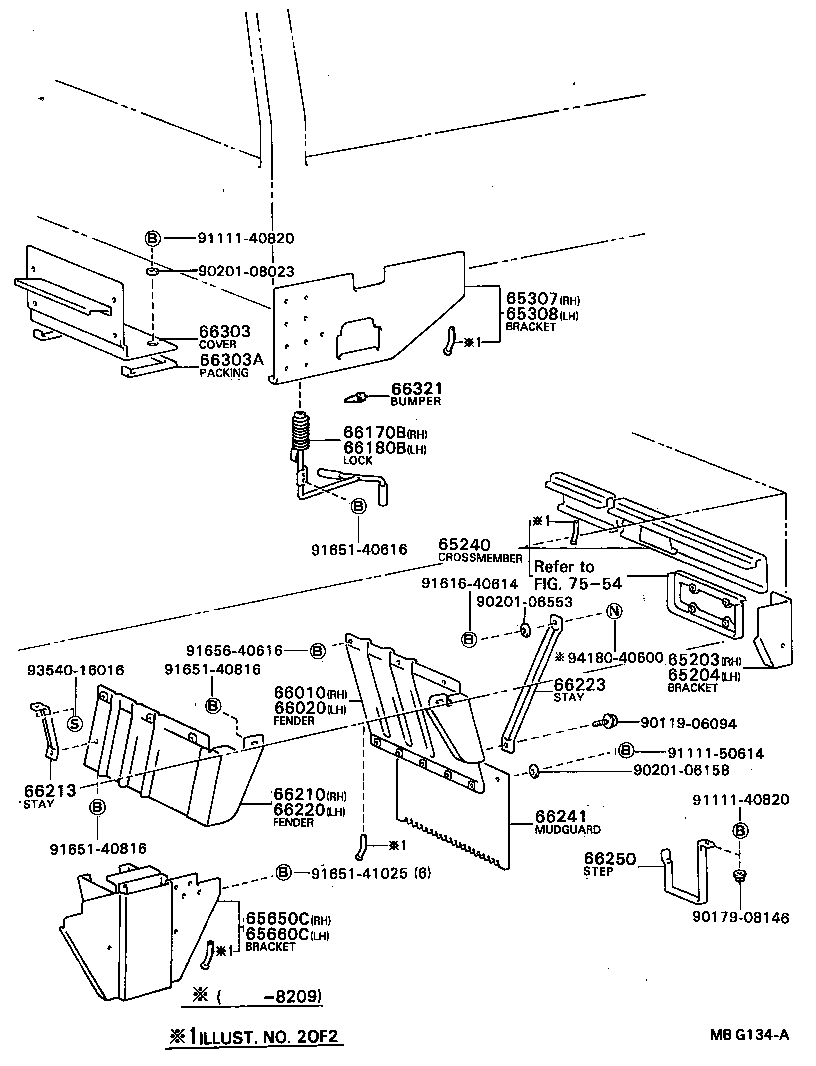

(8204-8408)BU40,HU40,50,WU40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL | ||||
| 65240-92871 |
BU40,HU40,50,WU40 |
1 | ||
| 65307 - BRACKET SUB-ASSY, GUAD FRAME, RH | ||||
| 65307-92800 |
BU30,32,36,40,HU40,50,RU30,WU40..T3,TW1 |
1 | ||
| 65308 - BRACKET SUB-ASSY, GUAD FRAME, LH | ||||
| 65308-92800 |
BU30,32,36,40,HU40,50,RU30,WU40..T3,TW1 |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66203-92870 |
BU40,HU40,50,WU40 |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66204-92870 |
BU40,HU40,50,WU40 |
1 | ||
| 66170B - LOCK ASSY, SIDE GATE, RH | ||||
| 66170-92820 |
BU36,40,HU40,50,WU40 |
1 | ||
| 66180B - LOCK ASSY, SIDE GATE, LH | ||||
| 66180-92820 |
BU36,40,HU40,50,WU40 |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66201-92870 |
BU40,HU40,50,WU40 |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66202-92870 |
BU40,HU40,50,WU40 |
1 | ||
| 66223 - STAY, REAR FENDER REAR PLATE | ||||
| 66217-92820 |
BU40,HU40,50 |
2 | ||
| 66217-92201 |
BU40,HU40,50,WU40 |
2 | ||
| 66241 - MUDGUARD, REAR | ||||
| 66241-92872 |
BU40,HU40,50,WU40 |
2 | ||
| 66241-92872 |
BU40,WU40 LH |
1 | ||
| 66241-92874 |
BU40,WU40 RH |
1 | ||
| 66250 - STEP ASSY, REAR | ||||
| 66251-92870 |
BU40,HU40,50 |
1 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-92703 |
BU36,40,HU40,50,WU40 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90179-08146 | ||||
| 90201-06158 | ||||
| 90201-06553 | ||||
| 90201-08023 | ||||
| 91111-40820 | ||||
| 91111-50614 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-41025 | ||||
| 91656-40616 | ||||
| 93540-16016 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 7554 | ||||
