BU343R-TKMQSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )RHD

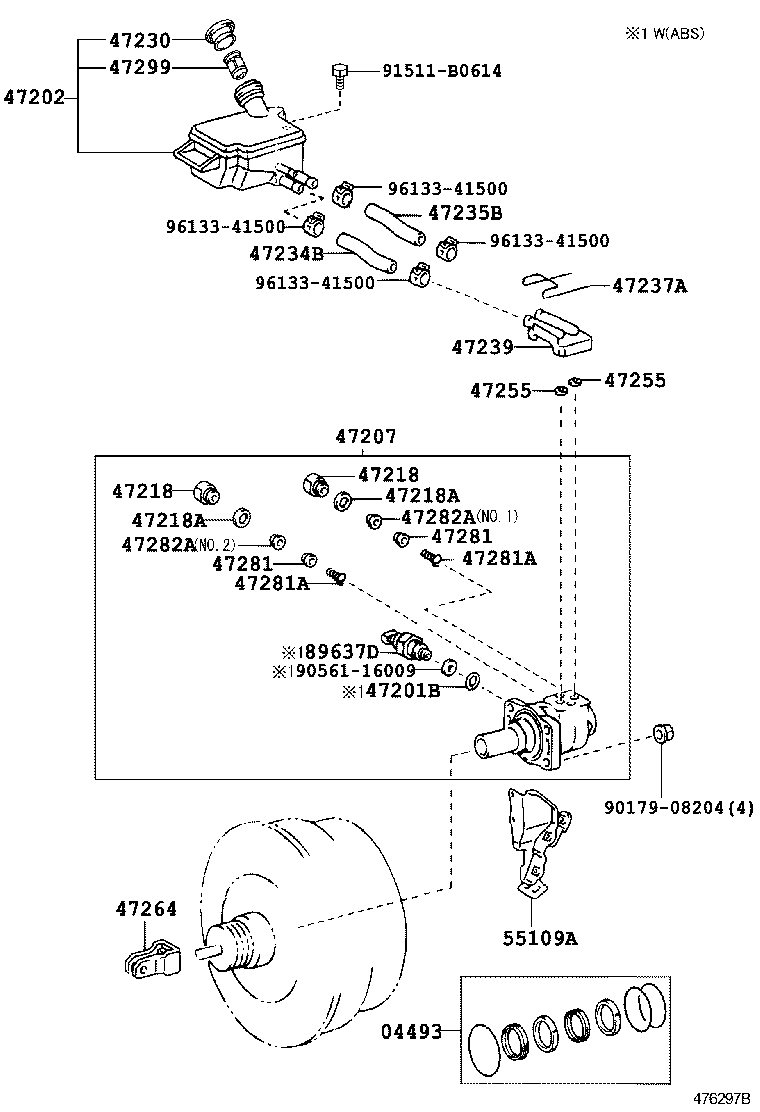

Click highlighted areas on diagram

diagram 04493 47201B 47202 47207 47218 47218 47218A 47218A 47230 47234B 47235B 47237A 47239 47255 47255 47264 47281 47281 47281A 47281A 47282A 47282A 47299 55109A 89637D 9017908204 9056116009 91511B0614 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-36230

BU303,343,WU300,340,XZU342..IDN

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-37051

BU303,343,WU300,340,XZU342..IDN

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-37070

BU303,343,WU300,340,XZU342..IDN

 1
47207-37020

BU303,343,WU300,340,XZU342..IDN

W(DRUM BRAKE)

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-36091

BU303,343,WU300,340,XZU342..IDN

 2
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-36091

BU303,343,WU300,340,XZU342..IDN

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-16013

BU303,343,WU300,340,XZU342..IDN

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-16013

BU303,343,WU300,340,XZU342..IDN

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

BU303,343,WU300,340,XZU342..IDN

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37080

BU303,343,WU300,340,XZU342..IDN

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37070

BU303,343,WU300,340,XZU342..IDN

 1
47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47237-36020

BU303,343,WU300,340,XZU342..IDN

 1
47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR
47239-37010

BU303,343,WU300,340,XZU342..IDN

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

BU303,343,WU300,340,XZU342..IDN

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

BU303,343,WU300,340,XZU342..IDN

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-50010

BU303,343,WU300,340,XZU342..IDN

 1
47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281-36010

BU303,343,WU300,340,XZU342..IDN

 2
47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281-36010

BU303,343,WU300,340,XZU342..IDN

 2
47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE)
90905-01054

BU303,343,WU300,340,XZU342..IDN

 2
47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE)
90905-01054

BU303,343,WU300,340,XZU342..IDN

 2
47282A - SEAT, OUTLET CHECK VALVE, NO.1
47282-36010

BU303,343,WU300,340,XZU342..IDN

NO.1 & NO.2

 2
47282A - SEAT, OUTLET CHECK VALVE, NO.1
47282-36010

BU303,343,WU300,340,XZU342..IDN

NO.1 & NO.2

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

BU303,343,WU300,340,XZU342..IDN

 1
55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55109-37010

BU303,343,WU300,340,XZU342..IDN

 1
Common parts
90179-08204
90561-16009
91511-B0614
96133-41500
