BU343R-TKMQSD3 (2002)
Toyota Dyna
Production
Sep 2002
-
Dec 2006
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )BU303,343

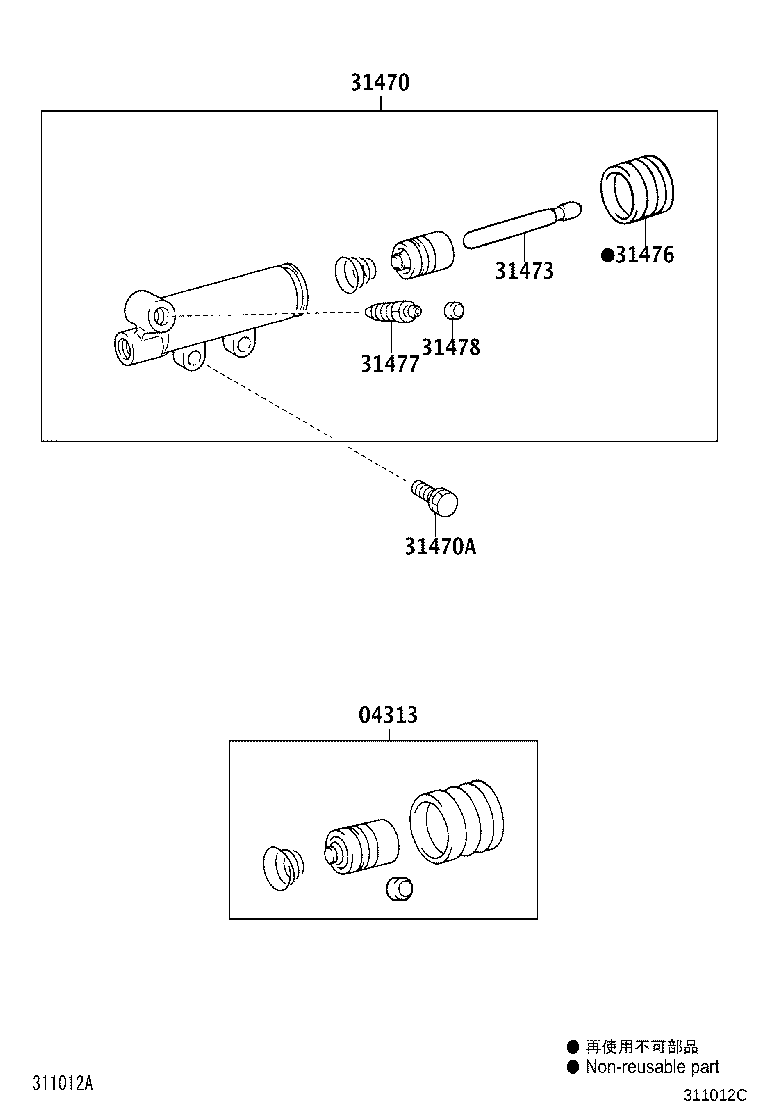

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-36150 |
BU303,343..IDN |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-36213 |
BU303,343..IDN |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-G0820 |
BU303,343..IDN *8-1.25PX20-20 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-22010 |
BU303,343..IDN |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-22010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
(0209- )BU300,340,WU30#,34#,352,XZU30#,32#,33#,34#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-36150 |
BU303,343..IDN |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-36213 |
BU303,343..IDN |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-G0820 |
BU303,343..IDN *8-1.25PX20-20 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-22010 |
BU303,343..IDN |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-22010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
BU303,343,WU300,340,XZU342..IDN |
1 | ||
