BU343R-TKMQSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )14B

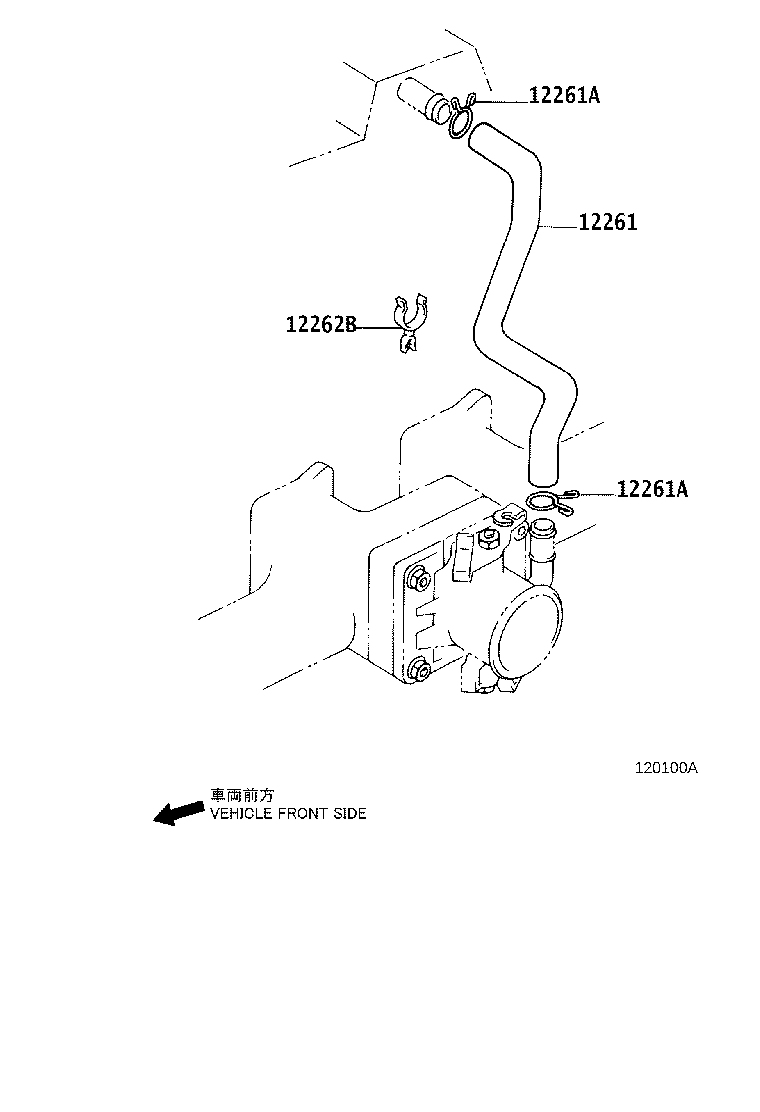

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262B
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-0W020

14B..BU303,343..IDN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

14B..BU303,343

 2
90467-23002

14B,15BFTE..BU30#,34#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

14B..BU303,343

 2
90467-23002

14B,15BFTE..BU30#,34#

 2
12262B - CLAMP(FOR VENTILATION HOSE)
90464-00521

14B..BU303,343

 1
