BU343R-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212-0610)RHD..GEN

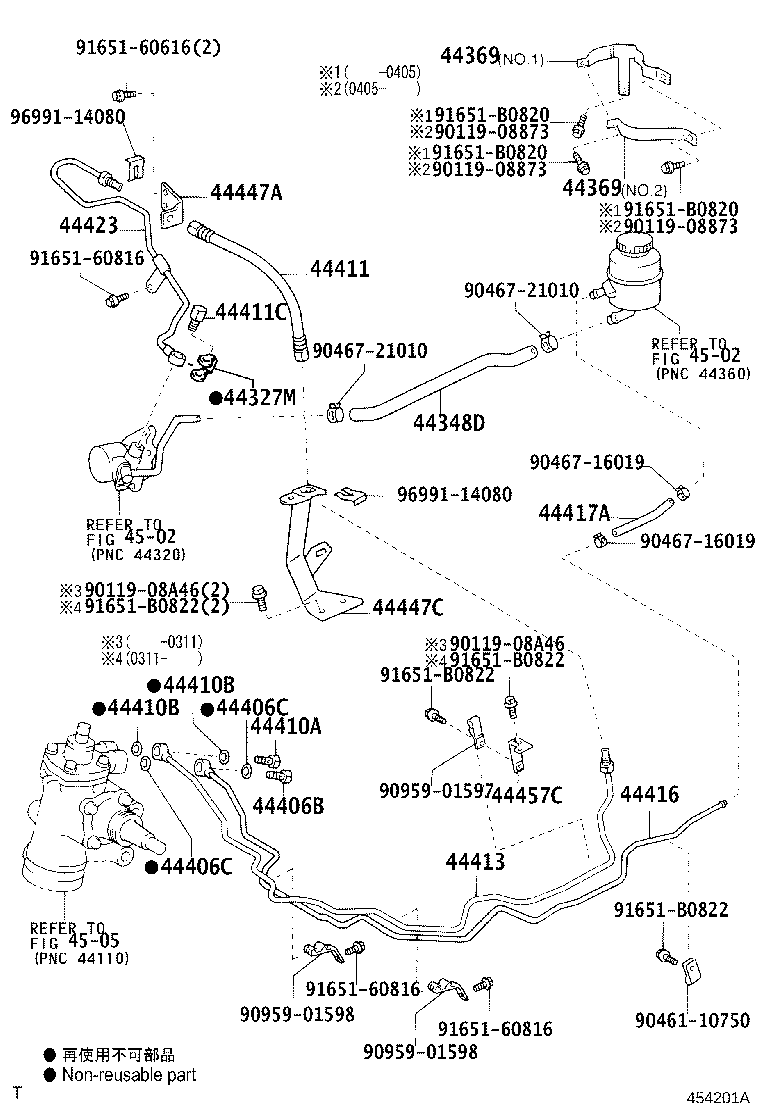

Click highlighted areas on diagram

diagram 44327M 44348D 44369 44369 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44413 44416 44417A 44423 44447A 44447C 44457C 4502 4502 4505 9011908873 9011908873 9011908873 9011908A46 9011908A46 9046110750 9046716019 9046716019 9046721010 9046721010 9095901597 9095901598 9095901598 9165160616 9165160816 9165160816 9165160816 91651B0820 91651B0820 91651B0820 91651B0822 91651B0822 91651B0822 91651B0822 9699114080 9699114080
Part # Description Qty Price
44327M - GASKET, PRESSURE PORT, NO.2
44327-30030

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37300

BU303,343..GEN

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37040

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

NO.1

 1
44369-37100

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

NO.2

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37040

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

NO.1

 1
44369-37100

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

NO.2

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
44411 - HOSE, PRESSURE FEED
44411-37141

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-37160

BU303,343..RHD..GEN

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37420

BU303,343..RHD..GEN

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
44412-37120

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37060

BU303,343..GEN

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37020

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37060

BU30#,34#,WU300,340..ARL,GCC,GEN

 1
44447-37061

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37090

BU303,343..RHD..GEN

 1
Common parts
90119-08873
90119-08A46
90461-10750
90467-16019
90467-21010
90959-01597
90959-01598
91651-60616
91651-60816
91651-B0820
91651-B0822
96991-14080
Linked diagrams
4502
4505
