BU343R-TKMQS (2002)
Toyota Dyna
ILLUST NO. 4 OF10(0212-0610)BU300,340,XZU300,320,330,340 ; (1706-)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1703 | ||||
| 4503 | ||||

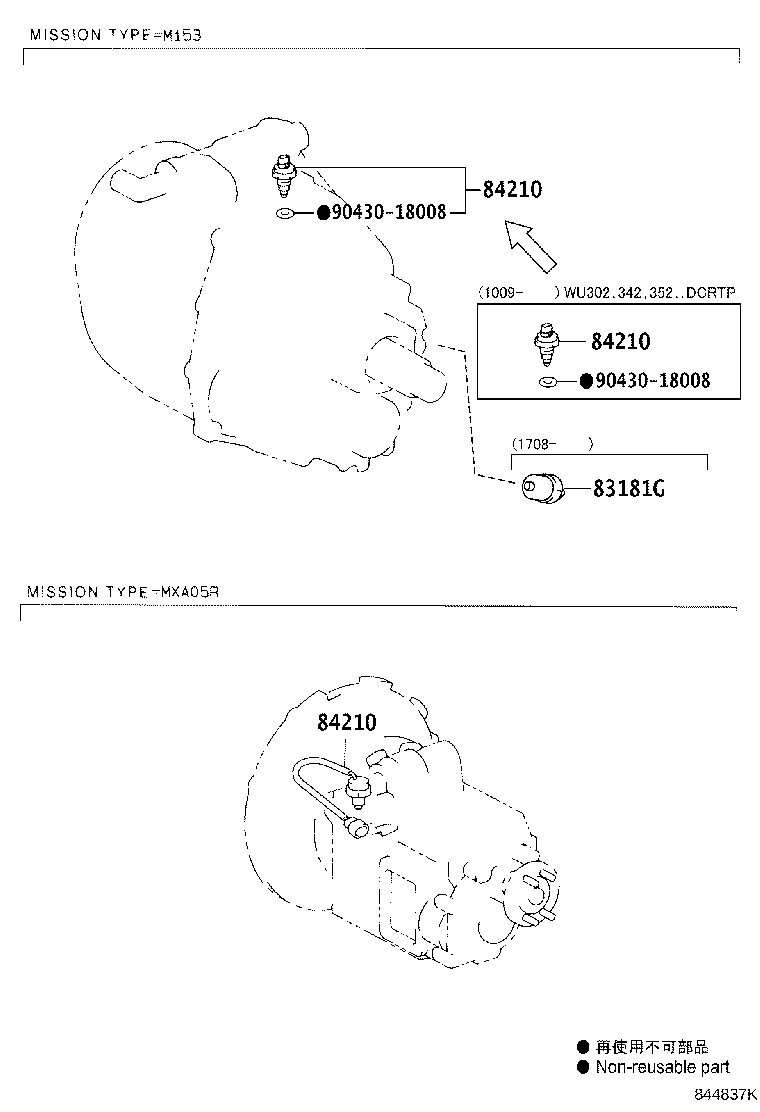

ILLUST NO. 2 OF10(0209-0612)BU303,343 ; (0209- )WU302..IDN ; (0209- )WU300,34#,352..DCRTH,DCRT
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-37010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
ILLUST NO. 1 OF10(0209-0612)BU30#,34#,XZU300,320,330,340
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BU303,343..GEN |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28030 |
BU303,343..GEN |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-36010 |
BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| 89422-37030 |
BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37020 |
BU303,343..GEN |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| Common parts | ||||
| 90430-16010 | ||||
| 91651-60614 | ||||

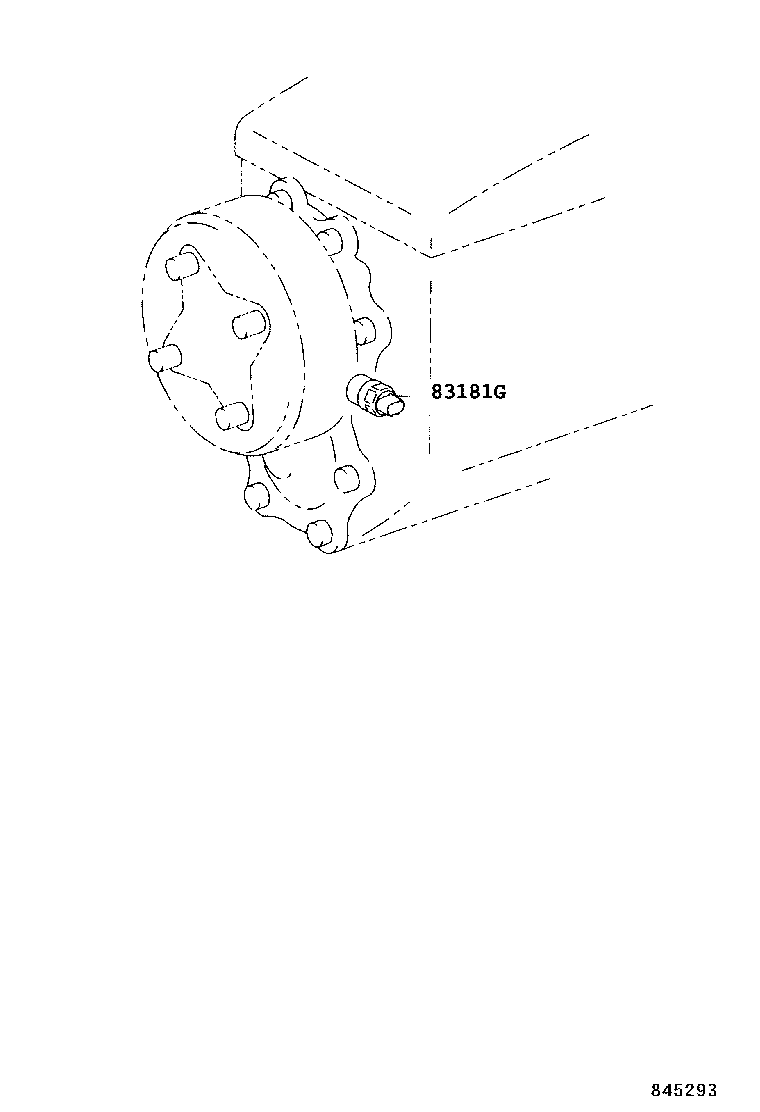

ILLUST NO. 3 OF10(0212-0610)GCC,GEN ; (0304-0812)SA ; (0610-1106)WU300,340..GCC,GEN
SPEEDOMETER SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-37010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||

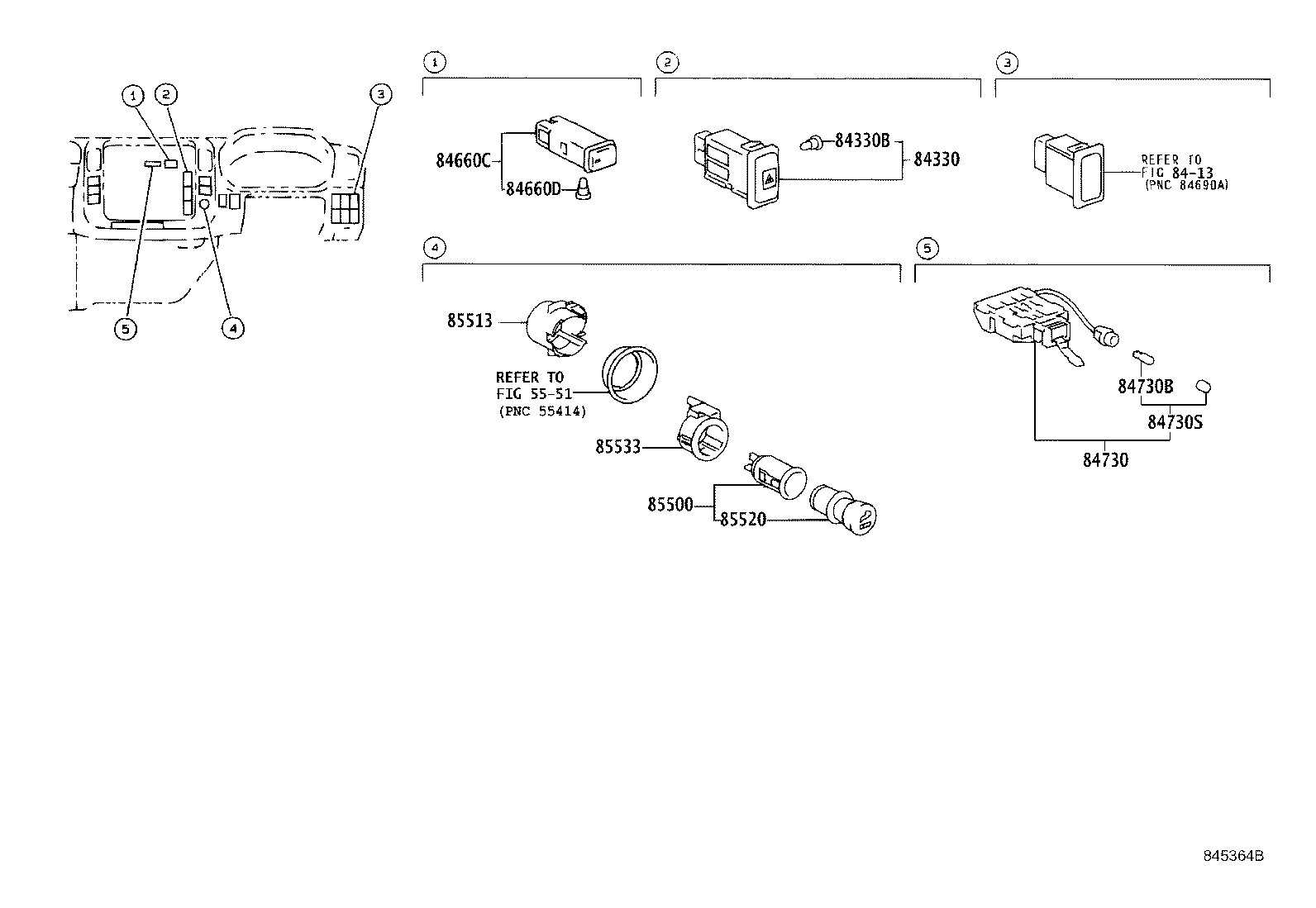

ILLUST NO. 7 OF10(0212-0610)BU30#,34#..RHD..ARL,GEN ; (0304-0812)SA ; (0610-1106)RHD..CBU
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 28V 0.024A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W,W(CAP) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8413 | ||||

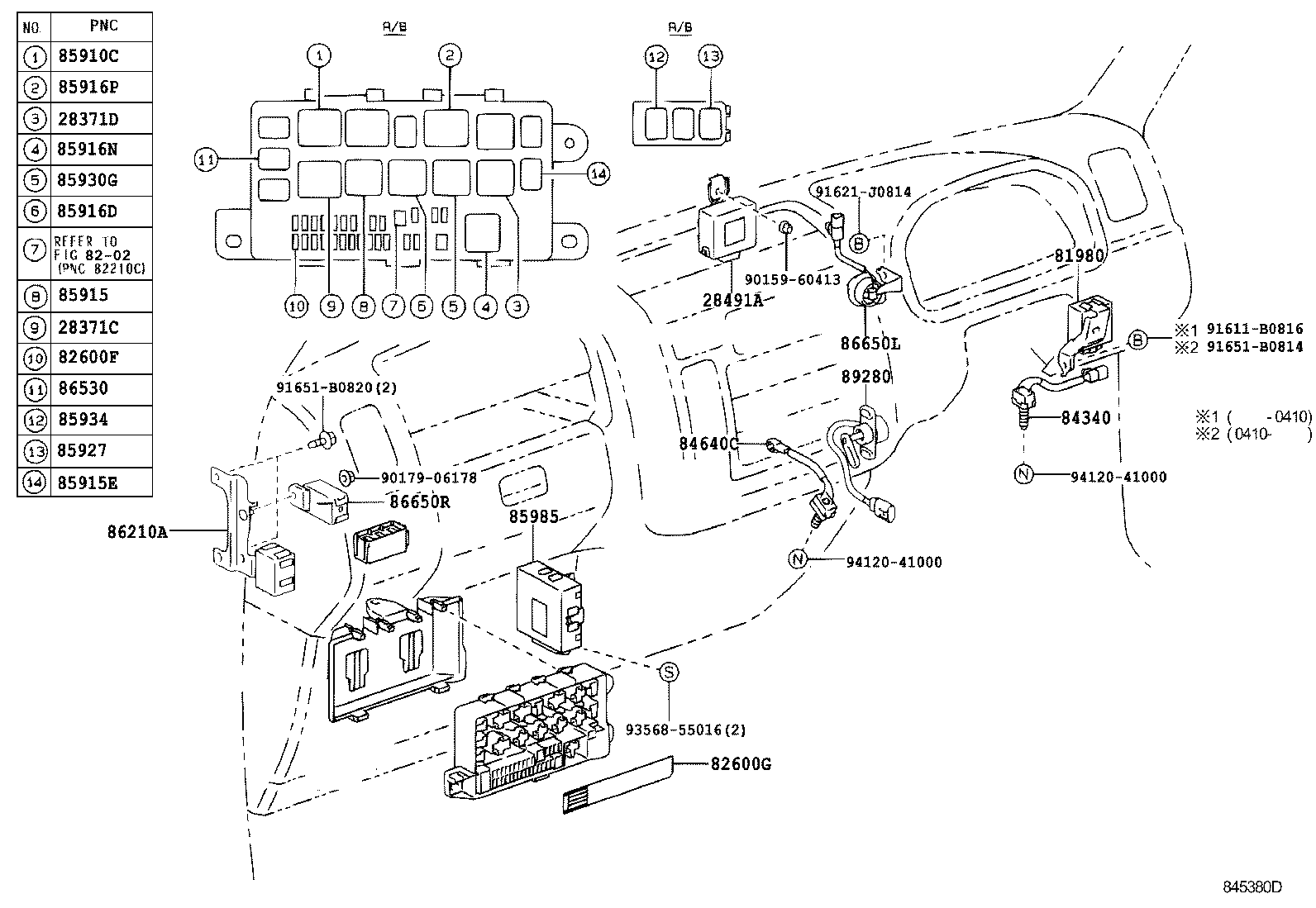

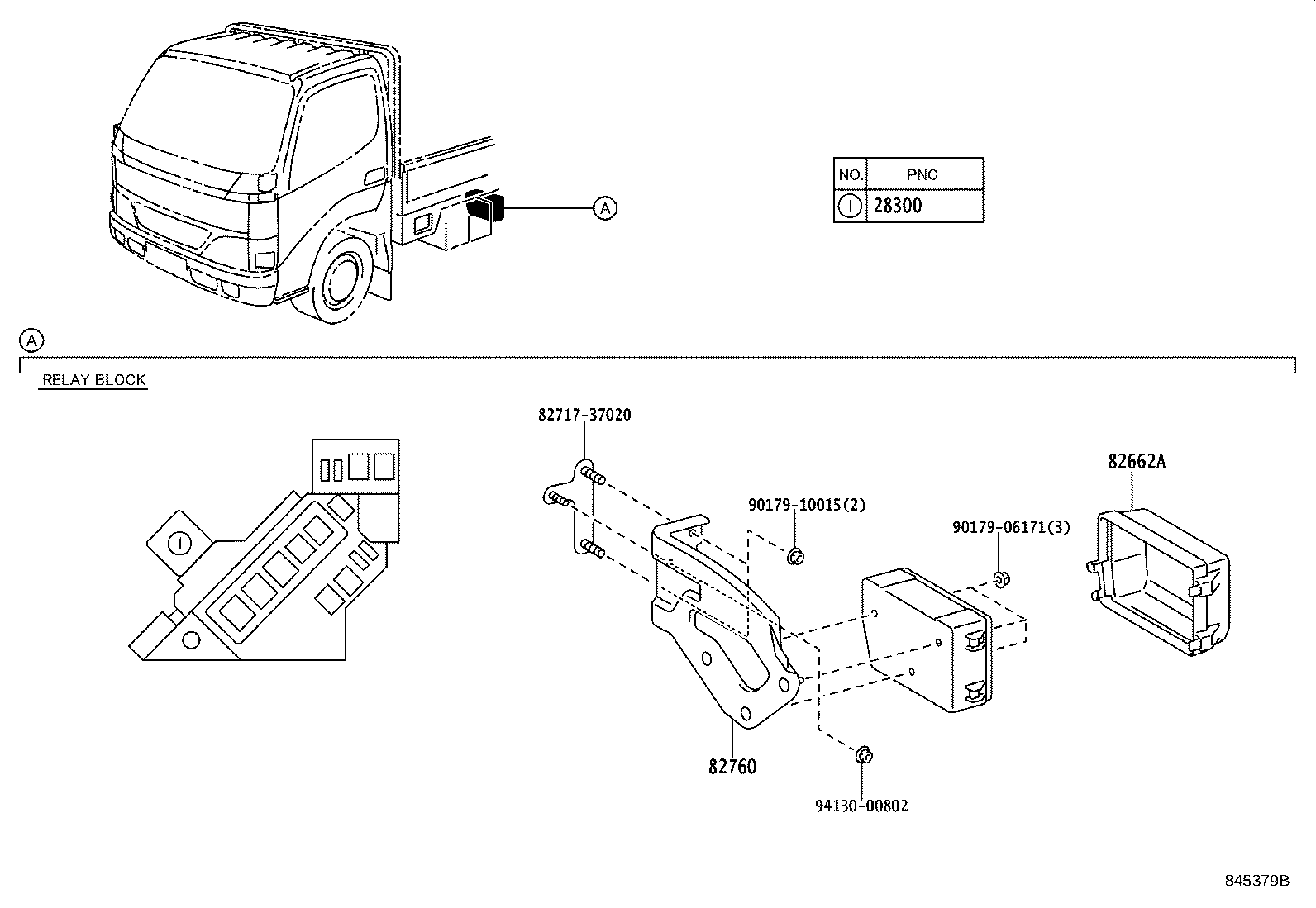

ILLUST NO. 6 OF10(0212-0610)GCC,GEN
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58040 |
14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37191 |
BU303,343..GEN |
1 | ||
| 82662-37190 |
BU303,343..GEN |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37070 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 82717-37020 | ||||
| 90179-06171 | ||||
| 90179-10015 | ||||
| 94130-00802 | ||||
ILLUST NO. 5 OF10(0212-0610)RHD..ARL,GEN ; (0304-0812)SA
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
BU303,343..RHD..GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 7.5A,MINI FUSE,BRN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37301 |
BU303,343..GEN ENGLISH & FRENCH |
1 | ||
| 82683-37300 |
BU303,343..GEN ENGLISH & FRENCH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90159-60413 | ||||
| 90179-06178 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

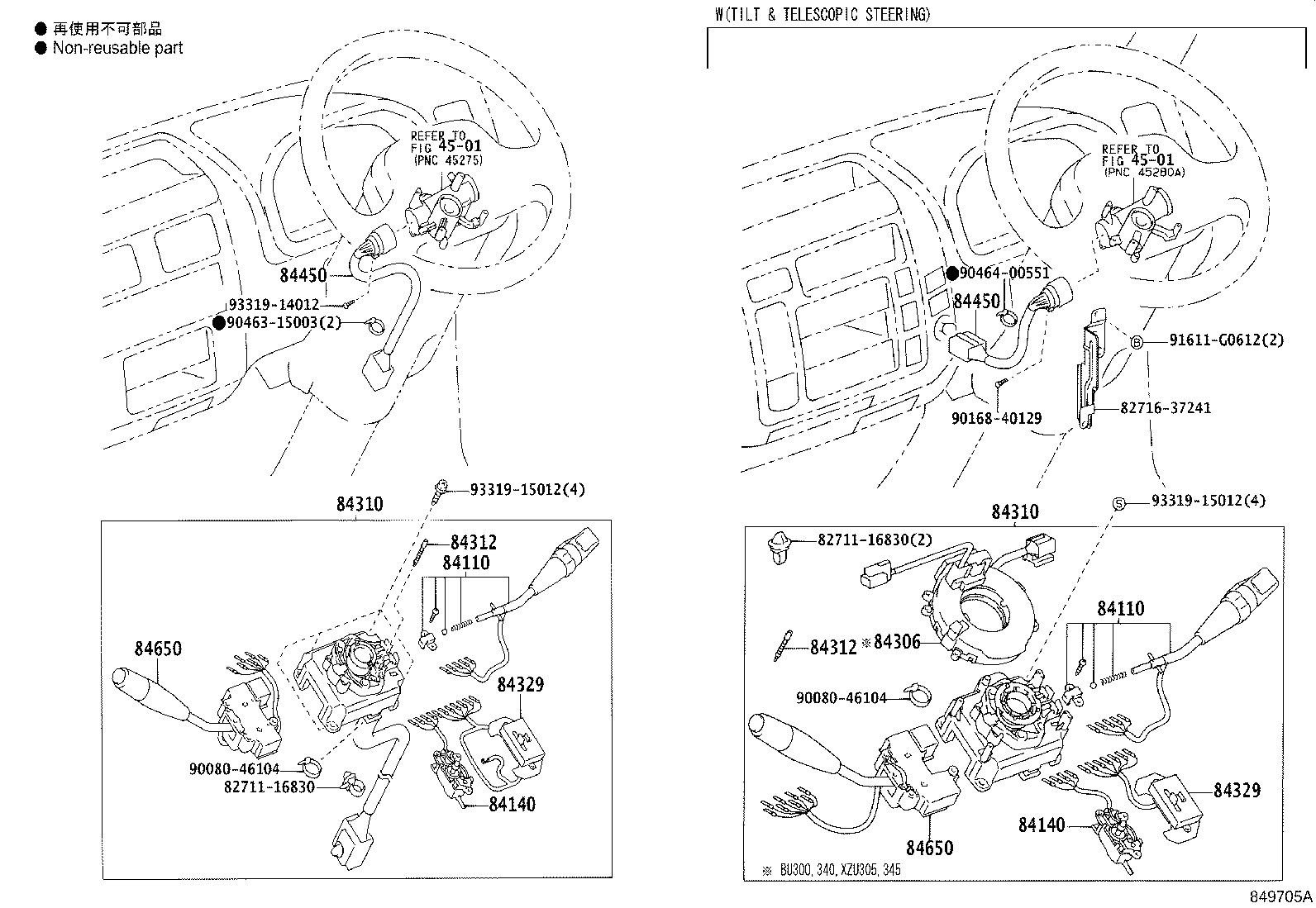

ILLUST NO. 8 OF10(0209-0612)BU303,343,WU300,340..IDN ; (0212-0610)RHD..ARL,GEN ; (0304-0812)SA ; (06
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80222 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80221 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84112-80234 |
BU303,343..RHD..GEN W(FOG LAMP) |
1 | ||
| 84112-80235 |
BU303,343..RHD..GEN |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80222 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80221 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84112-80234 |
BU303,343..RHD..GEN W(FOG LAMP) |
1 | ||
| 84112-80235 |
BU303,343..RHD..GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37050 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37050 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37190 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310-37230 |
BU303,343,WU300,340..RHD..(GEN,IDN) W(FOG LAMP) |
1 | ||
| 84310-37170 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84310-37240 |
BU303,343..RHD..GEN |
1 | ||
| 84310-37171 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84310-37191 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310-37231 |
BU303,343..RHD..GEN W(FOG LAMP) |
1 | ||
| 84310-37241 |
BU303,343..RHD..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37190 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310-37230 |
BU303,343,WU300,340..RHD..(GEN,IDN) W(FOG LAMP) |
1 | ||
| 84310-37170 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84310-37240 |
BU303,343..RHD..GEN |
1 | ||
| 84310-37171 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING & FOG LAMP) |
1 | ||
| 84310-37191 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310-37231 |
BU303,343..RHD..GEN W(FOG LAMP) |
1 | ||
| 84310-37241 |
BU303,343..RHD..GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU303,343..RHD..GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU303,343..RHD..GEN |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37070 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84329-37100 |
BU303,343..RHD..GEN |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37070 |
BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84329-37100 |
BU303,343..RHD..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37120 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 84450-37160 |
BU303,343,WU300,340..GCC,GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37120 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 84450-37160 |
BU303,343,WU300,340..GCC,GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37010 |
XZU342;BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84652-37250 |
BU303,343,WU300,340..RHD..(GEN,IDN) |
1 | ||
| 84652-37251 |
BU303,343..RHD..GEN |
1 | ||
| 84652-37011 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37010 |
XZU342;BU303,343..RHD..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84652-37250 |
BU303,343,WU300,340..RHD..(GEN,IDN) |
1 | ||
| 84652-37251 |
BU303,343..RHD..GEN |
1 | ||
| 84652-37011 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(TILT & TELESCOPIC STEERING) |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37241 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
