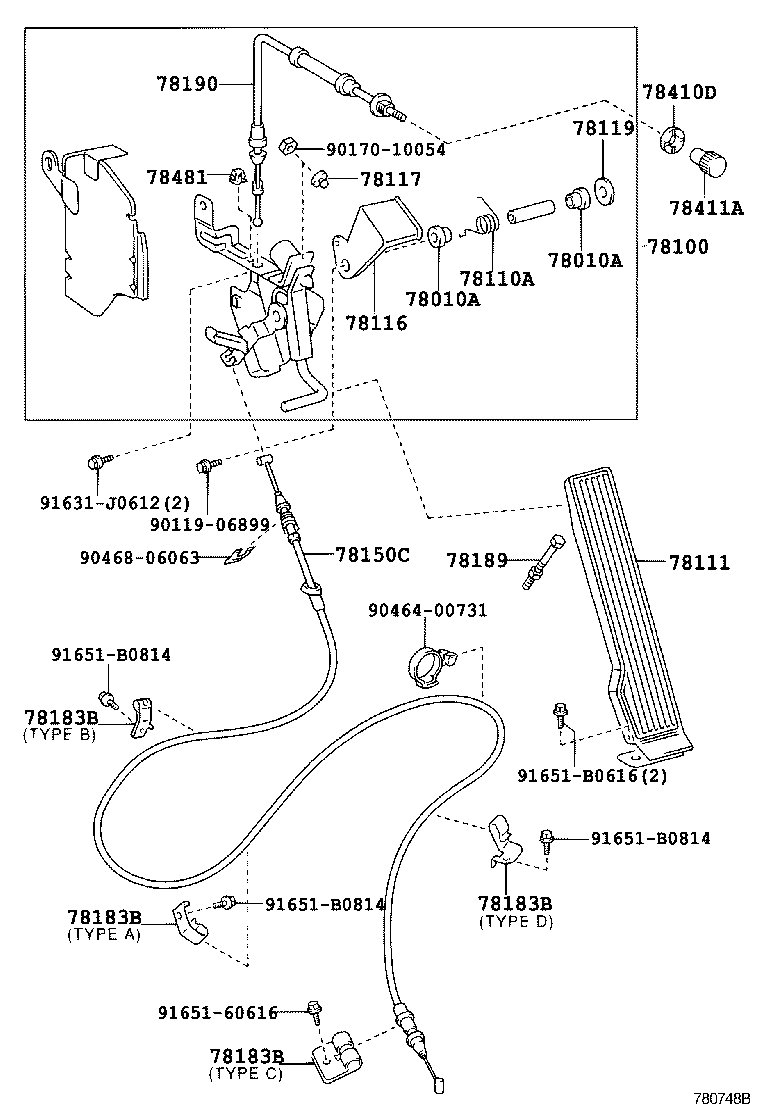

BU343R-TKMQS (2002)
Toyota Dyna
(0212- )BU303,343..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37600 |
BU303,343..RHD..GEN |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03243 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-95J00 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37600 |
BU303,343..RHD..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU303,343..GEN TYPE A:REFER ILLUST. |
1 | ||
| 78183-37330 |
BU303,343..GEN TYPE C:REFER ILLUST. |
1 | ||
| 78183-37380 |
BU303,343..RHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 78183-37300 |
BU303,343..RHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU303,343..GEN TYPE A:REFER ILLUST. |
1 | ||
| 78183-37330 |
BU303,343..GEN TYPE C:REFER ILLUST. |
1 | ||
| 78183-37380 |
BU303,343..RHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 78183-37300 |
BU303,343..RHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU303,343..GEN TYPE A:REFER ILLUST. |
1 | ||
| 78183-37330 |
BU303,343..GEN TYPE C:REFER ILLUST. |
1 | ||
| 78183-37380 |
BU303,343..RHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 78183-37300 |
BU303,343..RHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU303,343..GEN TYPE A:REFER ILLUST. |
1 | ||
| 78183-37330 |
BU303,343..GEN TYPE C:REFER ILLUST. |
1 | ||
| 78183-37380 |
BU303,343..RHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 78183-37300 |
BU303,343..RHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37060 |
BU303,343..RHD..GEN |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
BU303,343..RHD..GEN |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90170-10054 | ||||
| 90464-00731 | ||||
| 90468-06063 | ||||
| 91631-J0612 | ||||
| 91651-60616 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
