BU343R-TKMQS (2002)
Toyota Dyna

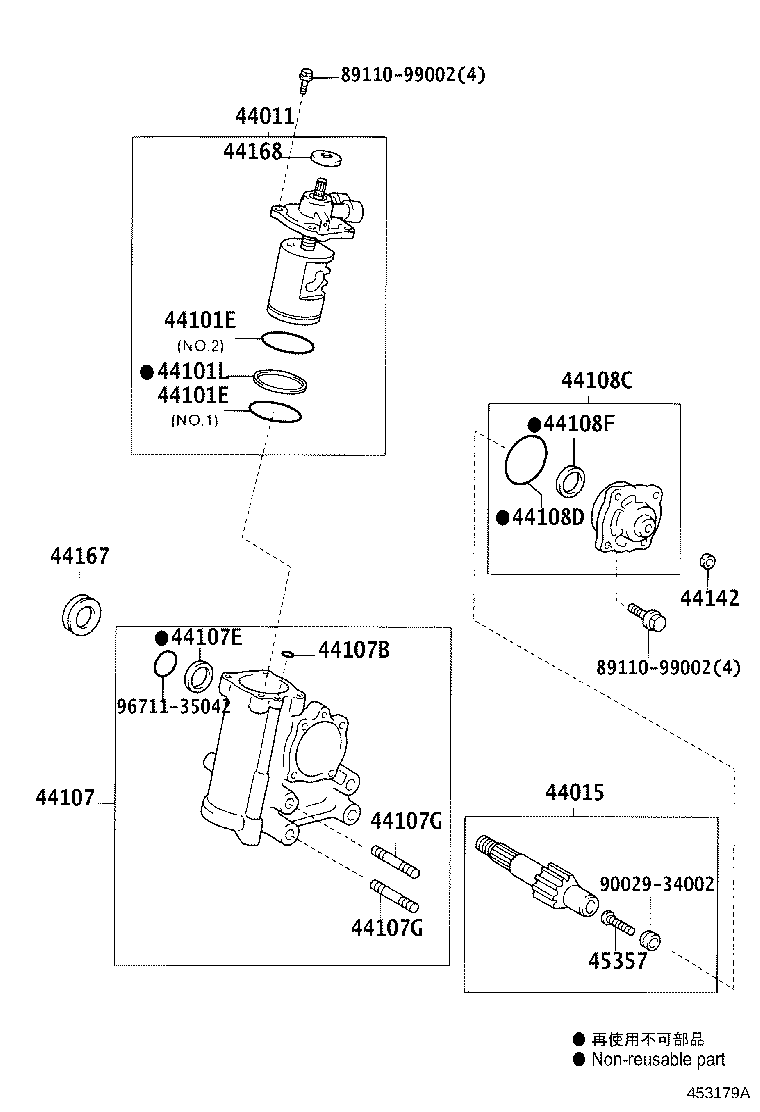

ILLUST NO. 2 OF 3(0209-0612)BU30#,34#,XZU305,342,345..RHD ; (0304-0712)SA
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37110 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO.2 |
1 | ||
| 90029-20047 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO.1 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO.2 |
1 | ||
| 90029-20047 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW NO.1 |
1 | ||
| 44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY) | ||||
| 90029-20708 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37090 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20006 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 90029-02302 |
BU303,343,WU300,340..GCC,GEN POWER STEERING |
1 | ||
| Common parts | ||||
| 89110-99002 | ||||
| 90029-34002 | ||||
| 96711-35042 | ||||
ILLUST NO. 3 OF 3(0209-0612)WU340..RHD..IV3 ; (0209-0612)BU30#,34#,WU300,XZU305,342,345..RHD ; (0612
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39416 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39256 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39206 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39516 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37050 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39125 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39245 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||

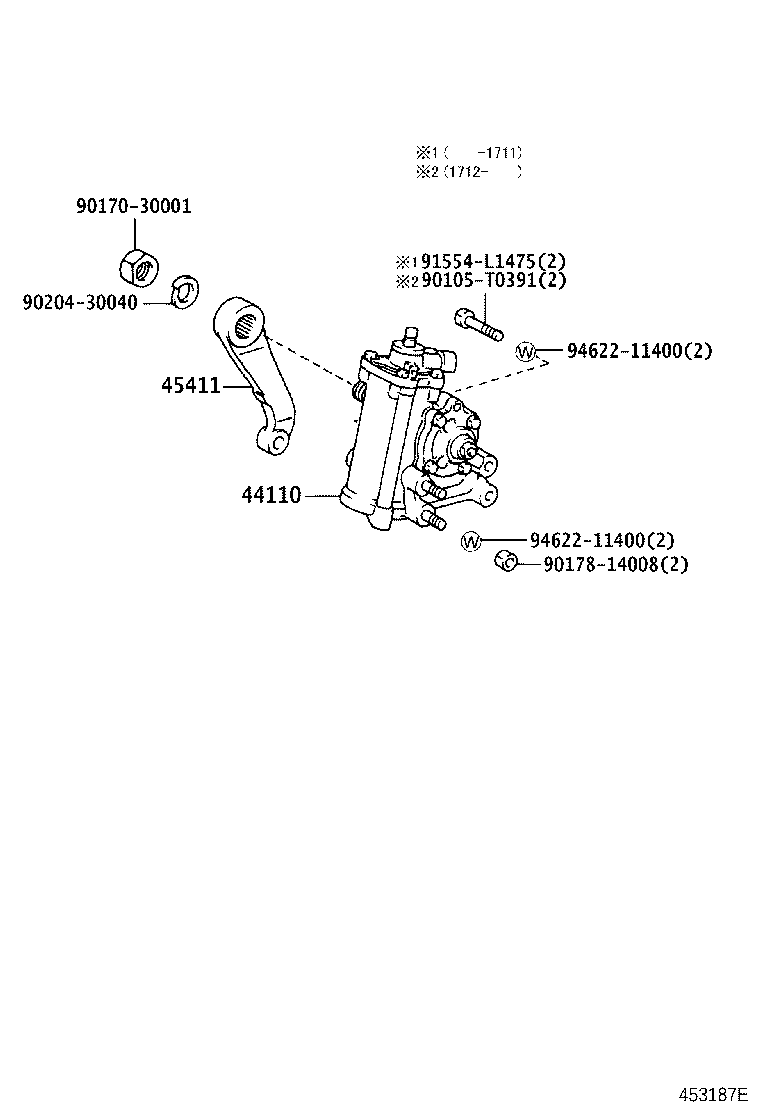

ILLUST NO. 1 OF 3(0209-0612)BU30#,34#,XZU305,342,345..RHD ; (0304-0712)SA
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37110 |
BU303,343,XZU305,345..RHD..(ARL,GEN) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37200 |
BU303,343..RHD..GEN W(MANUAL STEERING) |
1 | ||
| 45411-37130 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90105-T0391 | ||||
| 90170-30001 | ||||
| 90178-14008 | ||||
| 90204-30040 | ||||
| 91554-L1475 | ||||
| 94622-11400 | ||||

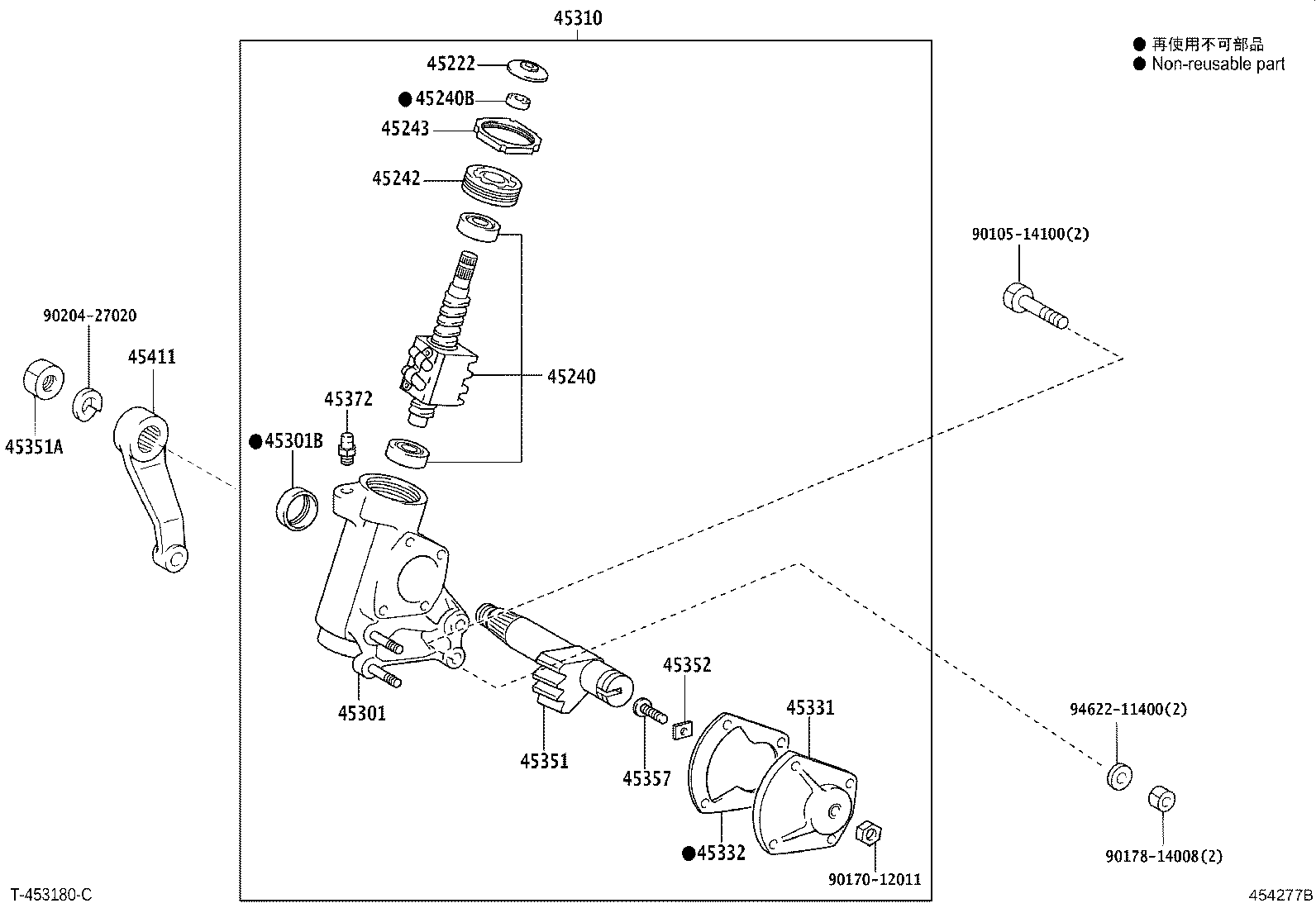

ILLUST NO. 1 OF 3(0209-0612)WU340..IDN ; (0209-0612)BU303,343,WU300..RHD..GEN,IDN
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-0W010 |
BU303,343..RHD..GEN |
1 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-0W010 |
BU303,343..RHD..GEN |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-38033 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-0W010 |
BU303,343..RHD..GEN |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36060 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36040 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36051 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-37010 |
BU303,343,WU300,340..GCC,GEN T=1.95 |
1 | ||
| 45353-37010 |
BU303,343,WU300,340..GCC,GEN T=2.00 |
1 | ||
| 45354-37010 |
BU303,343,WU300,340..GCC,GEN T=2.05 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 90029-02302 |
BU303,343,WU300,340..GCC,GEN POWER STEERING |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37200 |
BU303,343..RHD..GEN W(MANUAL STEERING) |
1 | ||
| 45411-37130 |
BU303,343,XZU305,345..RHD..(ARL,GEN) W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90105-14100 | ||||
| 90170-12011 | ||||
| 90178-14008 | ||||
| 90204-27020 | ||||
| 94622-11400 | ||||
