BU343R-TKMMS (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0212-0610)RHD..ARL,GEN,SA ; (0610- )BU303,343,WU300,340,XZU342..RHD

Click highlighted areas on diagram

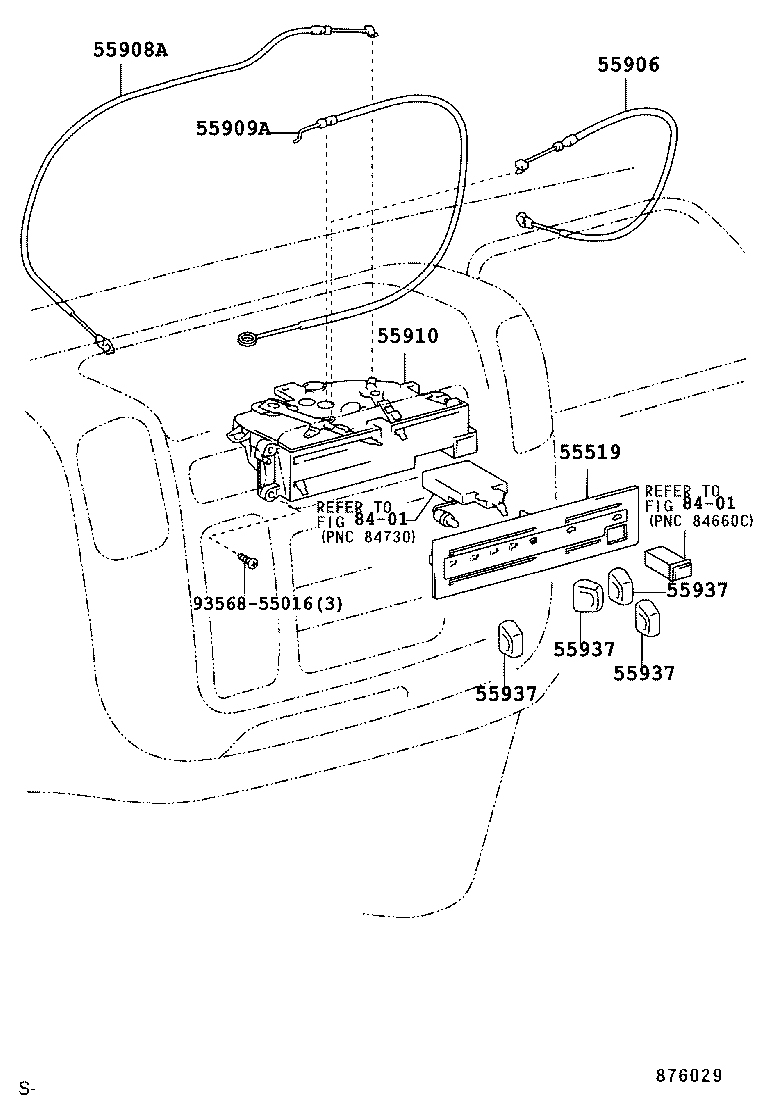

CONTROL PANEL

diagram 55519 55906 55908A 55909A 55910 55937 55937 55937 55937 8401 8401 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37080

BU303,343..RHD..GEN

W/O(AIR CONDITIONER)

 1
55519-37150

BU303,343..RHD..GEN

W(BOOST VENTILATOR)

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37050

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37030

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37040

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37061

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
55910-37110

BU303,343..RHD..GEN

W(BOOST VENTILATOR)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
Common parts
93568-55016
Linked diagrams
8401

ILLUST NO. 2 OF 2(0212- )RHD..DCR,DCRTH,DCRTJ,DSL,TD

Click highlighted areas on diagram

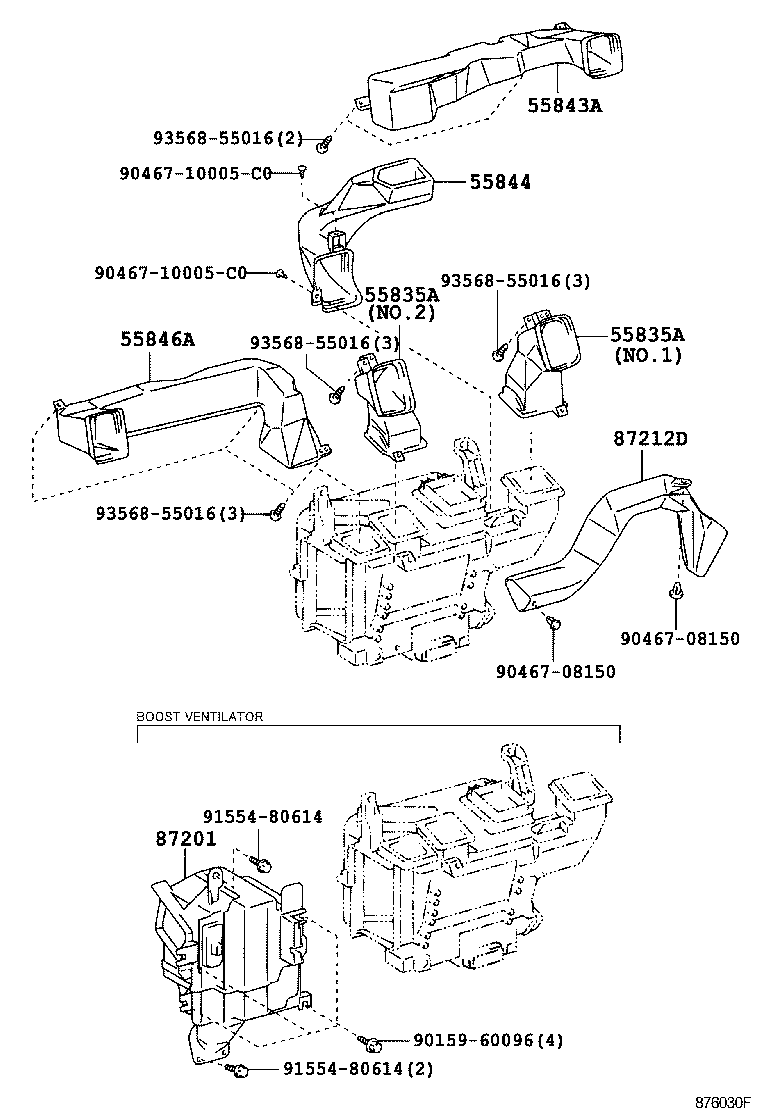

AIR DUCT

diagram 55835A 55835A 55843A 55844 55846A 87201 87212D 9015960096 9046708150 9046708150 9046710005C0 9046710005C0 9155480614 9155480614 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37020

BU30#,34#,WU300,340..RHD..(ARL,GEN,SA)

NO.2

 1
55835-37010

BU303,343,XZU305,345..RHD..(ARL,GEN)

NO.1

 1
55835-37090

BU303,343,XZU305,345..RHD..(ARL,GEN)

NO.2

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37020

BU30#,34#,WU300,340..RHD..(ARL,GEN,SA)

NO.2

 1
55835-37010

BU303,343,XZU305,345..RHD..(ARL,GEN)

NO.1

 1
55835-37090

BU303,343,XZU305,345..RHD..(ARL,GEN)

NO.2

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-25020

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
55843-25020

BU303,343,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37030

BU30#,34#,WU300,340..RHD..(ARL,GEN,SA)

 1
55844-37031

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37050

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-37120

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87212D - DUCT, HEATER TO FOOT, NO.1
87212-37010

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
Common parts
90159-60096
90467-08150
90467-10005C0
91554-80614
93568-55016
