BU340R-TKMMWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Dec 2003
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

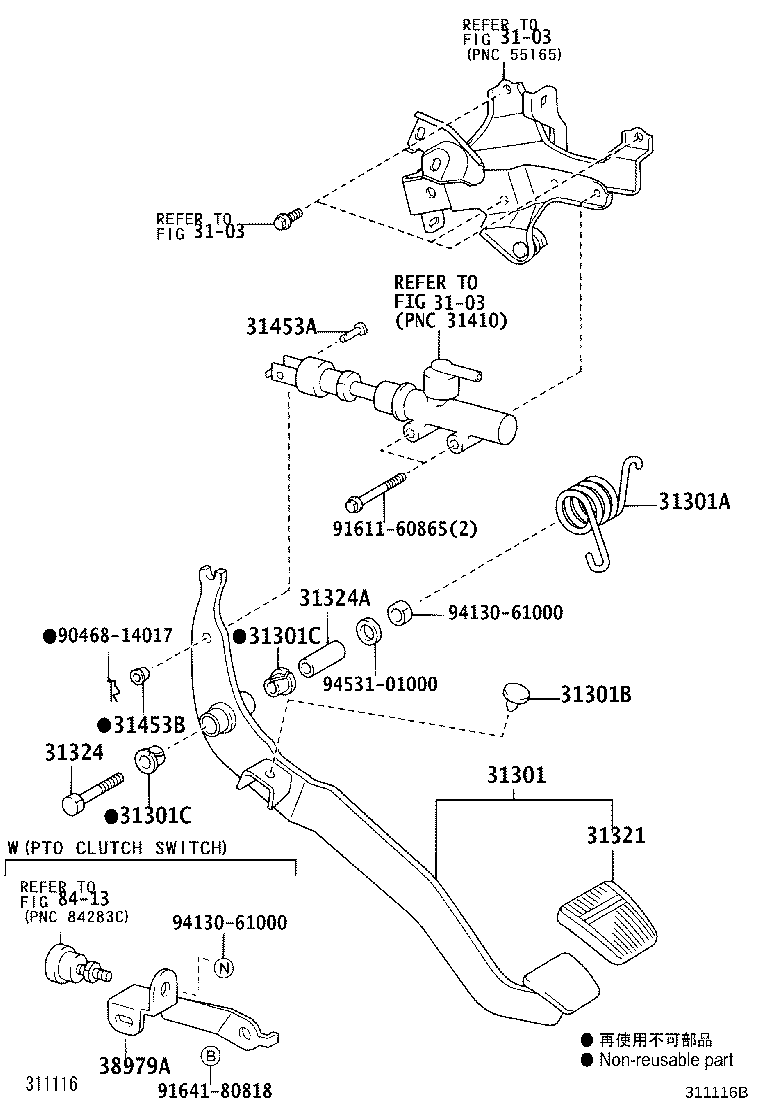

ILLUST NO. 1 OF 2(0212-0312)BU300,340

Click highlighted areas on diagram

diagram 3103 3103 3103 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 31453A 31453B 38979A 8413 9046814017 9161160865 9164180818 9413061000 9413061000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37161

BU300,340

W(PTO)

 1
31301-37170

BU300,340

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03344

BU300,340

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

BU300,340

 1
90541-06036

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU300,340

 2
90386-13007

BU303,343..RHD..GEN;XZU30#,320,330,340,345

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU300,340

 2
90386-13007

BU303,343..RHD..GEN;XZU30#,320,330,340,345

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

BU300,340

 1
31324 - SHAFT, CLUTCH PEDAL
91112-61070

BU300,340

 1
91112-61070

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
90387-10004

BU300,340

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU300,340

L=23.5

 1
90240-08006

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU300,340

 1
90386-08002

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37011

BU300,340

 1
Common parts
90468-14017
91611-60865
91641-80818
94130-61000
94531-01000
Linked diagrams
3103
8413
