BU32L-QRDT (1981)
Toyota Dyna
Production
Apr 1981
-
Apr 1982
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8408)LHD

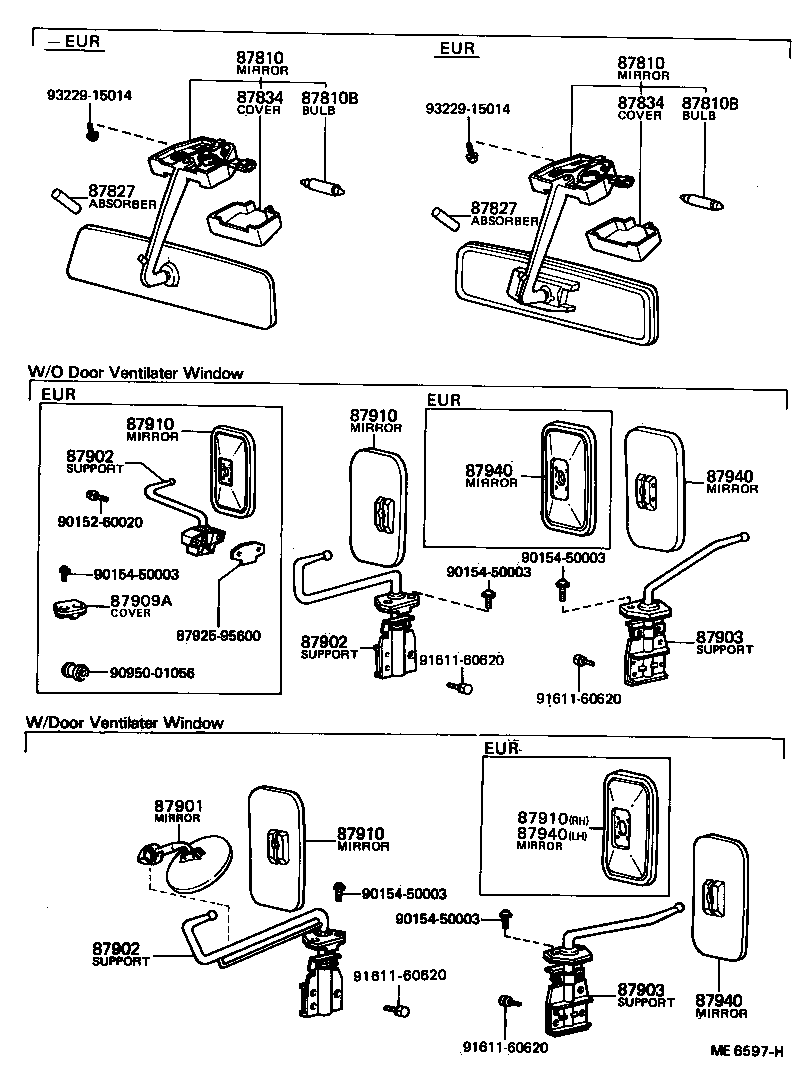

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11004 |
BU30..5F;BU30..5H..(GEN,GHI)..(CBU,IV3);BU2#,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..(ARL,GEN)..(CBU,IV3) 12V 10W,12V 10W |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11004 |
BU30..5F;BU30..5H..(GEN,GHI)..(CBU,IV3);BU2#,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..(ARL,GEN)..(CBU,IV3) 12V 10W,12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-23010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=40.5 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-23010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=40.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95401 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95401 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| Common parts | ||||
| 87925-95600 | ||||
| 90152-60020 | ||||
| 90154-50003 | ||||
| 90950-01056 | ||||
| 91611-60620 | ||||
| 93229-15014 | ||||
