BU30R-QRDHTY3 (1981)
Toyota Dyna

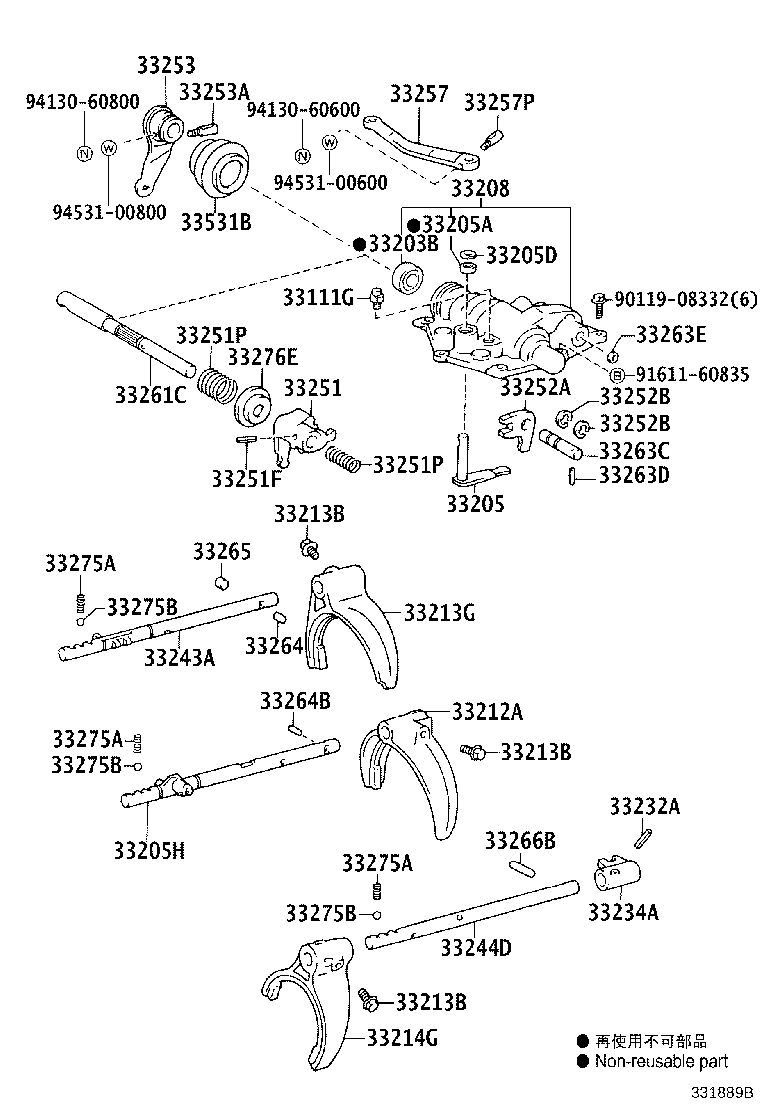

(0209-0610)BU303,343,WU300,340 ; (0610-0612)BU303,343,WU300,340..RHD..IV3 ; (0612-0
M150,M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||

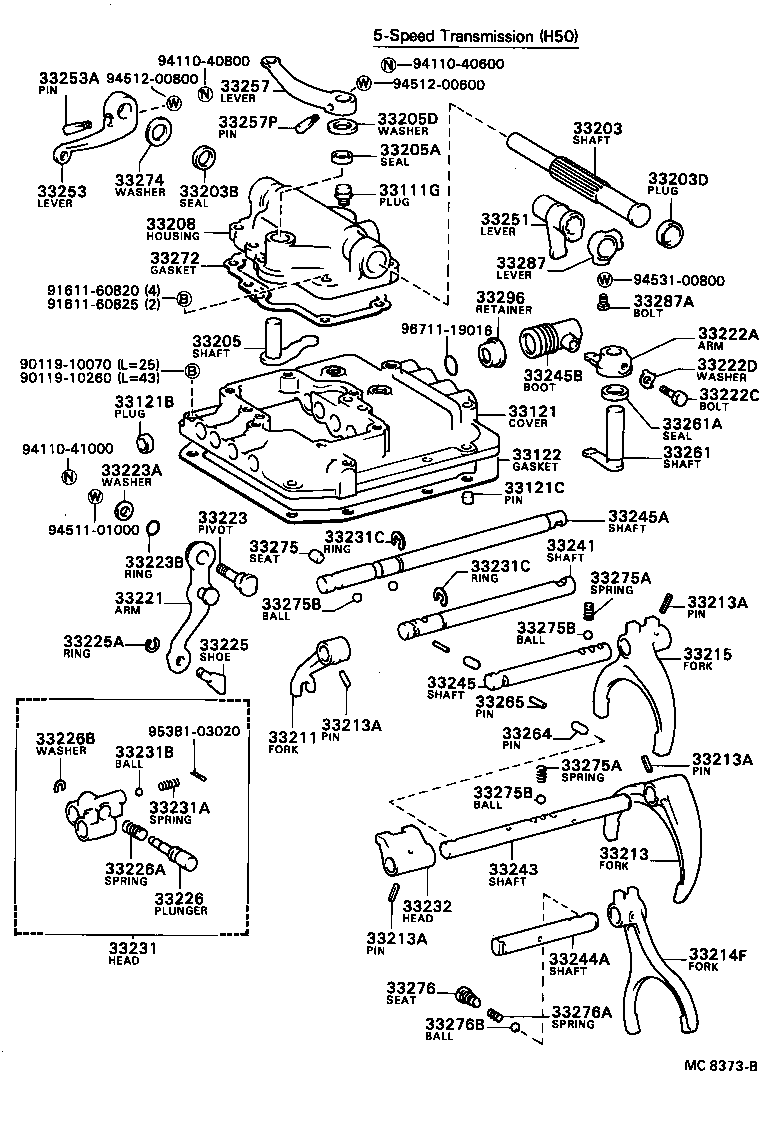

(7708-8204)5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
BU20,30,JU20,RU20,30 |
1 | ||
| 90930-03075 |
BU2#,3#,40,HU40,50,RU2#,30 |
1 | ||
| 90930-03085 |
BU2#,3#,40,HU40,50,RU2#,30,WU40,50 |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-36080 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33121-36080 |
BU20,30,RU2#,30 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 OD=16 |
6 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 96411-12000 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13151 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36070 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=25.4-25.5 |
5 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-36030 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-36020 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 33223-36010 |
BU20,30,RU2#,30 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-16029 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36030 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-12019 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36021 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-36010 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
BU20,30,RU2#,30 |
1 | ||
| 33243-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-36021 |
BU20,30,RU2#,30 |
1 | ||
| 33245-36021 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-36020 |
BU20,30,JU20,RU20,30 YELLOW PAINT |
1 | ||
| 33282-36010 |
BU20,30,JU20,RU20,30 RED PAINT |
1 | ||
| 33282-35010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 OD=6,P=1.0 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
BU20,30,JU20,RU20,30 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
BU20,30,JU20,RU20,30 |
4 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90250-10215 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
BU20,30,JU20,RU20,30 L=16.1 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
BU20,30,JU20,RU20,30 L=16.1 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| Common parts | ||||
| 90119-08072 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-61022 | ||||
| 91611-61045 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 95381-03020 | ||||
| 96711-19016 | ||||

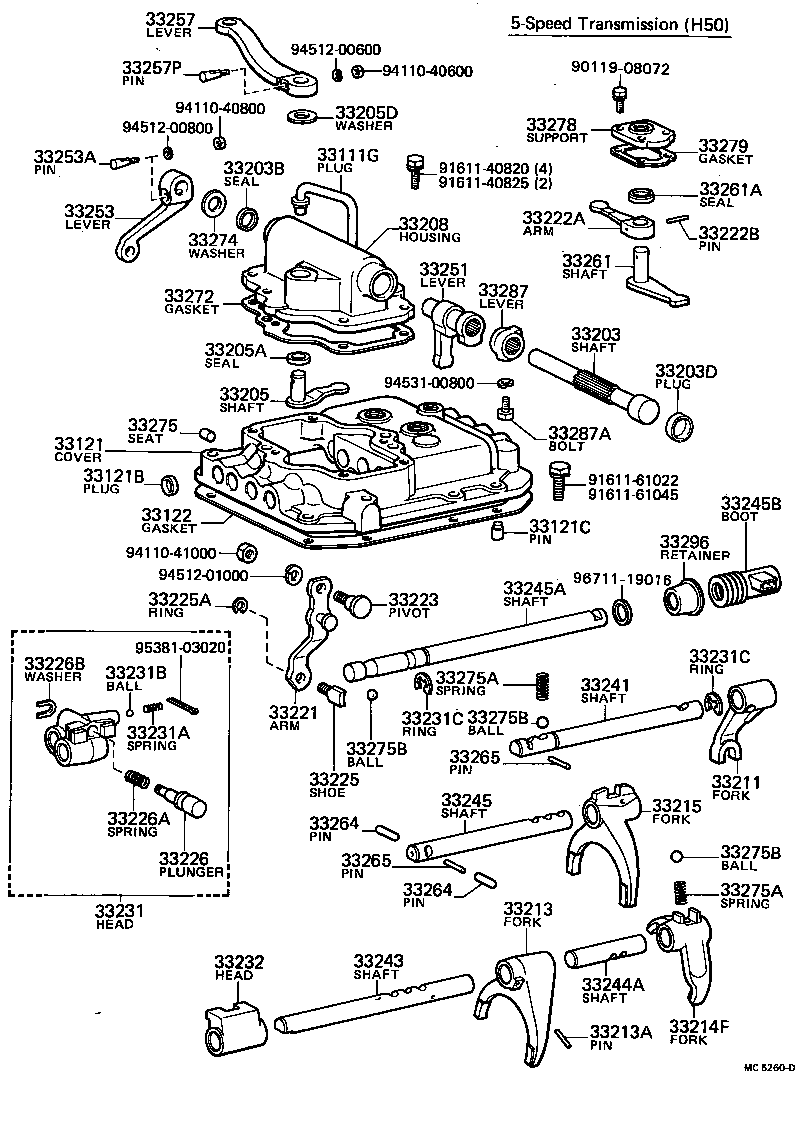

(8204-8408)5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
BU20,30,JU20,RU20,30 |
1 | ||
| 90930-03075 |
BU2#,3#,40,HU40,50,RU2#,30 |
1 | ||
| 90930-03085 |
BU2#,3#,40,HU40,50,RU2#,30,WU40,50 |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-36080 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33121-36080 |
BU20,30,RU2#,30 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 OD=16 |
6 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 96411-12000 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13151 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36070 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=25.4-25.5 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=25.4-25.5 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=25.4-25.5 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=25.4-25.5 |
5 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-36030 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-36020 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 33223-36010 |
BU20,30,RU2#,30 |
1 | ||
| 33223A - WASHER(FOR SHIFT ARM PIVOT) | ||||
| 90201-10045 |
BU2#,3#,40,HU40,50,RU2#,30,WU40,50 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-16029 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36030 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-12019 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36021 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-36040 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-36010 |
BU20,30,JU20,RU20,30..5F,5H |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
BU20,30,RU2#,30 |
1 | ||
| 33243-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-36021 |
BU20,30,RU2#,30 |
1 | ||
| 33245-36021 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36050 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-36020 |
BU20,30,JU20,RU20,30 YELLOW PAINT |
1 | ||
| 33282-36010 |
BU20,30,JU20,RU20,30 RED PAINT |
1 | ||
| 33282-35010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 OD=6,P=1.0 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
BU20,30,JU20,RU20,30 |
4 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
BU20,30,JU20,RU20,30 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90250-10215 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
BU20,30,JU20,RU20,30 L=16.1 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
BU20,30,JU20,RU20,30 L=16.1 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
5 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10260 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-03020 | ||||
| 96711-19016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
