BU30R-QRDHT3 (1977)
Toyota Dyna

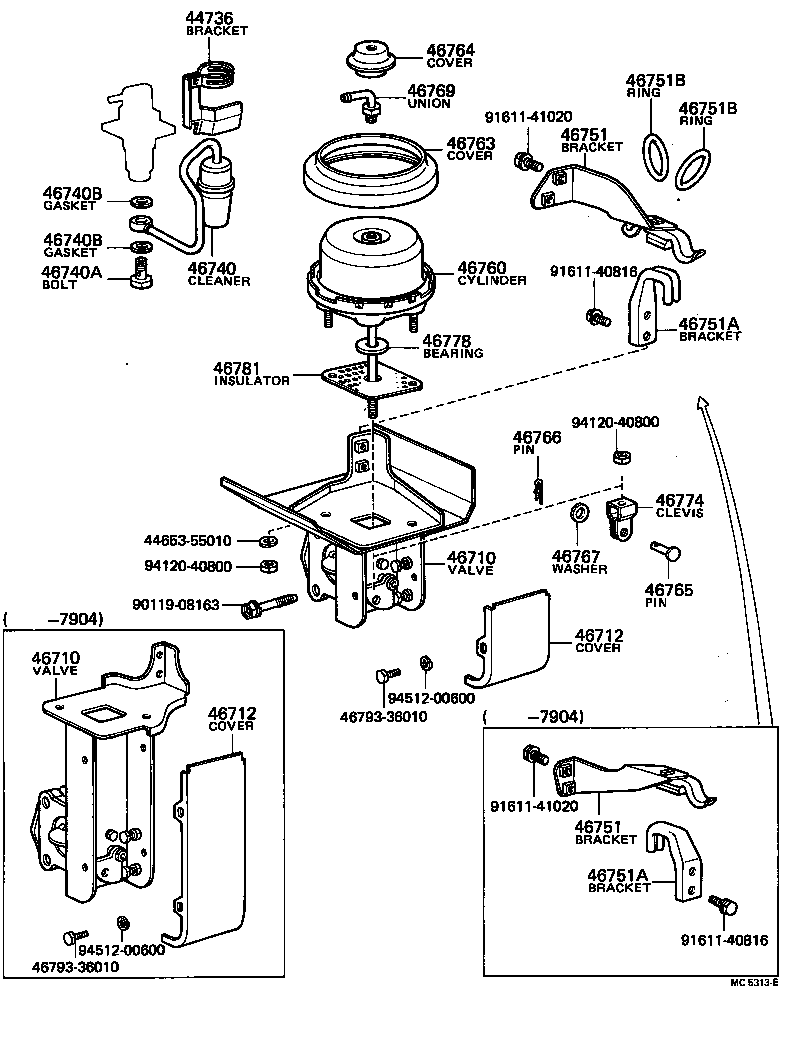

(7708-7907)BU20,30..RHD..WT ; (8008-8204)BU20,30..RHD..TR..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 44736-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46710-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46710-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712 - COVER, EXHAUST VALVE LINK | ||||
| 46712-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46712 - COVER, EXHAUST VALVE LINK | ||||
| 46712-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46751 - BRACKET, EXHAUST BRAKE, NO.1 | ||||
| 46702-36020 |
BU20,30..RHD..WT |
1 | ||
| 46702-36021 |
BU20,30..RHD..TR..GEN |
1 | ||
| 46702-36021 |
BU20,30..RHD..WT |
1 | ||
| 46751 - BRACKET, EXHAUST BRAKE, NO.1 | ||||
| 46702-36020 |
BU20,30..RHD..WT |
1 | ||
| 46702-36021 |
BU20,30..RHD..TR..GEN |
1 | ||
| 46702-36021 |
BU20,30..RHD..WT |
1 | ||
| 46751A - BRACKET, EXHAUST BRAKE, NO.2 | ||||
| 17561-26090 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46753-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 17561-38010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46751A - BRACKET, EXHAUST BRAKE, NO.2 | ||||
| 17561-26090 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46753-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 17561-38010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46751B - RING, O(FOR EXHAUST BRAKE BRACKET) | ||||
| 90301-34207 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46751B - RING, O(FOR EXHAUST BRAKE BRACKET) | ||||
| 90301-34207 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46760-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46760-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46763 - COVER, VACUUM CYLINDER DUST, NO.1 | ||||
| 46763-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46763-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46764 - COVER, VACUUM CYLINDER DUST, NO.2 | ||||
| 46764-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46764-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46767 - WASHER, VACUUM CLEVIS | ||||
| 46767-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46767-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46769 - UNION, VACUUM CYLINDER | ||||
| 46769-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46774-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46774-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46778 - BEARING, VACUUM CYLINDER | ||||
| 46778-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46778-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46781-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| Common parts | ||||
| 44653-55010 | ||||
| 46793-36010 | ||||
| 90119-08163 | ||||
| 91611-40816 | ||||
| 91611-41020 | ||||
| 94120-40800 | ||||
| 94512-00600 | ||||

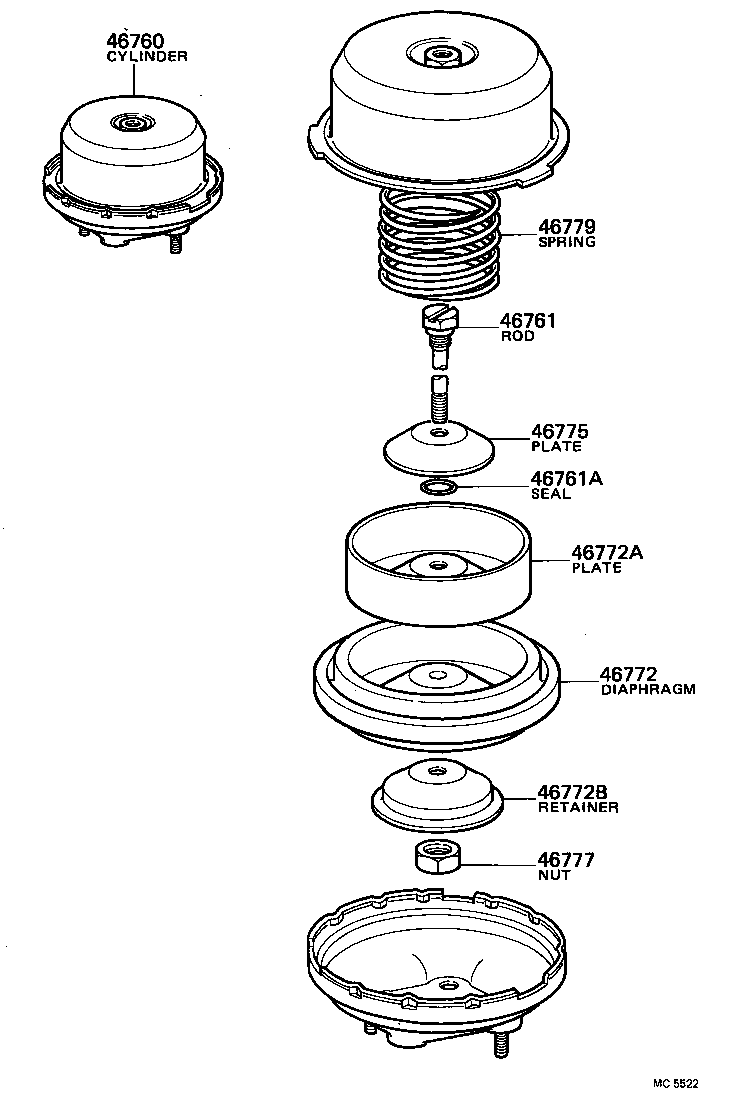

(7708-7907)BU20,30,HU30..RHD..WT..GEN ; (8008-8204)BU20,30..RHD..TR..GEN,GHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46760-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46760-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46761 - ROD, EXHAUST VALVE PUSH | ||||
| 46761-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46761-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46761-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46761A - SEAL(FOR EXHAUST VALVE PUSH ROD) | ||||
| 44644-55010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 44644-55010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46772 - DIAPHRAGM, VACUUM CYLINDER | ||||
| 46772-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46772-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46772A - PLATE(FOR VACUUM CYLINDER DIAPHRAGM) | ||||
| 46771-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46771-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46772B - RETAINER(FOR VACUUM CYLINDER DIAPHRAGM) | ||||
| 46773-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46773-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46775 - PLATE, EXHAUST BRAKE CHAMBR | ||||
| 46775-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46775-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46777 - NUT, VACUUM CYLINDER PISTON | ||||
| 46777-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46777-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46779 - SPRING, VACUUM CYLINDER | ||||
| 46779-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46779-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||

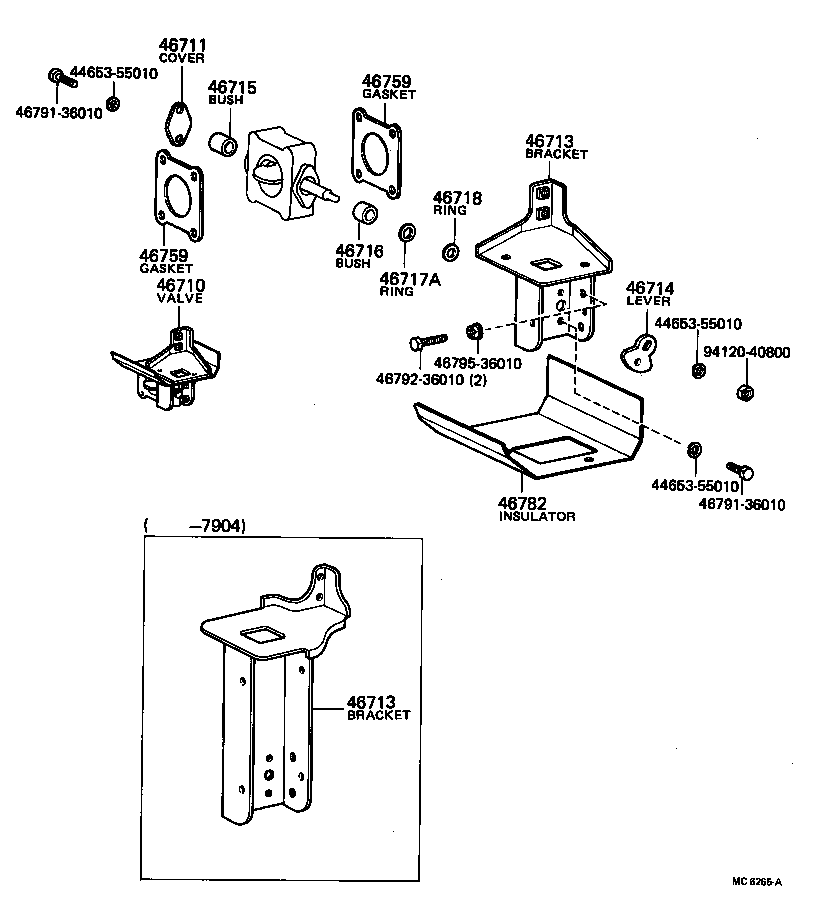

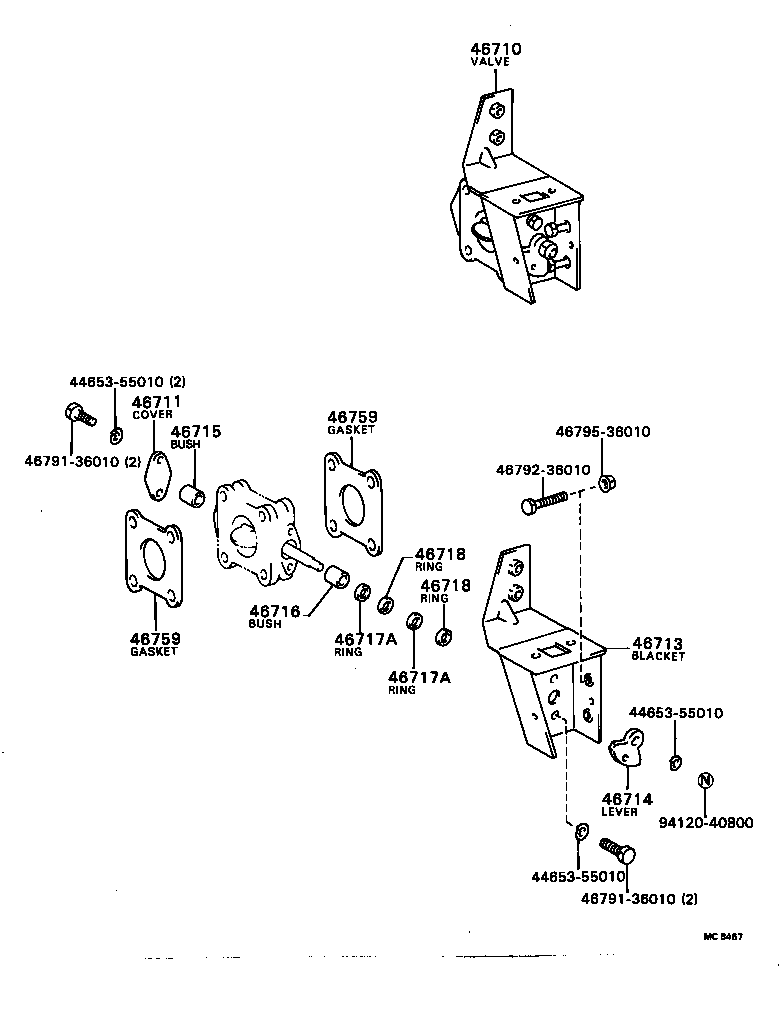

(7708-7907)BU20,30,HU30..RHD..WT..GEN ; (8008-8204)RU20,30..RHD..T3..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46710-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46711 - COVER, EXHAUST VALVE | ||||
| 46711-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
BU20,30,HU30..RHD..WT..GEN L=16.0 |
1 | ||
| 46715-36010 |
BU20,30..RHD..TR..(GEN,GHI) L=16.0 |
1 | ||
| 46716 - BUSH, EXHAUST VALVE, NO.2 | ||||
| 46716-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46782-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| Common parts | ||||
| 44653-55010 | ||||
| 46791-36010 | ||||
| 46792-36010 | ||||
| 46795-36010 | ||||
| 94120-40800 | ||||

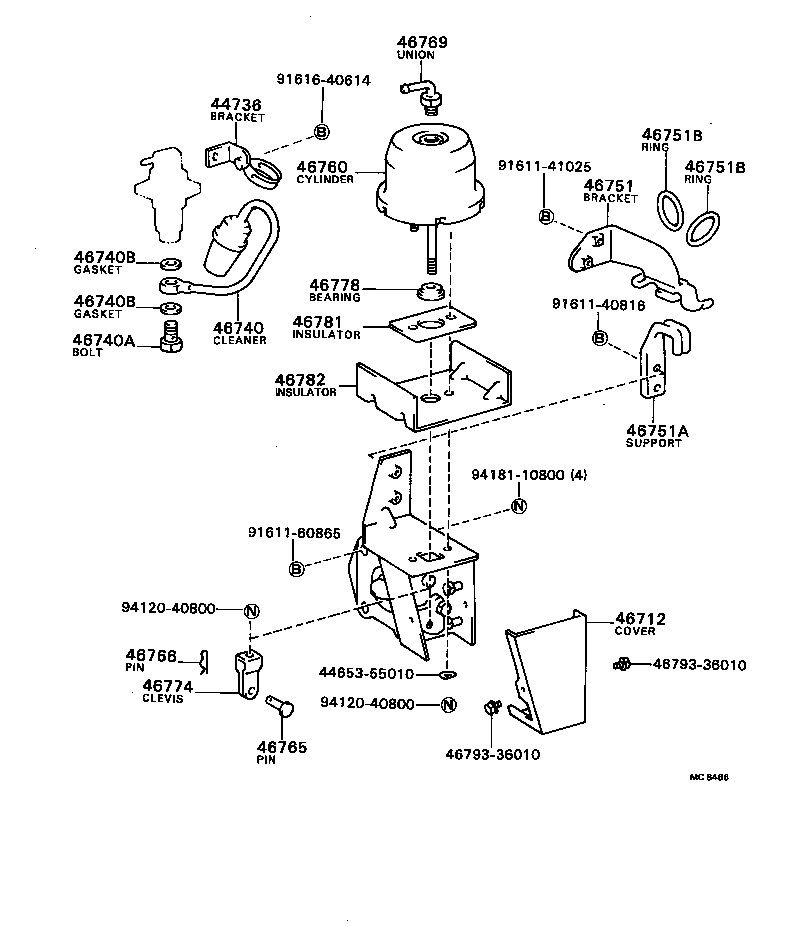

(8204- )BU20,30,36,40,HU40,50,WU40..RHD..TR..GEN,GHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 44736-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712 - COVER, EXHAUST VALVE LINK | ||||
| 46712-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46712-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46751 - BRACKET, EXHAUST BRAKE, NO.1 | ||||
| 46702-36020 |
BU20,30..RHD..WT |
1 | ||
| 46702-36021 |
BU20,30..RHD..TR..GEN |
1 | ||
| 46702-36021 |
BU20,30..RHD..WT |
1 | ||
| 46751A - BRACKET, EXHAUST BRAKE, NO.2 | ||||
| 17561-26090 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46753-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 17561-38010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46751B - RING, O(FOR EXHAUST BRAKE BRACKET) | ||||
| 90301-34207 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46751B - RING, O(FOR EXHAUST BRAKE BRACKET) | ||||
| 90301-34207 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46760-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46760-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46769 - UNION, VACUUM CYLINDER | ||||
| 46769-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-36020 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46774-36020 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46774-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46778 - BEARING, VACUUM CYLINDER | ||||
| 46778-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46778-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36010 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46781-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46782-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| Common parts | ||||
| 44653-55010 | ||||
| 46793-36010 | ||||
| 91611-40816 | ||||
| 91611-41025 | ||||
| 91611-60865 | ||||
| 91616-40614 | ||||
| 94120-40800 | ||||
| 94181-10800 | ||||
(8204- )BU20,30,36,40,HU40,50,WU40..RHD..TR..GEN,GHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46710-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46710-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46711 - COVER, EXHAUST VALVE | ||||
| 46711-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46713-36011 |
BU20,30..RHD..TR..(GEN,GHI) |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
BU20,30,HU30..RHD..WT..GEN L=16.0 |
1 | ||
| 46715-36010 |
BU20,30..RHD..TR..(GEN,GHI) L=16.0 |
1 | ||
| 46716 - BUSH, EXHAUST VALVE, NO.2 | ||||
| 46716-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU20,30,HU30..RHD..WT..GEN |
1 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU20,30,HU30..RHD..WT..GEN |
2 | ||
| Common parts | ||||
| 44653-55010 | ||||
| 46791-36010 | ||||
| 46792-36010 | ||||
| 46795-36010 | ||||
| 94120-40800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
