BU30R-QRDHT1 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1981
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

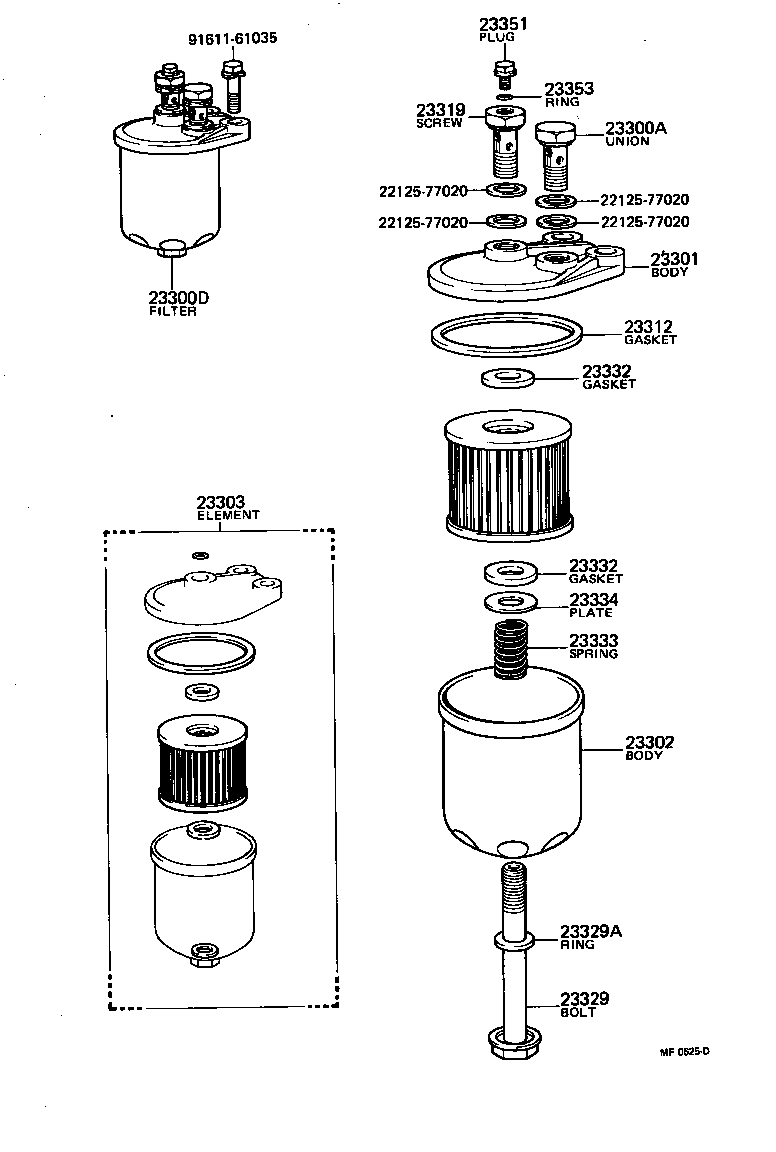

(7801-8008)B

Click highlighted areas on diagram

diagram 2212577020 2212577020 2212577020 2212577020 23300A 23300D 23301 23302 23303 23312 23319 23329 23329A 23332 23332 23333 23334 23351 23353 9161161035
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56030

B..BU2#,30

 1
23300-56031

B..BU2#,30

 1
23300-56010

B..BU20,30

PAPER ELEMENT

 1
23300-56012

B..BU20,30

PAPER ELEMENT

 1
23300-56050

B..BU2#,30

PAPER ELEMENT

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56030

B..BU2#,30

 1
23311-56010

B..BU20,30

PAPER ELEMENT

 1
23311-56031

B..BU2#,30

 1
23302 - BODY SUB-ASSY, FUEL FILTER, LOWER
23302-56010

B..BU2#,30

PAPER ELEMENT

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23312 - GASKET, FILTER BOWL
23312-56010

B..BU20,30

PAPER ELEMENT

 1
23312-56021

B,2B,3B..BU2#,3#,40

CARTRIDGE TYPE

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23329 - BOLT, FUEL FILTER CENTER
23304-56010

B..BU2#,30

PAPER ELEMENT

 1
23329A - RING, O(FOR FUEL FILTER CENTER BOLT)
23344-46010

B..BU20,30

PAPER ELEMENT

 1
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23333 - SPRING, FILTER ELEMENT SET
23333-56010

B..BU2#,30

PAPER ELEMENT

 1
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-46010

B..BU2#,30

PAPER ELEMENT

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
Common parts
22125-77020
91611-61035

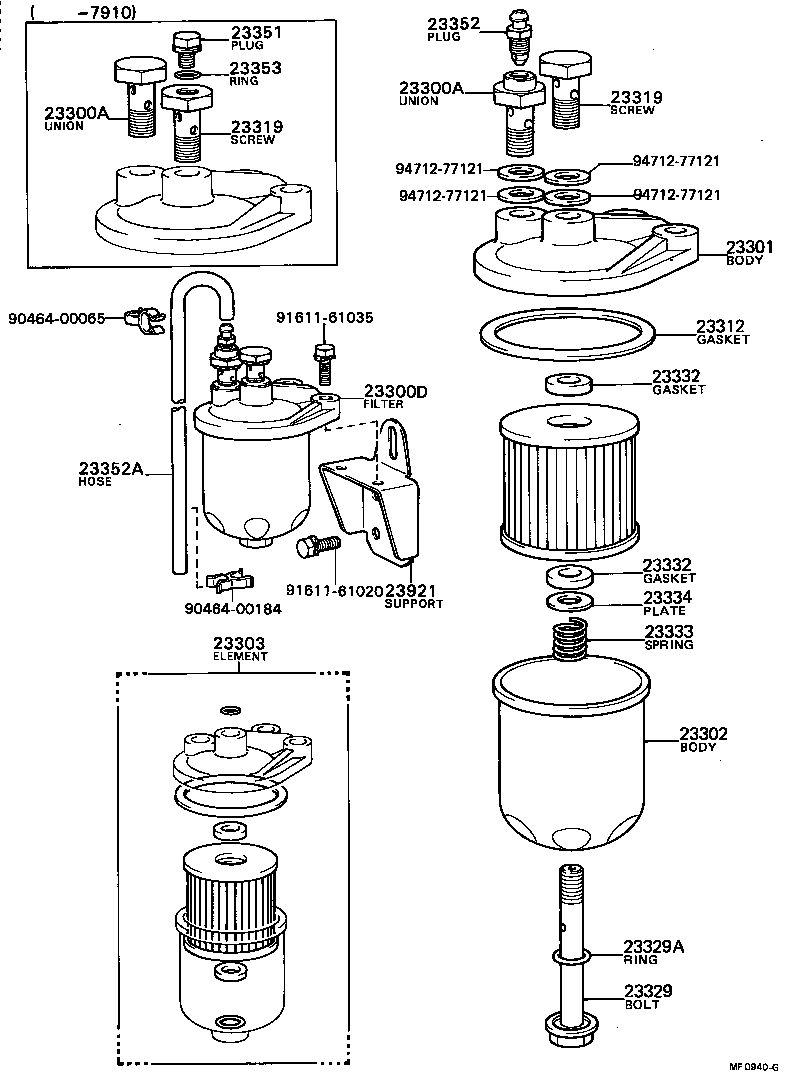

(7708-8104)H

Click highlighted areas on diagram

diagram 23300A 23300A 23300D 23301 23302 23303 23312 23319 23319 23329 23329A 23332 23332 23333 23334 23351 23352 23352A 23353 23921 9046400065 9046400184 9161161020 9161161035 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56030

B..BU2#,30

 1
23300-56031

B..BU2#,30

 1
23300-56010

B..BU20,30

PAPER ELEMENT

 1
23300-56012

B..BU20,30

PAPER ELEMENT

 1
23300-56050

B..BU2#,30

PAPER ELEMENT

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56030

B..BU2#,30

 1
23311-56010

B..BU20,30

PAPER ELEMENT

 1
23311-56031

B..BU2#,30

 1
23302 - BODY SUB-ASSY, FUEL FILTER, LOWER
23302-56010

B..BU2#,30

PAPER ELEMENT

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23312 - GASKET, FILTER BOWL
23312-56010

B..BU20,30

PAPER ELEMENT

 1
23312-56021

B,2B,3B..BU2#,3#,40

CARTRIDGE TYPE

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23329 - BOLT, FUEL FILTER CENTER
23304-56010

B..BU2#,30

PAPER ELEMENT

 1
23329A - RING, O(FOR FUEL FILTER CENTER BOLT)
23344-46010

B..BU20,30

PAPER ELEMENT

 1
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23333 - SPRING, FILTER ELEMENT SET
23333-56010

B..BU2#,30

PAPER ELEMENT

 1
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-46010

B..BU2#,30

PAPER ELEMENT

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
Common parts
90464-00065
90464-00184
91611-61020
91611-61035
94712-77121

(7708-8008)B

Click highlighted areas on diagram

diagram 2212577020 2212577020 2212577020 2212577020 23300A 23300D 23301 23303 23312 23319 23351 23353 9161161035
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56030

B..BU2#,30

 1
23300-56031

B..BU2#,30

 1
23300-56010

B..BU20,30

PAPER ELEMENT

 1
23300-56012

B..BU20,30

PAPER ELEMENT

 1
23300-56050

B..BU2#,30

PAPER ELEMENT

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56030

B..BU2#,30

 1
23311-56010

B..BU20,30

PAPER ELEMENT

 1
23311-56031

B..BU2#,30

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23312 - GASKET, FILTER BOWL
23312-56010

B..BU20,30

PAPER ELEMENT

 1
23312-56021

B,2B,3B..BU2#,3#,40

CARTRIDGE TYPE

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
Common parts
22125-77020
91611-61035

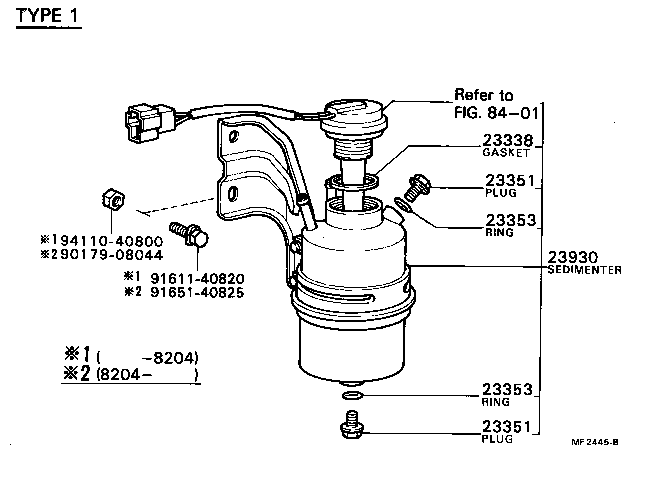

(7912- )B,2B,3B

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 8401 9017908044 9161140820 9165140825 9411040800
Part # Description Qty Price
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
Common parts
90179-08044
91611-40820
91651-40825
94110-40800
Linked diagrams
8401

(7912- )H,2H

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 8401 9017908044 9161140820 9165140825 9411040800
Part # Description Qty Price
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
Common parts
90179-08044
91611-40820
91651-40825
94110-40800
Linked diagrams
8401

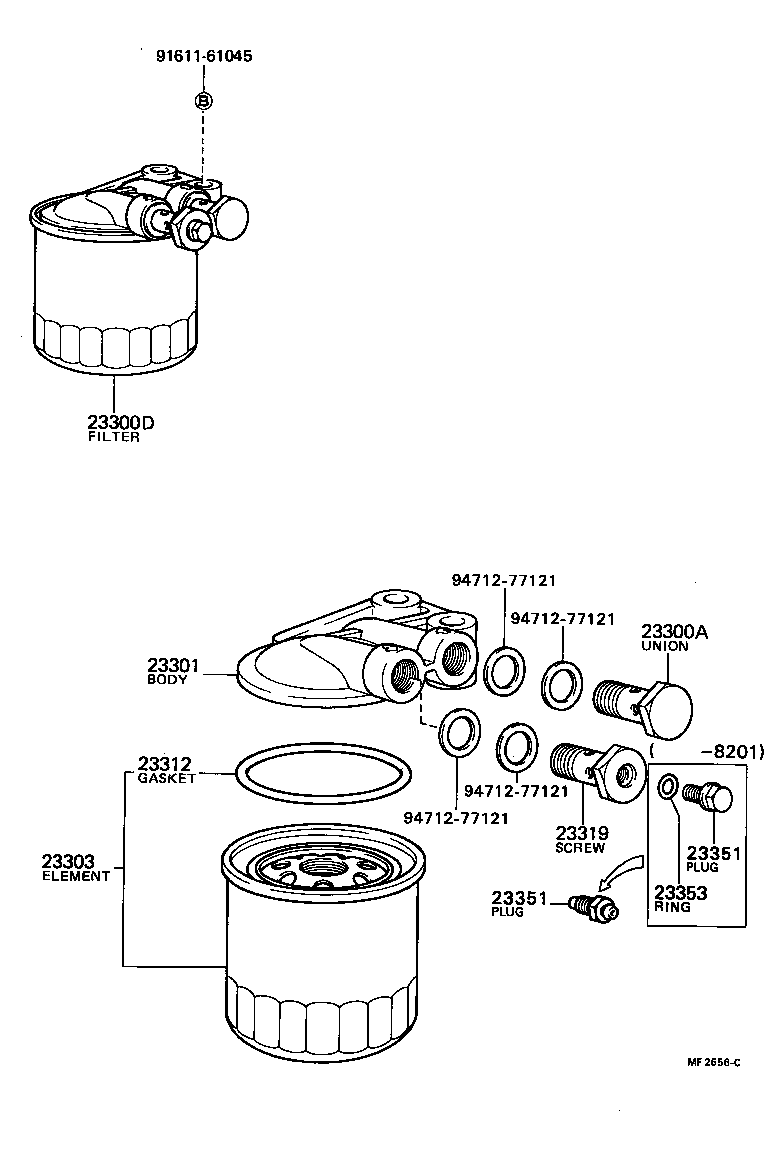

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23312 23319 23351 23351 23353 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56030

B..BU2#,30

 1
23300-56031

B..BU2#,30

 1
23300-56010

B..BU20,30

PAPER ELEMENT

 1
23300-56012

B..BU20,30

PAPER ELEMENT

 1
23300-56050

B..BU2#,30

PAPER ELEMENT

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56030

B..BU2#,30

 1
23311-56010

B..BU20,30

PAPER ELEMENT

 1
23311-56031

B..BU2#,30

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23312 - GASKET, FILTER BOWL
23312-56010

B..BU20,30

PAPER ELEMENT

 1
23312-56021

B,2B,3B..BU2#,3#,40

CARTRIDGE TYPE

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
Common parts
91611-61045
94712-77121

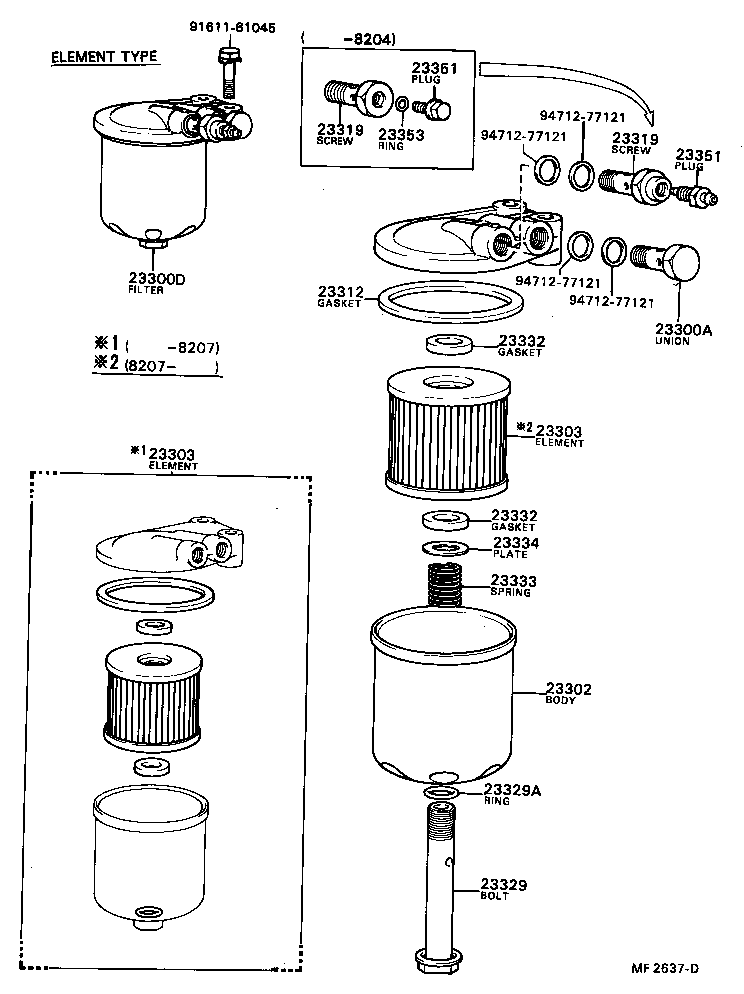

(8008- )B,3B

Click highlighted areas on diagram

diagram 23300A 23300D 23302 23303 23303 23312 23319 23319 23329 23329A 23332 23332 23333 23334 23351 23351 23353 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

B..BU2#,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56030

B..BU2#,30

 1
23300-56031

B..BU2#,30

 1
23300-56010

B..BU20,30

PAPER ELEMENT

 1
23300-56012

B..BU20,30

PAPER ELEMENT

 1
23300-56050

B..BU2#,30

PAPER ELEMENT

 1
23302 - BODY SUB-ASSY, FUEL FILTER, LOWER
23302-56010

B..BU2#,30

PAPER ELEMENT

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-56011

B..BU2#,30

PAPER ELEMENT

 1
23303-56030

B..BU2#,30

 1
04234-56010

B..BU20,30

PAPER ELEMENT

 1
23312 - GASKET, FILTER BOWL
23312-56010

B..BU20,30

PAPER ELEMENT

 1
23312-56021

B,2B,3B..BU2#,3#,40

CARTRIDGE TYPE

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-46010

B..BU2#,30

 1
23329 - BOLT, FUEL FILTER CENTER
23304-56010

B..BU2#,30

PAPER ELEMENT

 1
23329A - RING, O(FOR FUEL FILTER CENTER BOLT)
23344-46010

B..BU20,30

PAPER ELEMENT

 1
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23332 - GASKET, ELEMENT(FOR FUEL FILTER)
23332-46010

B..BU20,30

PAPER ELEMENT

 2
23333 - SPRING, FILTER ELEMENT SET
23333-56010

B..BU2#,30

PAPER ELEMENT

 1
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-46010

B..BU2#,30

PAPER ELEMENT

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
Common parts
91611-61045
94712-77121

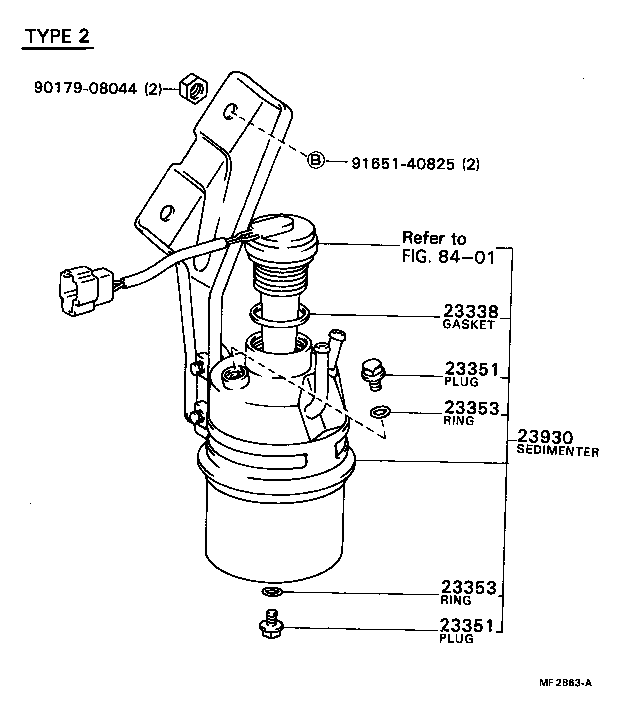

(7912- )B,2B,3B

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 8401 9017908044 9165140825
Part # Description Qty Price
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
Common parts
90179-08044
91651-40825
Linked diagrams
8401

(7912- )H,2H

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 8401 9017908044 9165140825
Part # Description Qty Price
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351 - PLUG, AIR VENT
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23351-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
23353-46010

B..BU2#,30

 1
Common parts
90179-08044
91651-40825
Linked diagrams
8401
