BU30R-QRDHT (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7907)BU20,30,HU30..RHD..WT..GEN ; (8008-)BU20,30,36..RHD..T1,T3..GEN,GHI

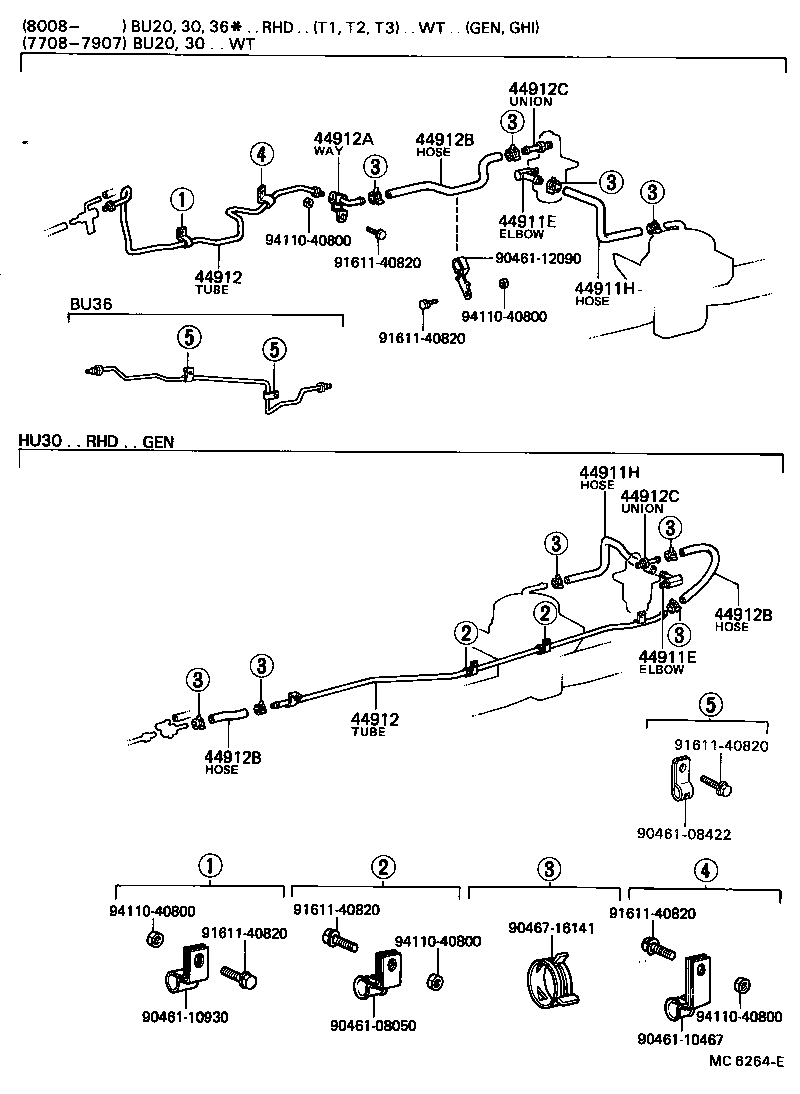

Click highlighted areas on diagram

diagram 44911E 44911E 44911H 44911H 44912 44912 44912A 44912B 44912B 44912B 44912C 44912C 9046108050 9046108422 9046110467 9046110930 9046112090 9046716141 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU20,30,HU30..RHD..WT..GEN

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU20,30,HU30..RHD..WT..GEN

 1
44911H - HOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90445-17002

BU20,30..RHD..WT

 1
90445-17895

BU20,30..RHD..WT

 1
90445-17895

BU20,30..RHD..TR..(GEN,GHI)

 1
44911H - HOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90445-17002

BU20,30..RHD..WT

 1
90445-17895

BU20,30..RHD..WT

 1
90445-17895

BU20,30..RHD..TR..(GEN,GHI)

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-36030

BU20,30..RHD..WT

 1
44912-36031

BU20,30..RHD..WT

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-36030

BU20,30..RHD..WT

 1
44912-36031

BU20,30..RHD..WT

 1
44912A - WAY, 2(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90412-14007

BU20,30..RHD..WT

 1
90412-14005

BU20,30..RHD..WT

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44771-36010

BU20,30..RHD..WT

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44771-36010

BU20,30..RHD..WT

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44771-36010

BU20,30..RHD..WT

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU20,30,HU30..RHD..WT..GEN

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU20,30,HU30..RHD..WT..GEN

 1
Common parts
90461-08050
90461-08422
90461-10467
90461-10930
90461-12090
90467-16141
91611-40820
94110-40800
