BU30R-QRDHT (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0612)XZU342 ; (0212-0610)ARL,GEN,TAIW ; (0212-0612)GCC,SA ; (0612-0712)SA

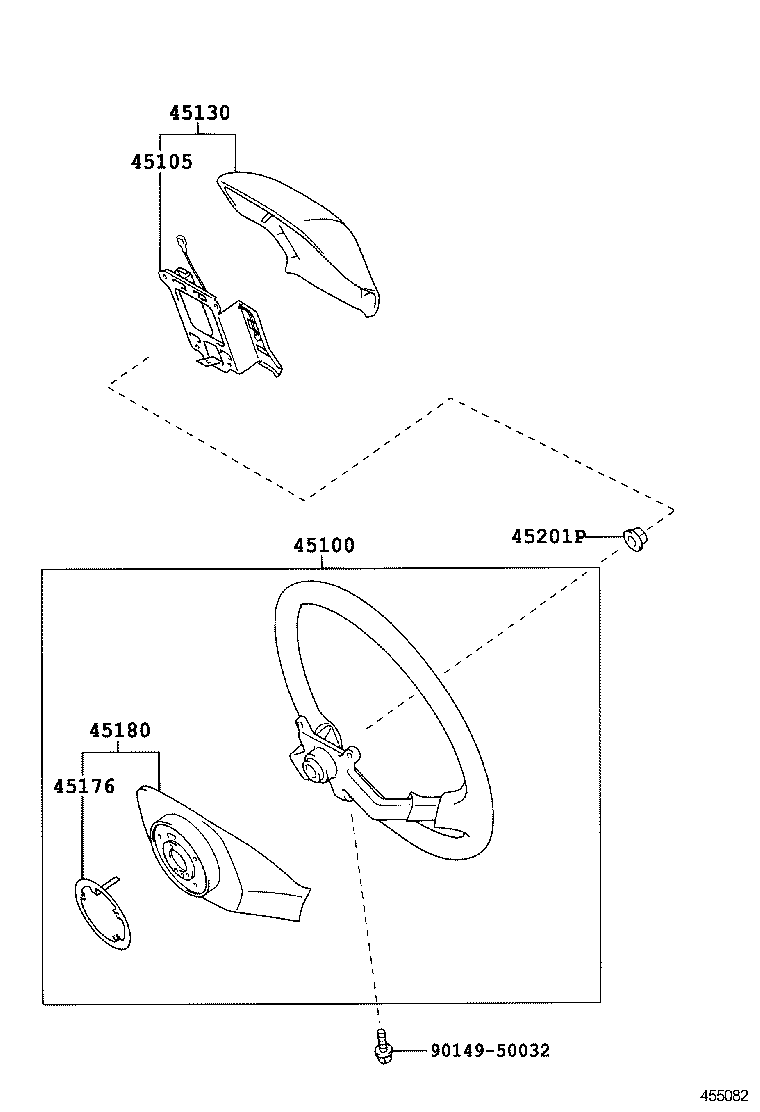

Click highlighted areas on diagram

2-SPOKE URETHANE

diagram 45100 45105 45130 45176 45180 45201P 9014950032
Part # Description Qty Price
Common parts
90149-50032

(7708-8008)

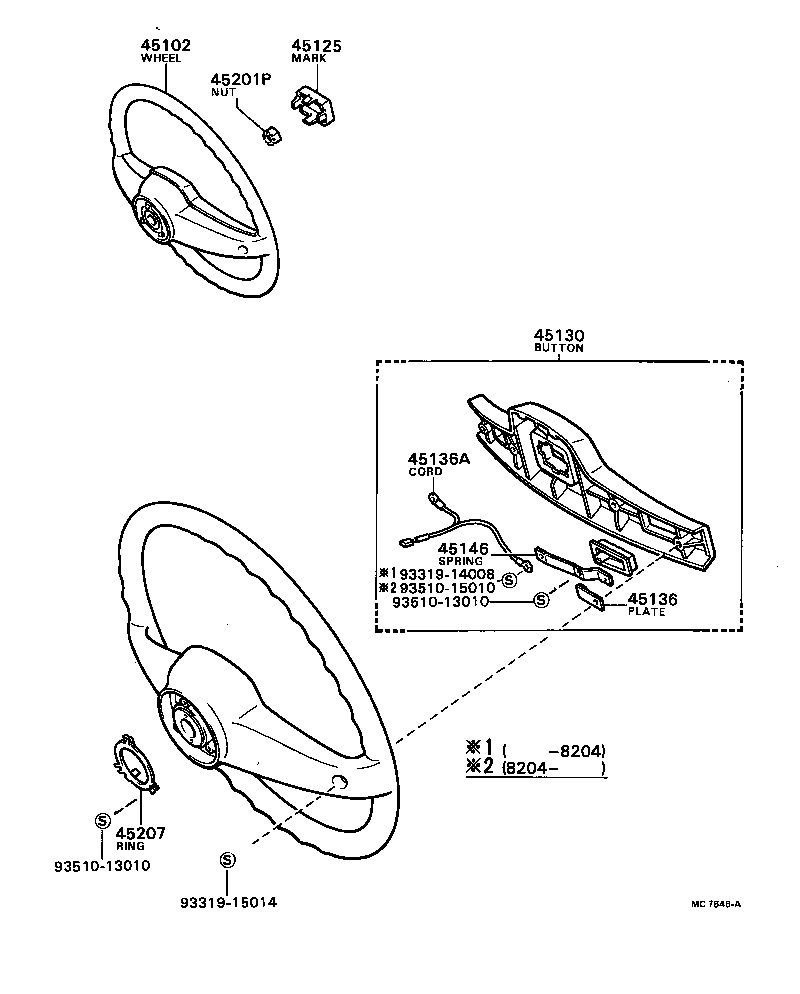

Click highlighted areas on diagram

diagram 45102 45125 45130 45136 45136A 45146 45201P 45207 9331914008 9331915014 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-36070

BU2#,3#,HU30,RU2#,30

 1
45102-36030

BU2#,30,HU30,JU20,RU2#,30

 1
45125 - MARK, STEERING WHEEL PAD
45125-36020

BU2#,3#,HU30,RU2#,30

 1
45125-36010

BU2#,30,HU30,JU20,RU2#,30

 1
45130 - BUTTON ASSY, HORN
45130-36040

BU2#,30,HU30,JU20,RU2#,30

 1
45130-36050

BU2#,3#,HU30,RU2#,30

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BU2#,3#,HU30,JU20,RU2#,30

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

BU2#,3#,HU30,JU20,RU2#,30

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BU2#,3#,HU30,JU20,RU2#,30

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
45207 - RING, HORN CONTACT
45176-20030

BU2#,3#,HU30,JU20,RU2#,30

 1
Common parts
93319-14008
93319-15014
93510-13010

(8008- )BU2#,3#,RU2#,30

Click highlighted areas on diagram

diagram 45102 45125 45130 45136 45136A 45146 45201P 45207 9331914008 9331915014 9351013010 9351013010 9351015010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-36070

BU2#,3#,HU30,RU2#,30

 1
45102-36030

BU2#,30,HU30,JU20,RU2#,30

 1
45125 - MARK, STEERING WHEEL PAD
45125-36020

BU2#,3#,HU30,RU2#,30

 1
45125-36010

BU2#,30,HU30,JU20,RU2#,30

 1
45130 - BUTTON ASSY, HORN
45130-36040

BU2#,30,HU30,JU20,RU2#,30

 1
45130-36050

BU2#,3#,HU30,RU2#,30

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BU2#,3#,HU30,JU20,RU2#,30

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

BU2#,3#,HU30,JU20,RU2#,30

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BU2#,3#,HU30,JU20,RU2#,30

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
45207 - RING, HORN CONTACT
45176-20030

BU2#,3#,HU30,JU20,RU2#,30

 1
Common parts
93319-14008
93319-15014
93510-13010
93510-15010
