BU30R-MRDHTY3 (1981)
Toyota Dyna
Production
Apr 1981
-
Nov 1984
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8408)JU20,RU2#,30

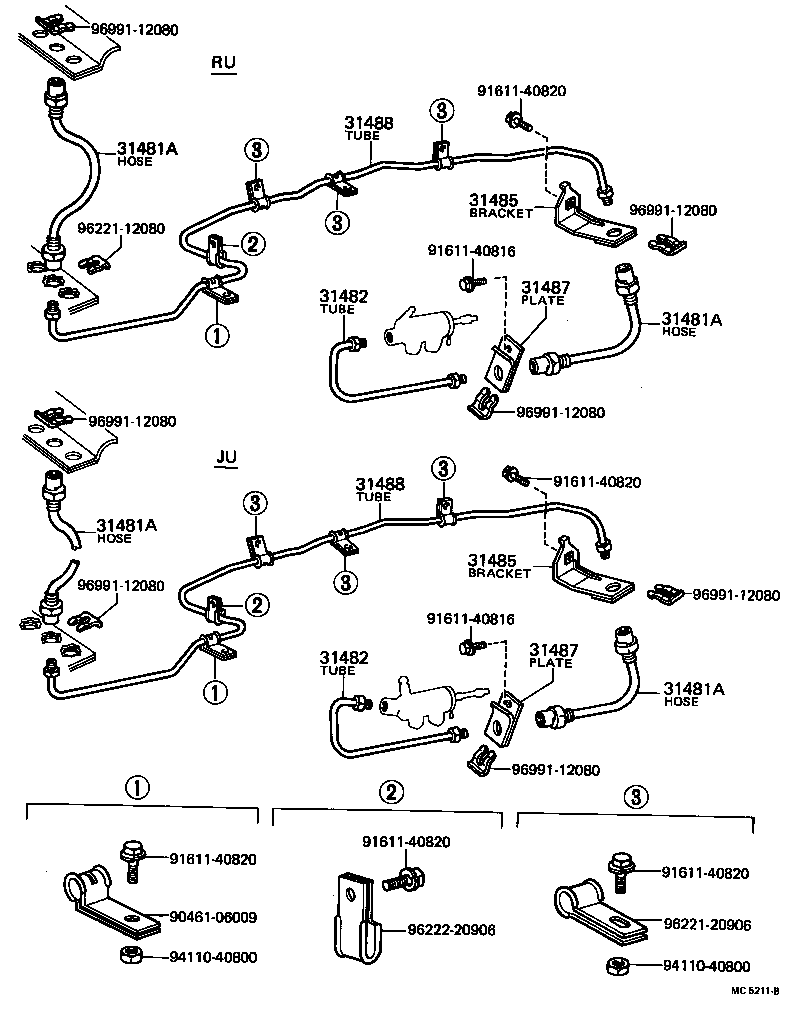

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-31343 |
BU2#,30,HU30,JU20,RU2#,30 RR |
1 | ||
| 96932-31223 |
BU2#,30,HU30,JU20,RU2#,30 FR |
1 | ||
| 96932-33305 |
RU2#,30 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-31343 |
BU2#,30,HU30,JU20,RU2#,30 RR |
1 | ||
| 96932-31223 |
BU2#,30,HU30,JU20,RU2#,30 FR |
1 | ||
| 96932-33305 |
RU2#,30 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-31343 |
BU2#,30,HU30,JU20,RU2#,30 RR |
1 | ||
| 96932-31223 |
BU2#,30,HU30,JU20,RU2#,30 FR |
1 | ||
| 96932-33305 |
RU2#,30 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-31343 |
BU2#,30,HU30,JU20,RU2#,30 RR |
1 | ||
| 96932-31223 |
BU2#,30,HU30,JU20,RU2#,30 FR |
1 | ||
| 96932-33305 |
RU2#,30 RR |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36060 |
BU2#,30 |
1 | ||
| 31482-36070 |
RU2#,30 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36060 |
BU2#,30 |
1 | ||
| 31482-36070 |
RU2#,30 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-36020 |
BU2#,3# |
1 | ||
| 31485-36030 |
HU30,JU20,RU2#,30 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-36020 |
BU2#,3# |
1 | ||
| 31485-36030 |
HU30,JU20,RU2#,30 |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36050 |
BU2#,30 |
1 | ||
| 31487-36060 |
JU20,RU2#,30 |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36050 |
BU2#,30 |
1 | ||
| 31487-36060 |
JU20,RU2#,30 |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36070 |
RU20,30..RHD |
1 | ||
| 31488-36050 |
BU20,30,32..RHD |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36070 |
RU20,30..RHD |
1 | ||
| 31488-36050 |
BU20,30,32..RHD |
1 | ||
| Common parts | ||||
| 90461-06009 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| 96221-12080 | ||||
| 96221-20906 | ||||
| 96222-20906 | ||||
| 96991-12080 | ||||
