BU30L-QRDHTY (1981)

Toyota Dyna

Production Apr 1981 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)BU2#,30,31,32,HU30,JU20,RU2#,30

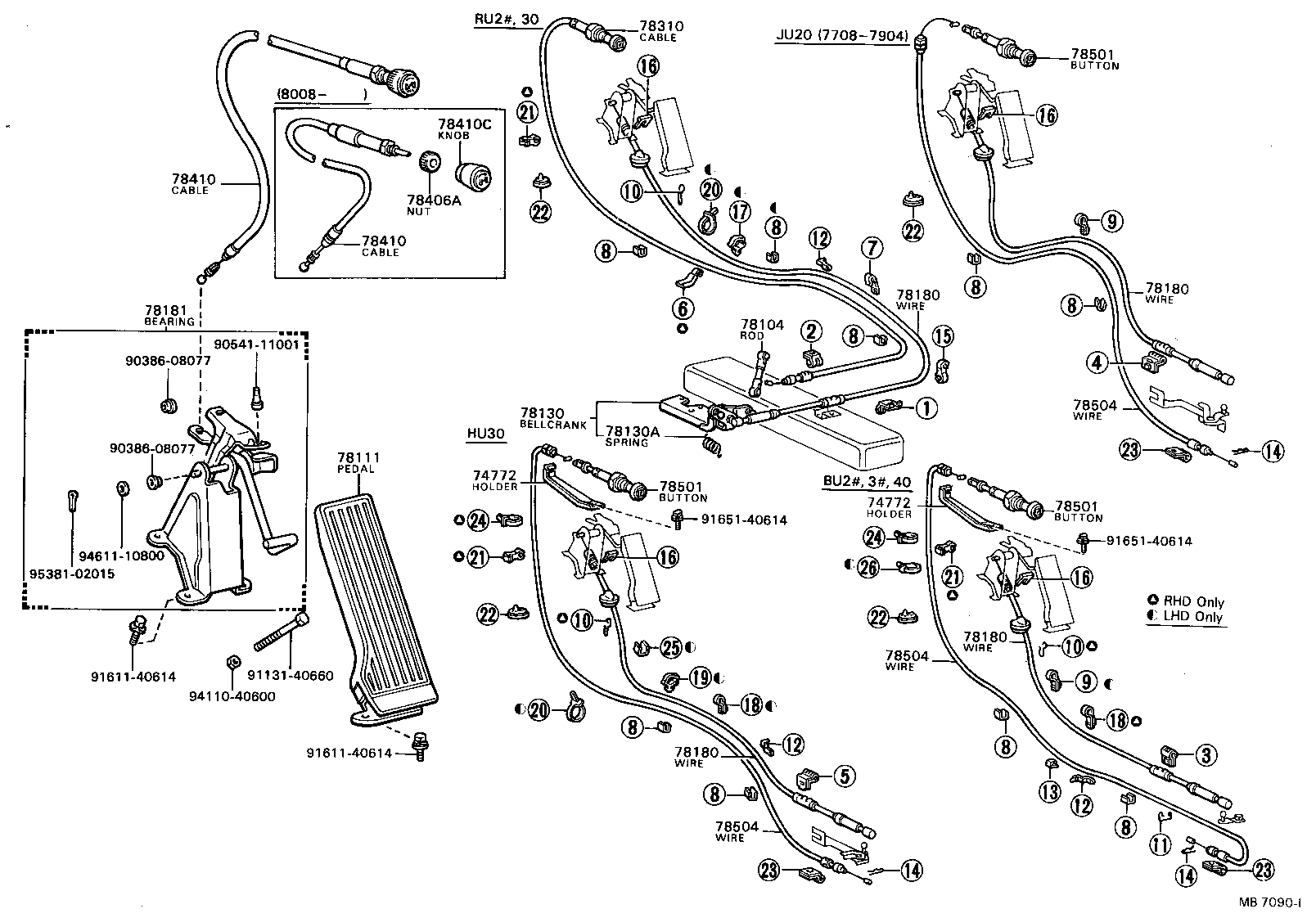

Click highlighted areas on diagram

diagram 74772 74772 78104 78111 78130 78130A 78180 78180 78180 78180 78181 78310 78406A 78410 78410 78410C 78501 78501 78501 78504 78504 78504 9038608077 9038608077 9054111001 9113140660 9161140614 9161140614 9165140614 9165140614 9411040600 9461110800 9538102015
Part # Description Qty Price
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20041

RU2#,30

 1
78111 - PEDAL, ACCELERATOR
78110-95410

BU2#,3#,HU30,40,50,JU20,RU2#,30

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-36014

RU2#,30

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-16087

RU2#,30

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95446

RU2#,30..LHD

 1
78150-95443

BU2#,30,31,32..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95446

RU2#,30..LHD

 1
78150-95443

BU2#,30,31,32..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95446

RU2#,30..LHD

 1
78150-95443

BU2#,30,31,32..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95446

RU2#,30..LHD

 1
78150-95443

BU2#,30,31,32..LHD

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78180-95445

BU2#,30,31,32,HU30,JU20,RU2#,30

 1
78310 - CABLE ASSY, CHOKE
78310-95403

RU2#,30..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-95405

BU2#,30,HU30,JU20,RU2#,30..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-95405

BU2#,30,HU30,JU20,RU2#,30..LHD

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-95417

BU2#,30..LHD

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-95417

BU2#,30..LHD

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-95417

BU2#,30..LHD

 1
Common parts
90386-08077
90541-11001
91131-40660
91611-40614
91651-40614
94110-40600
94611-10800
95381-02015
