BU30L-QRDHTW3 (1977)
Toyota Dyna
(7803- )B,2B,3B..BU2#,30,31,32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

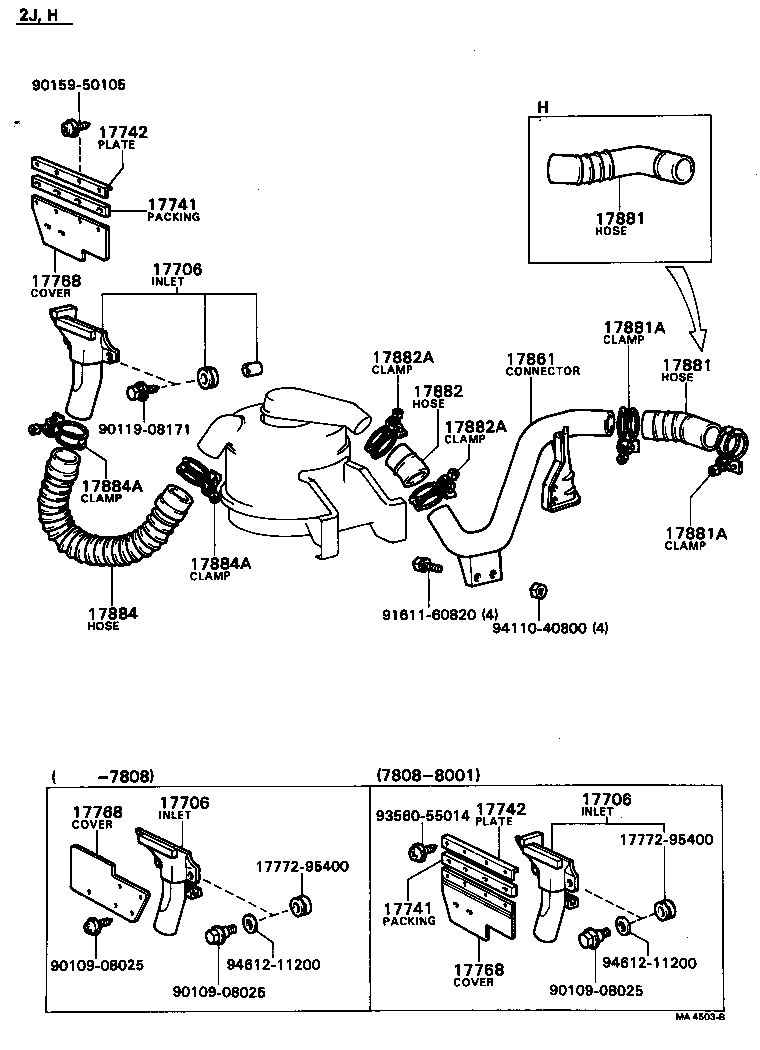

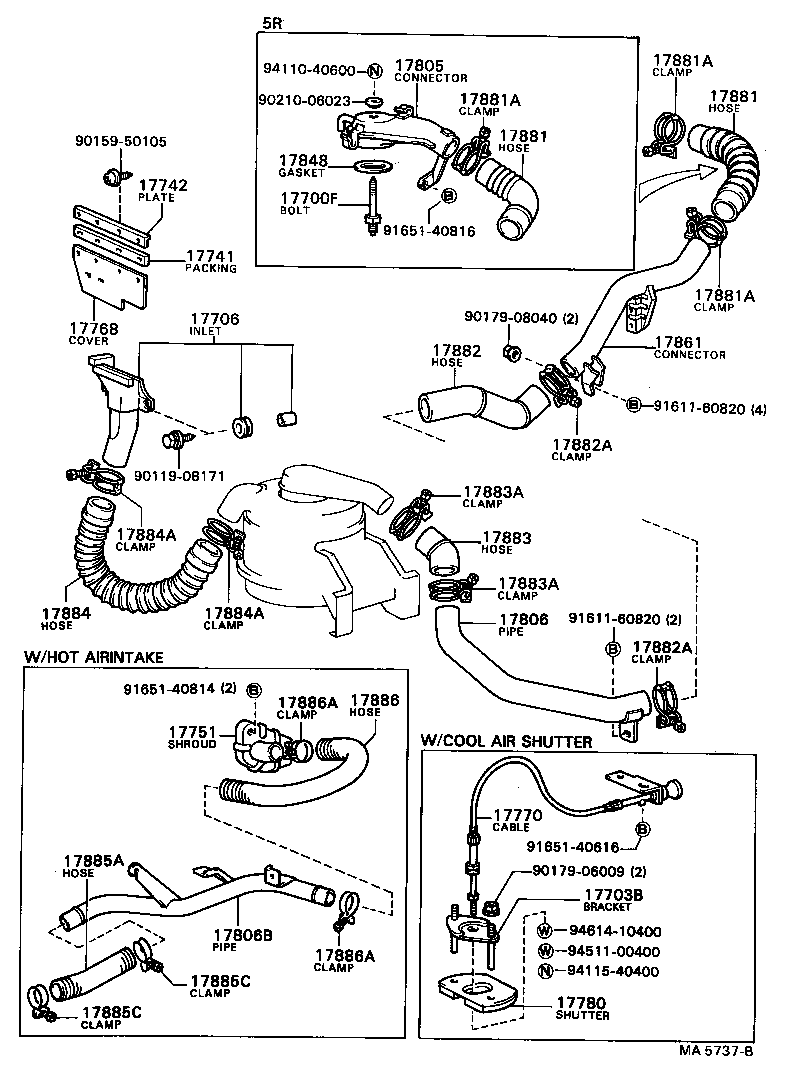

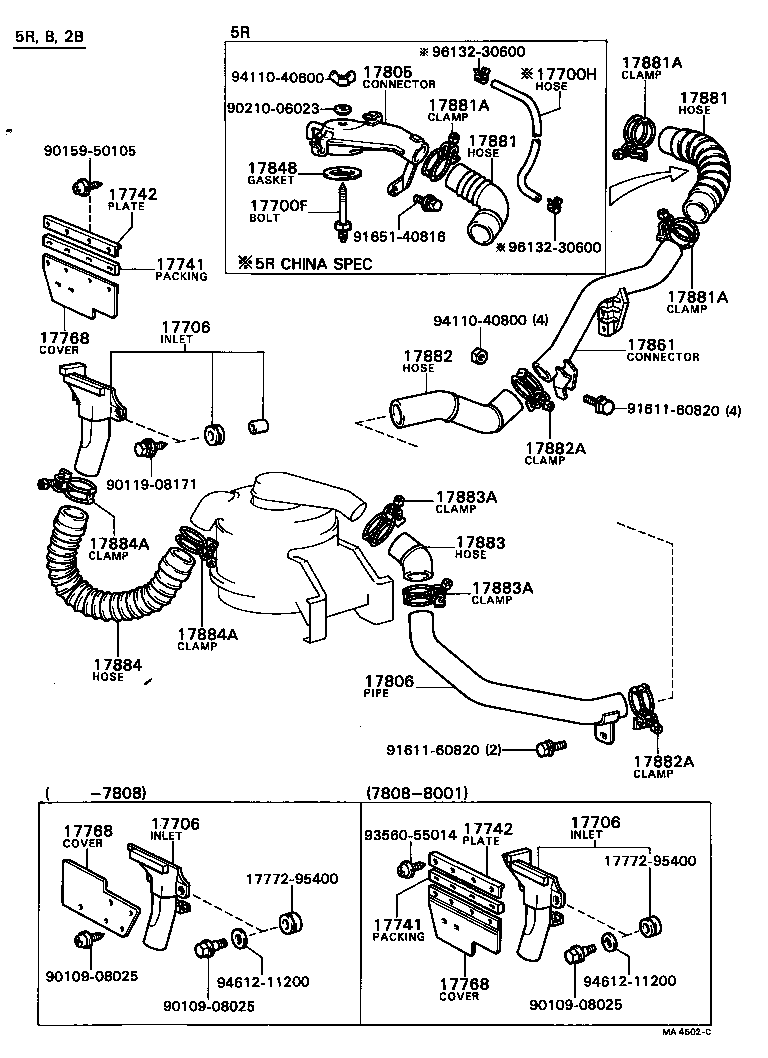

| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||

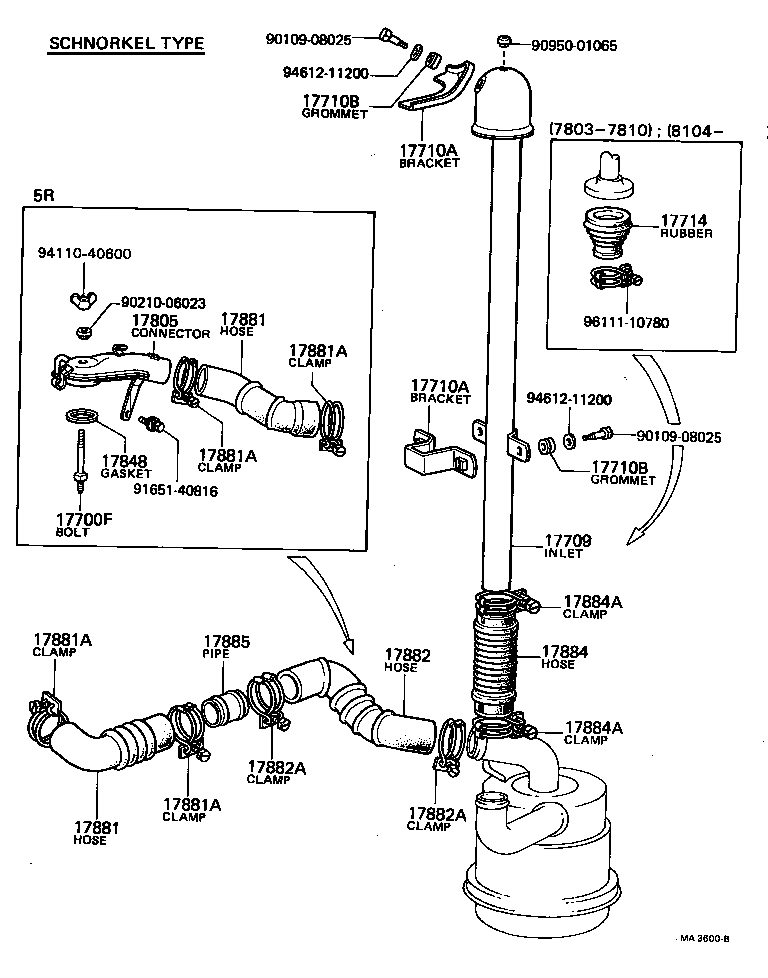

| Common parts | ||||
| 90109-08025 | ||||
| 90210-06023 | ||||
| 90950-01065 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94612-11200 | ||||
| 96111-10780 | ||||
(7708- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

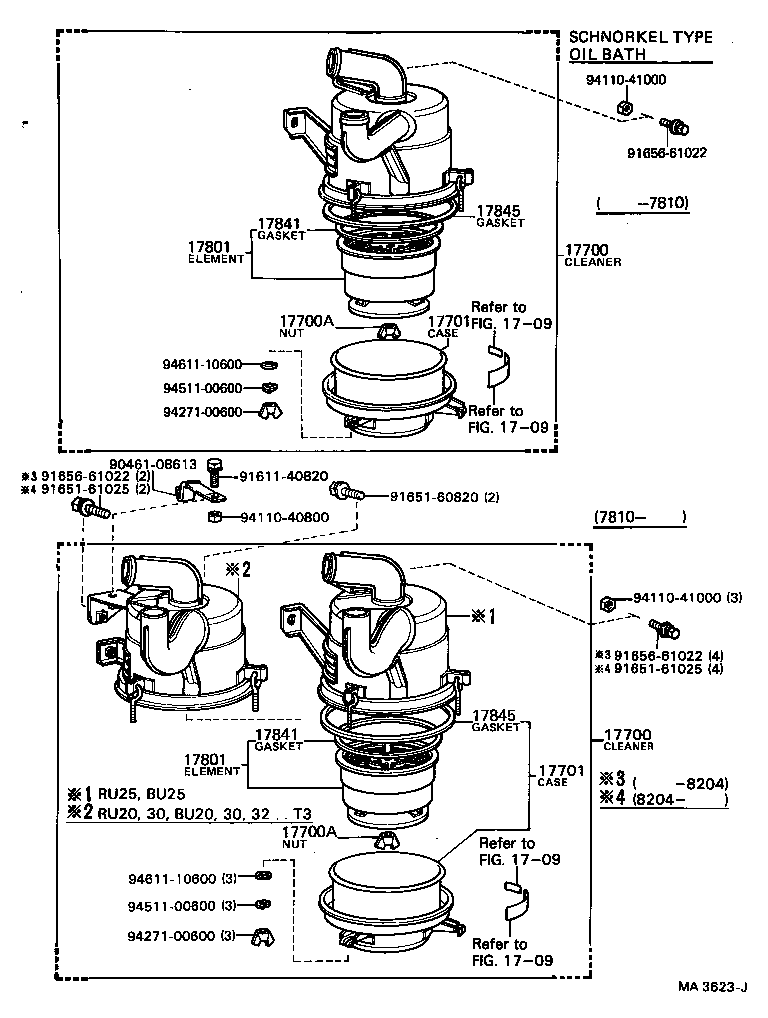

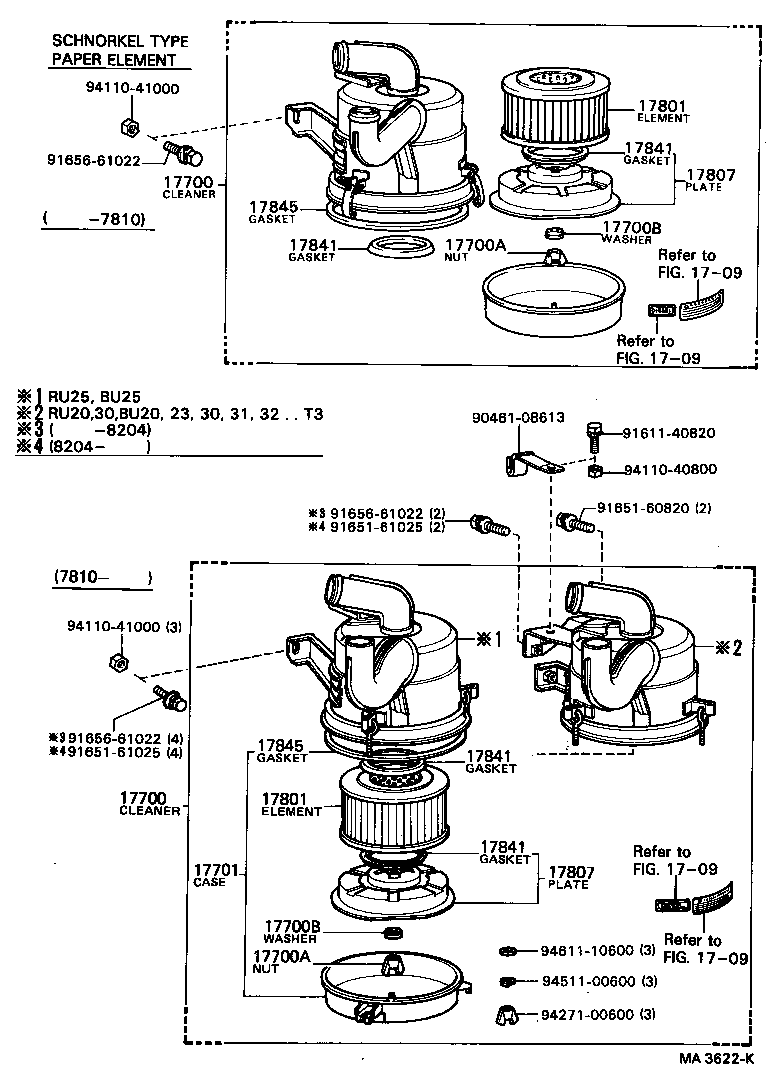

| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7708- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7708- )B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7708- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7803- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 90210-08004 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56010 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17807-56011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 90461-08613 | ||||
| 91611-40820 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7803- )B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56170 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56200 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56201 |
B..BU20,30..LHD OIL BATH |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56171 |
2B..BU31..CBU;B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56172 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700-56173 |
B..BU20,30..LHD PAPER ELEMENT |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 94271-00800 |
B,2B,3B..BU2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56140 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-48070 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-56031 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17702-44021 |
B..BU2#,30 OIL BATH |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-44262 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17701-56141 |
B..BU2#,30 PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17801-48011 |
B,2B,3B..BU2#,3# PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17841-56010 |
B..BU2#,30 PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 17845-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| Common parts | ||||
| 90461-08613 | ||||
| 91611-40820 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7708-8204)B,2B,3B..BU20,3#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-56020 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17806-56020 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17806-56020 |
B..BU20,30..LHD |
1 | ||
| 17806-56020 |
B..BU20,30..LHD |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-56040 |
B..BU20,30..LHD |
1 | ||
| 17883-56040 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17883-56041 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-50105 | ||||
| 90210-06023 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 93560-55014 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94612-11200 | ||||
| 96132-30600 | ||||
(7708-8104)H..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-50105 | ||||
| 91611-60820 | ||||
| 93560-55014 | ||||
| 94110-40800 | ||||
| 94612-11200 | ||||
(8204-8408)B,3B..BU20,30,32,36..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17701-95402 |
2B..BU31..CBU;B..BU20,30..LHD |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17767-95404 |
B..BU20,30 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-56020 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17806-56020 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17806-56020 |
B..BU20,30..LHD |
1 | ||
| 17806-56020 |
B..BU20,30..LHD |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B..BU20,30 |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17805-56010 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881-56040 |
B,2B,3B..BU20,3#..EUR,GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10670 |
B,2B,3B..BU20,3# ID=67 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882-56050 |
B..BU20,30..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-56040 |
B..BU20,30..LHD |
1 | ||
| 17883-56040 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B..BU20,30..LHD |
1 | ||
| 17883-56041 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17883-56041 |
B,2B,3B..BU20,3#..LHD |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B,2B,3B..BU20,3# ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30..LHD ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU20,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17883-95400 |
B..BU2#,30 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| 96111-10780 |
B..BU20,30 ID=78 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90159-50105 | ||||
| 90179-06009 | ||||
| 90179-08040 | ||||
| 90210-06023 | ||||
| 91611-60820 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94614-10400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
