BU303R-TKMLSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )IDN

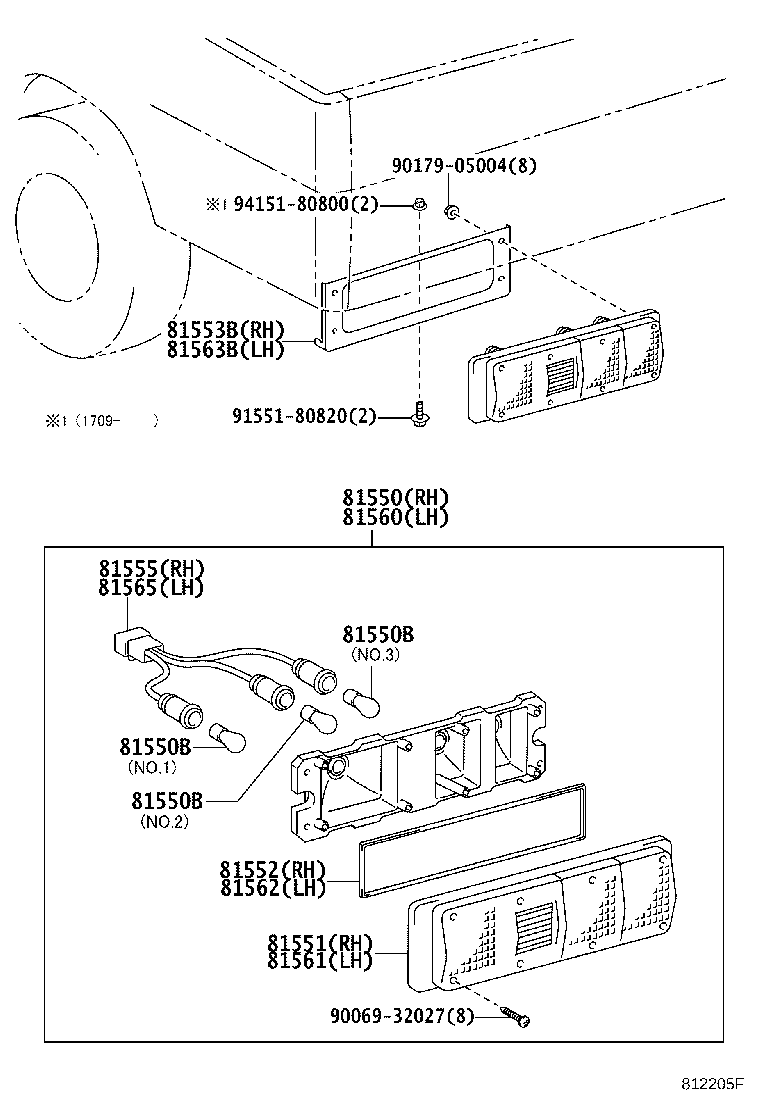

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81553B 81555 81560 81561 81562 81563B 81565 9006932027 9017905004 9155180820 9415180800
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99134-21210

BU303,343,WU300,340,XZU342..IDN

24V 21/5W,NO.1

 2
99134-11210

BU303,343,WU300,340,XZU342..IDN

24V 21W,NO.2 & NO.3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99134-21210

BU303,343,WU300,340,XZU342..IDN

24V 21/5W,NO.1

 2
99134-11210

BU303,343,WU300,340,XZU342..IDN

24V 21W,NO.2 & NO.3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99134-21210

BU303,343,WU300,340,XZU342..IDN

24V 21/5W,NO.1

 2
99134-11210

BU303,343,WU300,340,XZU342..IDN

24V 21W,NO.2 & NO.3

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81553-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81554-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81553B - BRACKET SUB-ASSY, RR COMB LAMP, RH
75135-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81563-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81564-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81563B - BRACKET SUB-ASSY, RR COMB LAMP, LH
75135-0W010

BU303,343,WU300,340,XZU342..IDN

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-0W010

BU303,343,WU300,340,XZU342..IDN

 1
Common parts
90069-32027
90179-05004
91551-80820
94151-80800
