BU303R-TKMLSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )IDN

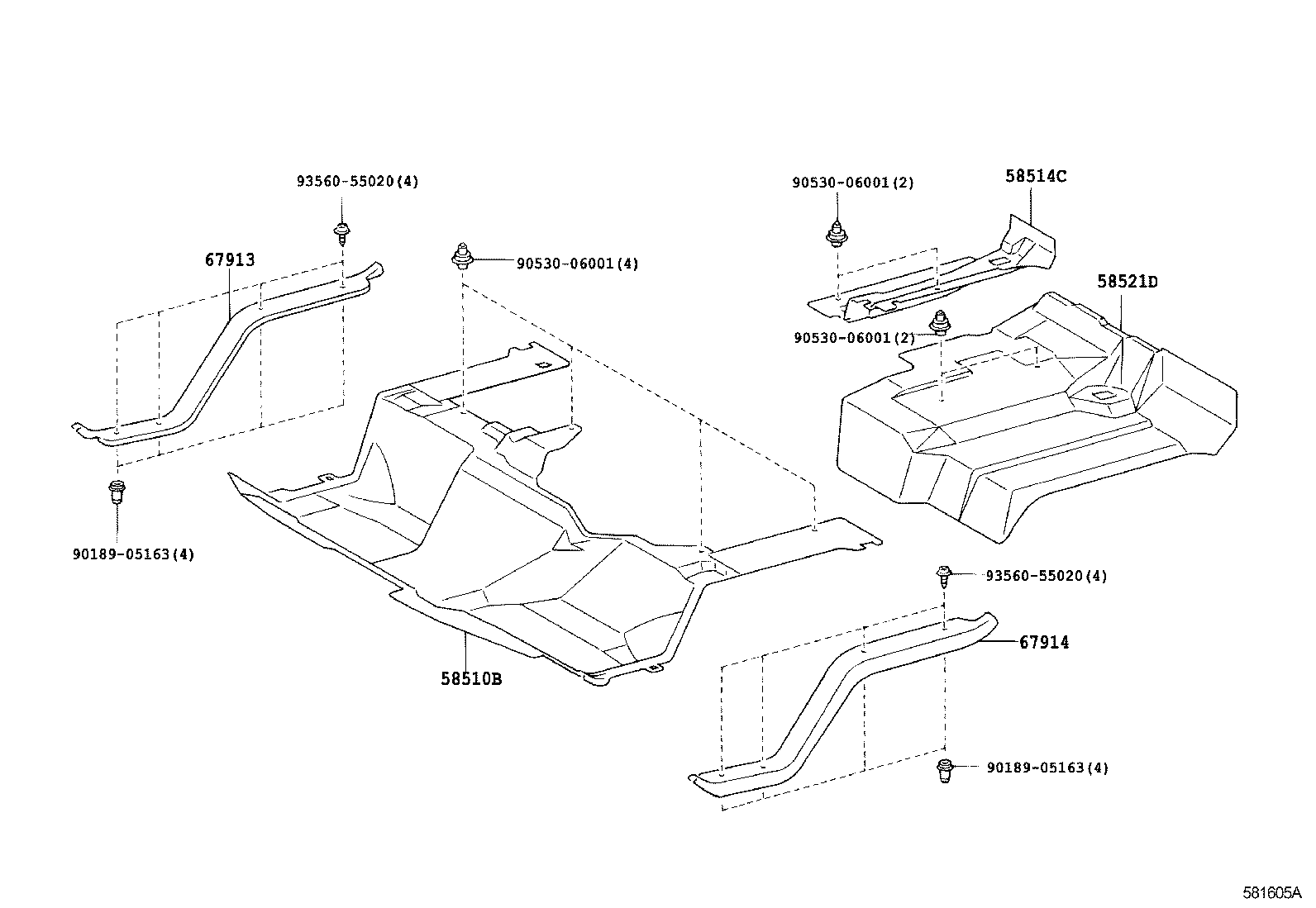

Click highlighted areas on diagram

diagram 58510B 58514C 58521D 67913 67914 9018905163 9018905163 9053006001 9053006001 9053006001 9356055020 9356055020
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-0W010B0

BU303,343,WU300,340,XZU342..IDN

DARK CHARCOAL,TRIM1#

 1
58514C - MAT, FROOR, REAR
58514-0W010B0

BU303,343,WU300,340,XZU342..IDN

DARK CHARCOAL,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-0W010B0

BU303,343,WU300,340,XZU342..IDN

DARK CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0W020B0

BU303,343,WU300,340,XZU342..IDN

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0W020B0

BU303,343,WU300,340,XZU342..IDN

MD.CHARCOAL,TRIM1#

 1
Common parts
90189-05163
90530-06001
93560-55020
