5252 - FRONT BUMPER & BUMPER STAY

BU303R-TKMLSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0209- )DCRTH,DCRTJ,DSL..IDN

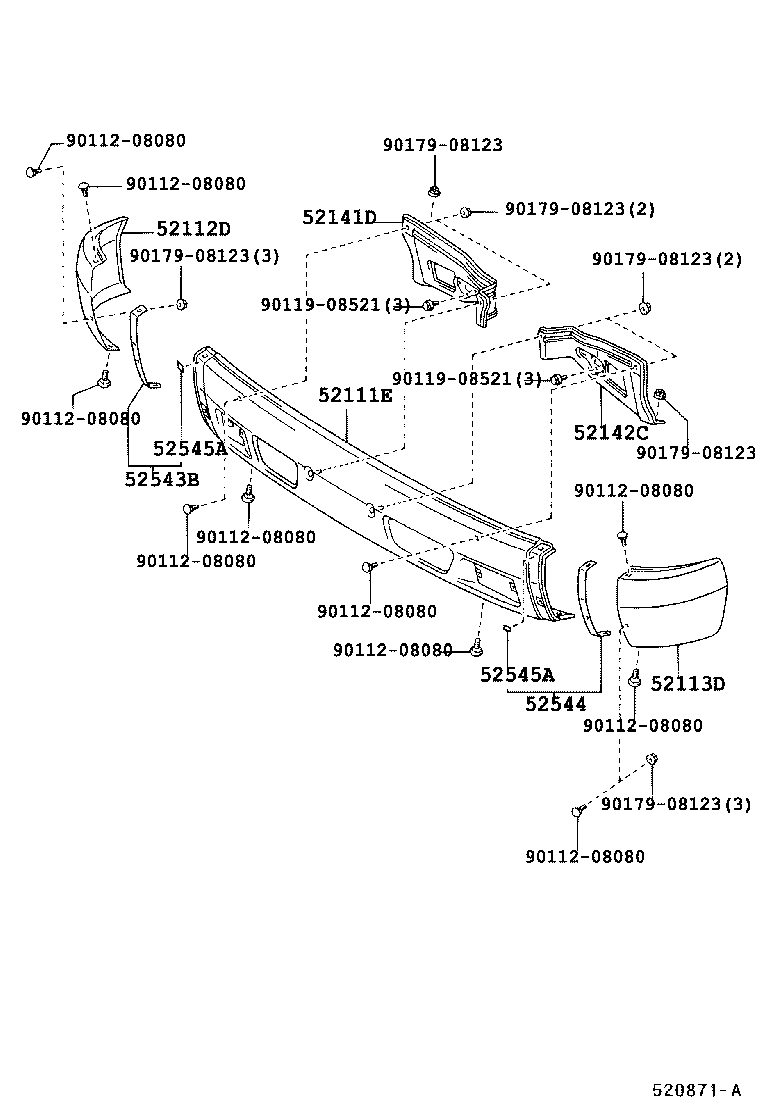

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
52111E - BAR, FRONT BUMPER
52111-37913	BU303,343,WU300,340,XZU342..IDN PAINT REQ.	09/2002 - 12/2006	1
52112D - EXTENSION, FRONT BUMPER, RH
52112-37900	BU303,343,WU300,340,XZU342..IDN PAINT REQ.	09/2002 - 12/2006	1
52113D - EXTENSION, FRONT BUMPER, LH
52113-37900	BU303,343,WU300,340,XZU342..IDN PAINT REQ.	09/2002 - 12/2006	1
52141D - STAY, FRONT BUMPER, RH
52141-37150	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
52142C - STAY, FRONT BUMPER, LH
52142-37130	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
52543B - SEAL, FRONT BUMPER
52543-0W010	BU303,343,WU300,340,XZU342..IDN	12/2002 - 12/2006	1
52543-0W010	BU303,343,WU300,340,XZU342	09/2002 - 12/2002	1
52544 - SEAL, FRONT BUMPER SIDE, LH
52543-0W010	BU303,343,WU300,340,XZU342	09/2002 - 12/2002	1
52544-0W010	BU303,343,WU300,340,XZU342..IDN	12/2002 - 12/2006	1
52545A - SEAL, FRONT BUMPER SIDE, NO.2
52545-0W010	BU303,343,WU300,340,XZU342..IDN	12/2002 - 12/2006	6
52545A - SEAL, FRONT BUMPER SIDE, NO.2
52545-0W010	BU303,343,WU300,340,XZU342..IDN	12/2002 - 12/2006	6
Common parts
90112-08080
90119-08521
90179-08123
