BU303R-TKMLSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )BU303,343,WU302..IDN..IV3

Click highlighted areas on diagram

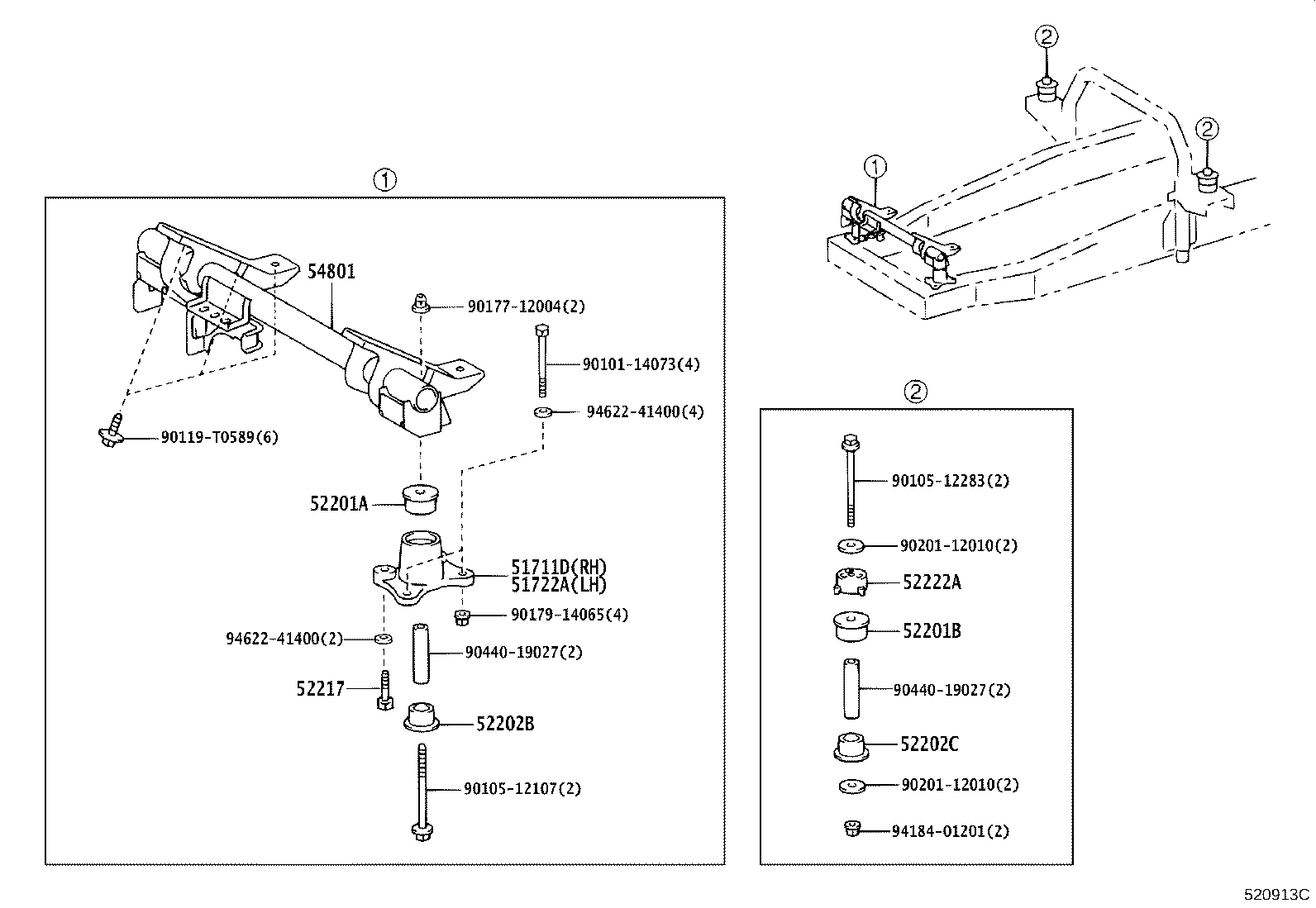

FIXED CAB

diagram 51711D 51722A 52201A 52201B 52202B 52202C 52217 52222A 54801 9010114073 9010512107 9010512283 90119T0589 9017712004 9017914065 9020112010 9020112010 9044019027 9044019027 9418401201 9462241400 9462241400
Part # Description Qty Price
51711D - BRACKET, CAB FRONT MOUNTING
51711-37240

BU303,343..IDN

 1
51711-0W020

BU303,343..IDN

 1
51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
51712-37240

BU303,343..IDN

 1
51712-0W020

BU303,343..IDN

 1
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-0W010

BU303,343..IDN

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-0W010

BU303,343..IDN

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-0W010

BU303,343..IDN

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-0W010

BU303,343..IDN

 2
52217 - BOLT, BODY MOUNTING
52217-37020

BU303,343,WU300,340,XZU342..IDN

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-0W020

BU303,343..IDN

 2
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-0W040

BU303,343..IDN

 1
Common parts
90101-14073
90105-12107
90105-12283
90119-T0589
90177-12004
90179-14065
90201-12010
90440-19027
94184-01201
94622-41400
