Toyota Dyna BU303 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
DYNA
BU303R-TKMLSD3 (2002)
4501 - STEERING COLUMN & SHAFT

BU303R-TKMLSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

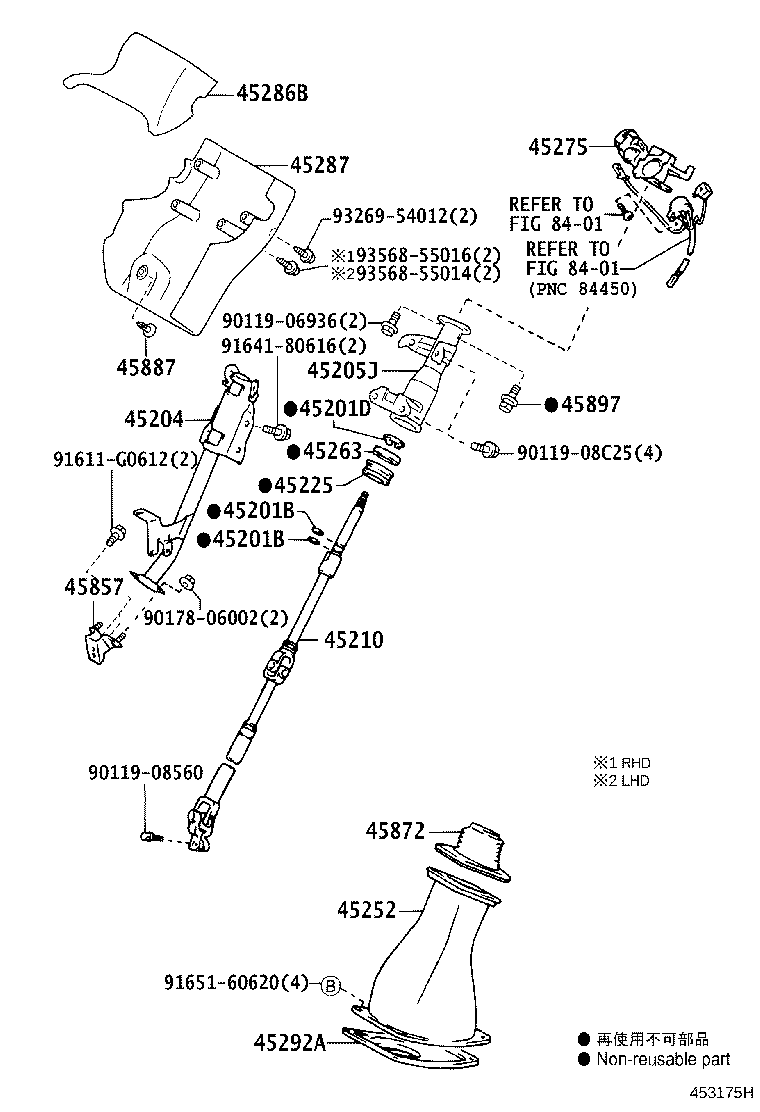

(0209-0311)BU303,343,WU300,340..IDN ; (0209-0407)GCC,GEN

Click highlighted areas on diagram

RIGID STEERING

Part #	Description	Period	Qty
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45201D - RING(FOR STEERING MAIN SHAFT)
90520-28065	BU303,343,WU300,340,XZU342..IDN	09/2002 - 11/2003	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-25130	BU303,343,WU300,340..IDN W(RIGID STEERING)	09/2002 - 11/2003	1
45205-37100	BU303,343,WU300,340..IDN	11/2003 - 12/2006	1
45210 - SHAFT ASSY, STEERING MAIN
45210-0W010	BU303,343,WU300,340..IDN	09/2002 - 11/2003	1
45210-0W011	BU303,343,WU300,340..IDN	11/2003 - 03/2006	1
45210-0W012	BU303,343,WU300,340..IDN	04/2006 - 12/2006	1
45225 - BLOCK, BEARING
45225-26010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 11/2003	1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37030B0	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45263 - RING, STEERING COLUMN, NO.1
45263-37010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 11/2003	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36230	BU303,343,WU300,340..IDN	09/2002 - 08/2003	1
45307-36230	BU303,343,WU300,340..IDN	10/2003 - 12/2006	1
45286B - COVER, STEERING COLUMN, UPR
45286-25160B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45287 - COVER, STEERING COLUMN, LWR
45287-25050B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37030	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45872 - COVER, STEERING COLUMN TUBE
45872-37010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45887 - CLIP, STEERING TELESCOPIC LEVER
90467-07041B8	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45897 - BOLT, STEERING LOCK SET
45897-25010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
Common parts
90119-06936
90119-08560
90119-08C25
90178-06002
91611-G0612
91641-80616
91651-60620
93269-54012
93568-55014
93568-55016
Linked diagrams
8401

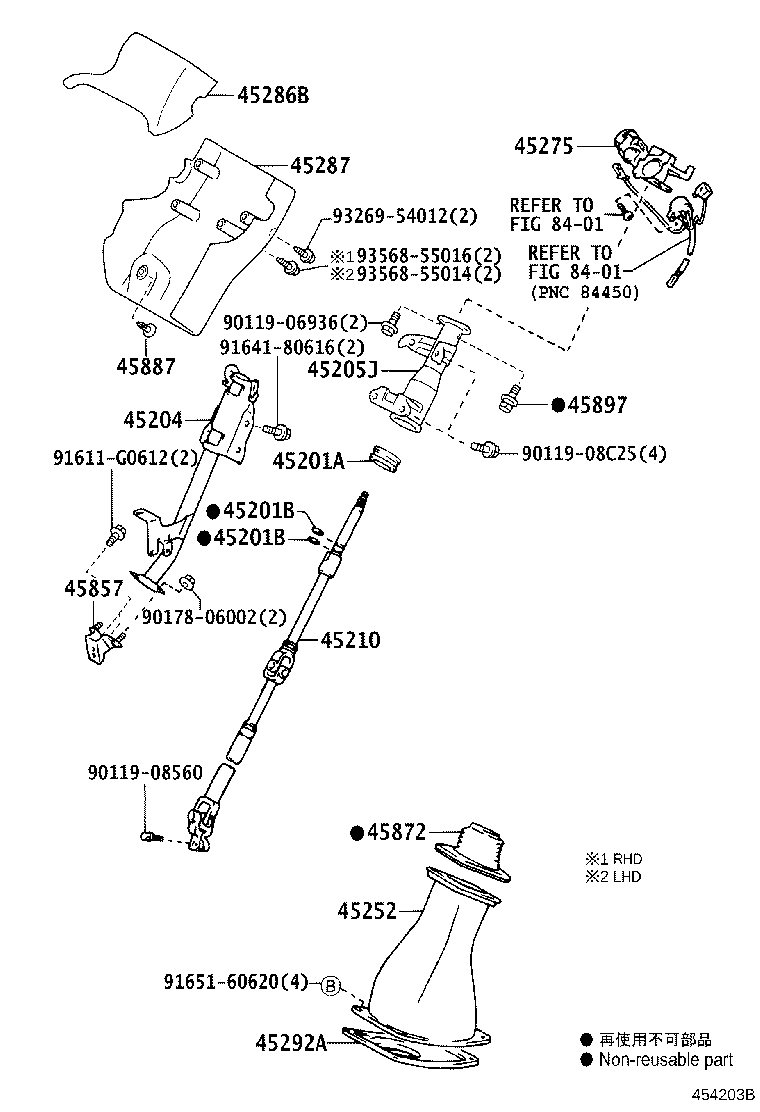

(0311-0612)BU303,343,WU300,340..IDN ; (0407-0610)GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-37020	BU303,343,WU300,340,XZU342..IDN	11/2003 - 12/2006	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-25130	BU303,343,WU300,340..IDN W(RIGID STEERING)	09/2002 - 11/2003	1
45205-37100	BU303,343,WU300,340..IDN	11/2003 - 12/2006	1
45210 - SHAFT ASSY, STEERING MAIN
45210-0W010	BU303,343,WU300,340..IDN	09/2002 - 11/2003	1
45210-0W011	BU303,343,WU300,340..IDN	11/2003 - 03/2006	1
45210-0W012	BU303,343,WU300,340..IDN	04/2006 - 12/2006	1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37030B0	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36230	BU303,343,WU300,340..IDN	09/2002 - 08/2003	1
45307-36230	BU303,343,WU300,340..IDN	10/2003 - 12/2006	1
45286B - COVER, STEERING COLUMN, UPR
45286-25160B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45287 - COVER, STEERING COLUMN, LWR
45287-25050B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37030	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45872 - COVER, STEERING COLUMN TUBE
45872-37010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45887 - CLIP, STEERING TELESCOPIC LEVER
90467-07041B8	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45897 - BOLT, STEERING LOCK SET
45897-25010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
Common parts
90119-06936
90119-08560
90119-08C25
90178-06002
91611-G0612
91641-80616
91651-60620
93269-54012
93568-55014
93568-55016
Linked diagrams
8401

(0610- )GCC,GEN,TAIW ; (0802- )RHD..DCRTP,DCRTR,DSL..IV3,IV8

Click highlighted areas on diagram

TILT & TELESCOPIC STEERING

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-37020	BU303,343,WU300,340,XZU342..IDN	11/2003 - 12/2006	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BU303,343,WU300,340,XZU342..IDN T=1.20	09/2002 - 12/2006	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-25130	BU303,343,WU300,340..IDN W(RIGID STEERING)	09/2002 - 11/2003	1
45205-37100	BU303,343,WU300,340..IDN	11/2003 - 12/2006	1
45210 - SHAFT ASSY, STEERING MAIN
45210-0W010	BU303,343,WU300,340..IDN	09/2002 - 11/2003	1
45210-0W011	BU303,343,WU300,340..IDN	11/2003 - 03/2006	1
45210-0W012	BU303,343,WU300,340..IDN	04/2006 - 12/2006	1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37030B0	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45286B - COVER, STEERING COLUMN, UPR
45286-25160B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45287 - COVER, STEERING COLUMN, LWR
45287-25050B0	BU303,343,WU300,340..IDN W(RIGID STEERING),MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37030	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-0W010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45872 - COVER, STEERING COLUMN TUBE
45872-37010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
45887 - CLIP, STEERING TELESCOPIC LEVER
90467-07041B8	BU303,343,WU300,340,XZU342..IDN MD.CHARCOAL,TRIM1#	09/2002 - 12/2006	1
45897 - BOLT, STEERING LOCK SET
45897-25010	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
Common parts
90119-06936
90119-06939
90119-08560
90119-08C25
90178-06002
90506-18082
91121-40665
91611-G0612
91621-40608
91621-60614
91641-80616
91651-60620
93269-54012
93568-55014
93568-55016
94130-60600
94531-00600
94613-10601
Linked diagrams
8401

BU303R-TKMLSD3 (2002)

(0209-0311)BU303,343,WU300,340..IDN ; (0209-0407)GCC,GEN

(0311-0612)BU303,343,WU300,340..IDN ; (0407-0610)GCC,GEN

(0610- )GCC,GEN,TAIW ; (0802- )RHD..DCRTP,DCRTR,DSL..IV3,IV8
