BU303R-TKMLSD3 (2002)
Toyota Dyna
Production
Sep 2002
-
Dec 2006
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )14B..IDN

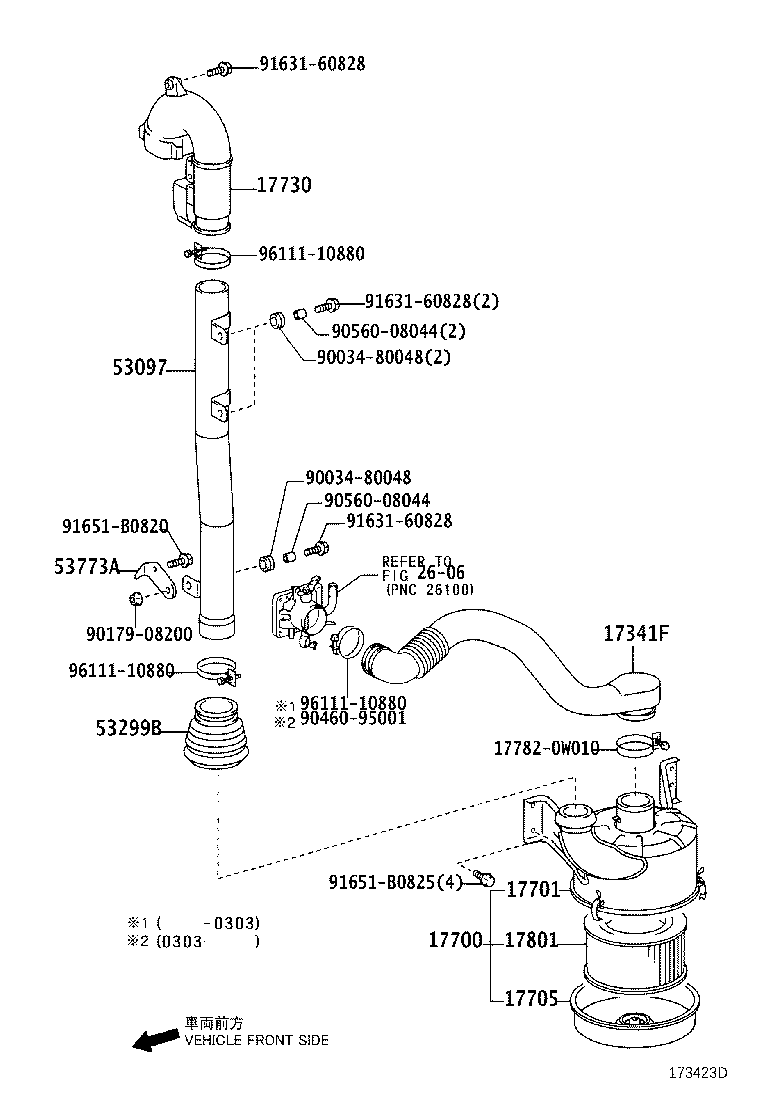

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78130 |
14B..BU303,343..IDN |
1 | ||
| 17030-78131 |
14B..BU303,343..IDN |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0W041 |
14B..BU303,343 |
1 | ||
| 17700-0W042 |
14B..BU303,343..IDN |
1 | ||
| 17700-0W043 |
14B..BU303,343..IDN |
1 | ||
| 17700-0W044 |
14B..BU303,343..IDN |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0W033 |
14B..BU303,343..IDN |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0W041 |
14B..BU303,343..IDN |
1 | ||
| 17705-0W040 |
14B..BU303,343 |
1 | ||
| 17705-0W041 |
14B..BU303,343..IDN |
1 | ||
| 17705-0W042 |
14B..BU303,343..IDN |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
14B..BU303,343..IDN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0W020 |
14B..BU303,343..IDN |
1 | ||
| 17801-0W020 |
14B..BU303,343..IDN |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-0W010 |
BU303,343..IDN |
1 | ||
| 53097-0W011 |
BU303,343..IDN |
1 | ||
| 53097-0W012 |
BU303,343..IDN |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU303,343..IDN |
1 | ||
| 53773A - BRACKET, AIR CLEANER MOUNTING | ||||
| 53773-0W010 |
BU303,343..IDN |
1 | ||
| Common parts | ||||
| 17782-0W010 | ||||
| 90034-80048 | ||||
| 90179-08200 | ||||
| 90460-95001 | ||||
| 90560-08044 | ||||
| 91631-60828 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 2606 | ||||
