BU303R-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )BU30#,34#,WU300,340,XZU305,342,345..RHD

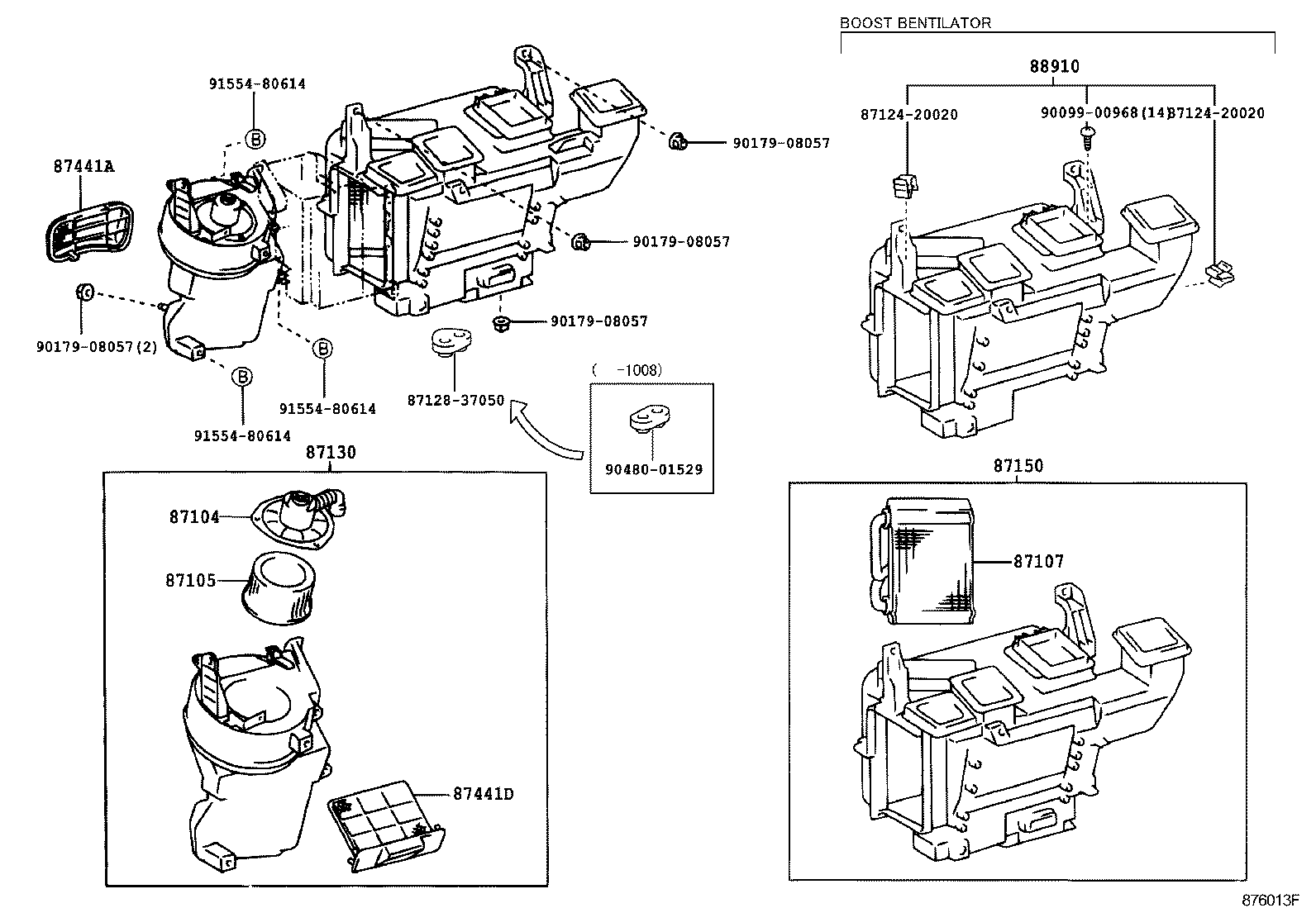

Click highlighted areas on diagram

diagram 87104 87105 87107 8712420020 8712420020 8712837050 87130 87150 87441A 87441D 88910 9009900968 9017908057 9017908057 9017908057 9017908057 9048001529 9155480614 9155480614 9155480614
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040

BU30#,34#,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37100

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87150 - RADIATOR ASSY, HEATER
87150-25010

BU30#,34#,WU300,340..RHD..(ARL,GEN,SA)

 1
87150-37190

BU30#,34#,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)

 1
87441A - FILTER, HEATER AIR
87441-37010

BU303,343,XZU305,345..RHD..(ARL,GEN)

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37031

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
88910 - VENTILATOR ASSY, BOOST
88910-37050

BU303,343..RHD..GEN

 1
Common parts
87124-20020
87128-37050
90099-00968
90179-08057
90480-01529
91554-80614
