8716 - HEATING & AIR CONDITIONING - WATER PIPING

BU303R-TBMLS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0212-0610)BU30#,34#..RHD..ARL,GEN

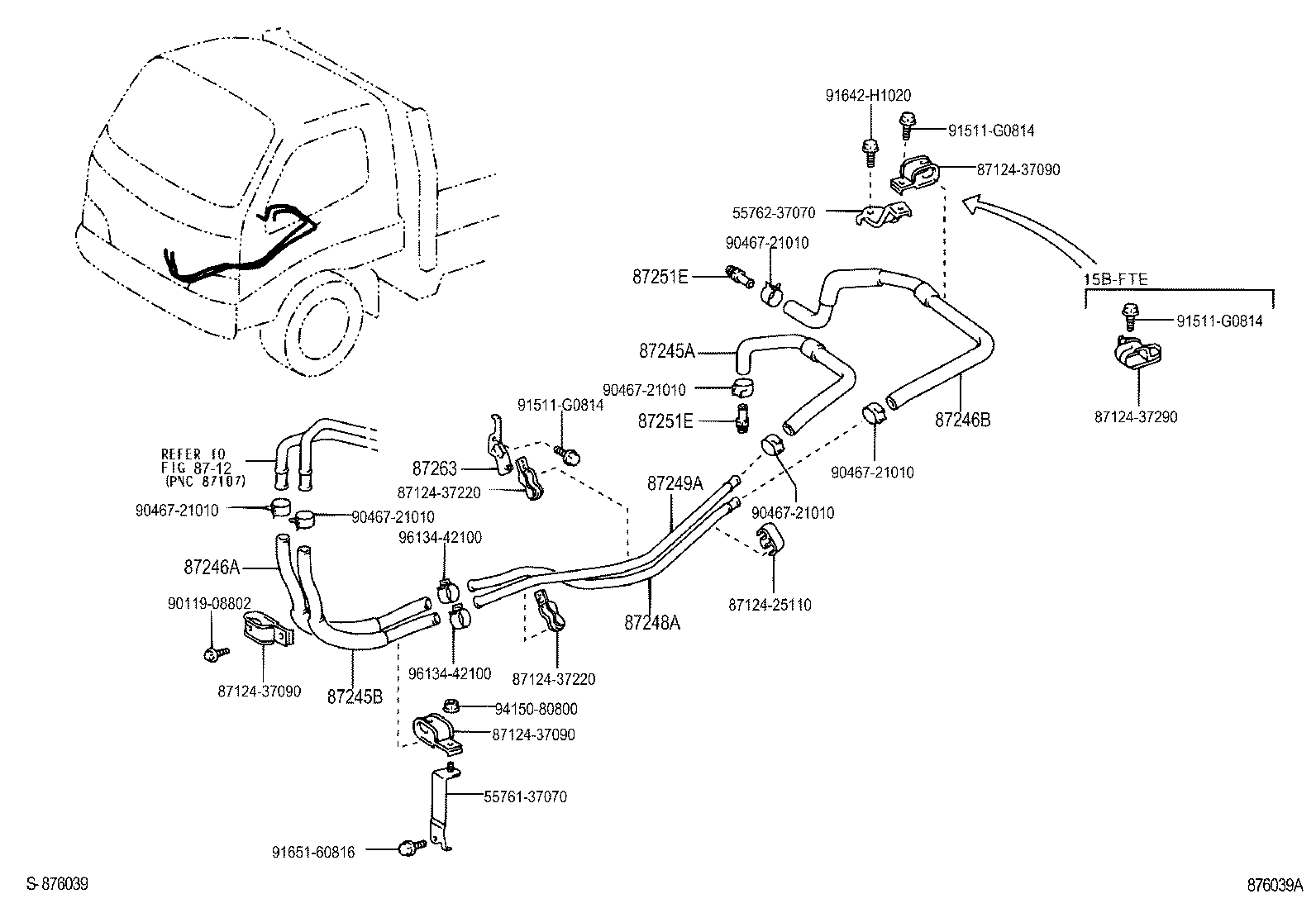

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87245A - HOSE, HEATER WATER, INLET A
87246-37310	BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW	12/2002 - 10/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V510	BU30#,34#..RHD..(ARL,GEN) L=610	12/2002 - 10/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V500	BU30#,34#..RHD..(ARL,GEN) L=630	12/2002 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3V361	BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW	12/2002 - 10/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37490	BU303,343..RHD..GEN NO.2	07/2006 - 08/2006	1
87248-37481	BU303,343..RHD..GEN NO.1	08/2006 - 10/2006	1
87248-37490	BU30#,34#..RHD..(ARL,GEN)	12/2002 - 07/2006	1
87248-37491	BU303,343..RHD..GEN NO.2	08/2006 - 10/2006	1
87248-37480	BU303,343..RHD..GEN NO.1	07/2006 - 08/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37480	BU30#,34#..RHD..(ARL,GEN)	12/2002 - 07/2006	1
87251E - JOINT, WATER, NO.2
87251-30200	BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW	12/2002 - 10/2006	2
87251E - JOINT, WATER, NO.2
87251-30200	BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW	12/2002 - 10/2006	2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37150	BU303,343..RHD..GEN	07/2006 - 10/2006	1
87263-37090	BU30#,34#..RHD..(ARL,GEN)	12/2002 - 06/2006	1
Common parts
55761-37070
55762-37070
87124-25110
87124-37090
87124-37220
87124-37290
90119-08802
90467-21010
91511-G0814
91642-H1020
91651-60816
94150-80800
96134-42100
Linked diagrams
8712
