BU303R-TBMLS (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )BU343,WU30#,34#..GCC,GEN,SA ; (0212-)BU30#,340,XZU30#,32#,33#,340,34

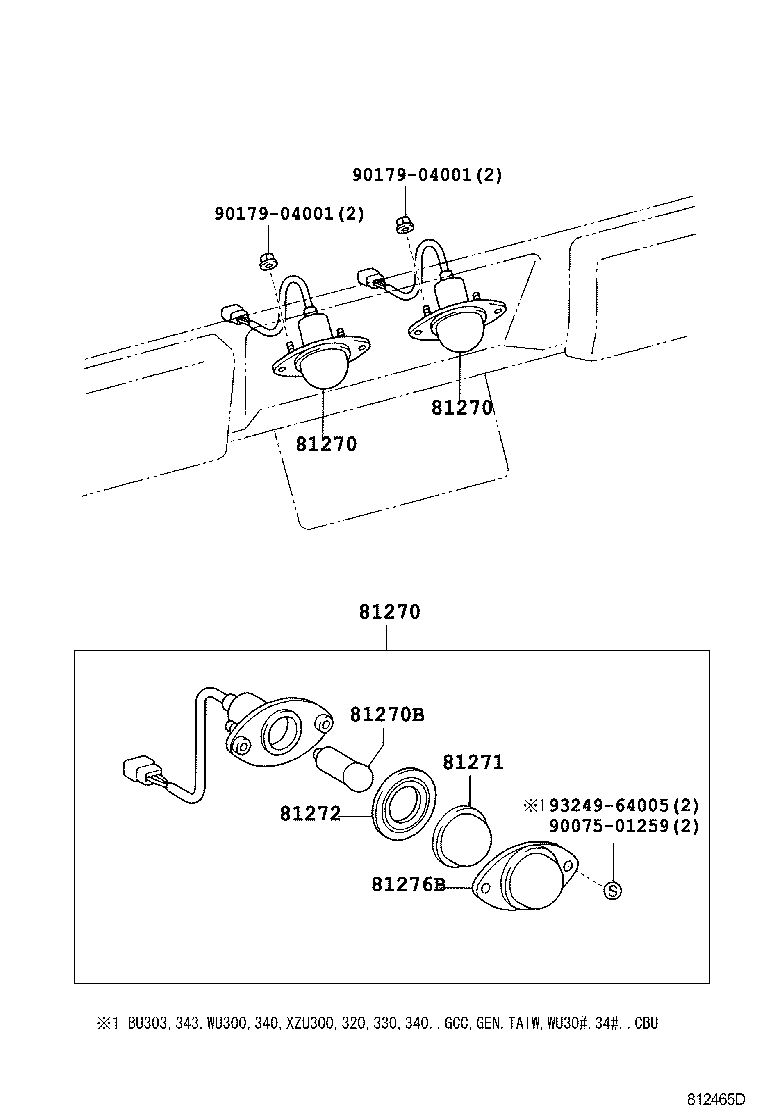

Click highlighted areas on diagram

diagram 81270 81270 81270 81270B 81271 81272 81276B 9007501259 9017904001 9017904001 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-37010

BU303,343,WU300,340..CBU

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37010

BU303,343,WU300,340..CBU

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37010

BU303,343,WU300,340..CBU

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99134-11120

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

24V 12W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
81276B - COVER, LICENSE PLATE LAMP
81276-95016

BU303,343,WU300,340..CBU

 2
Common parts
90075-01259
90179-04001
93249-64005
